In AIoT era, system integrators need a high performance and high scalable embedded computer to play an important processing and control role. Cincoze offers the DS-1300 for deployment in industrial automation, factory automation and applications requiring high computing power in harsh environments.

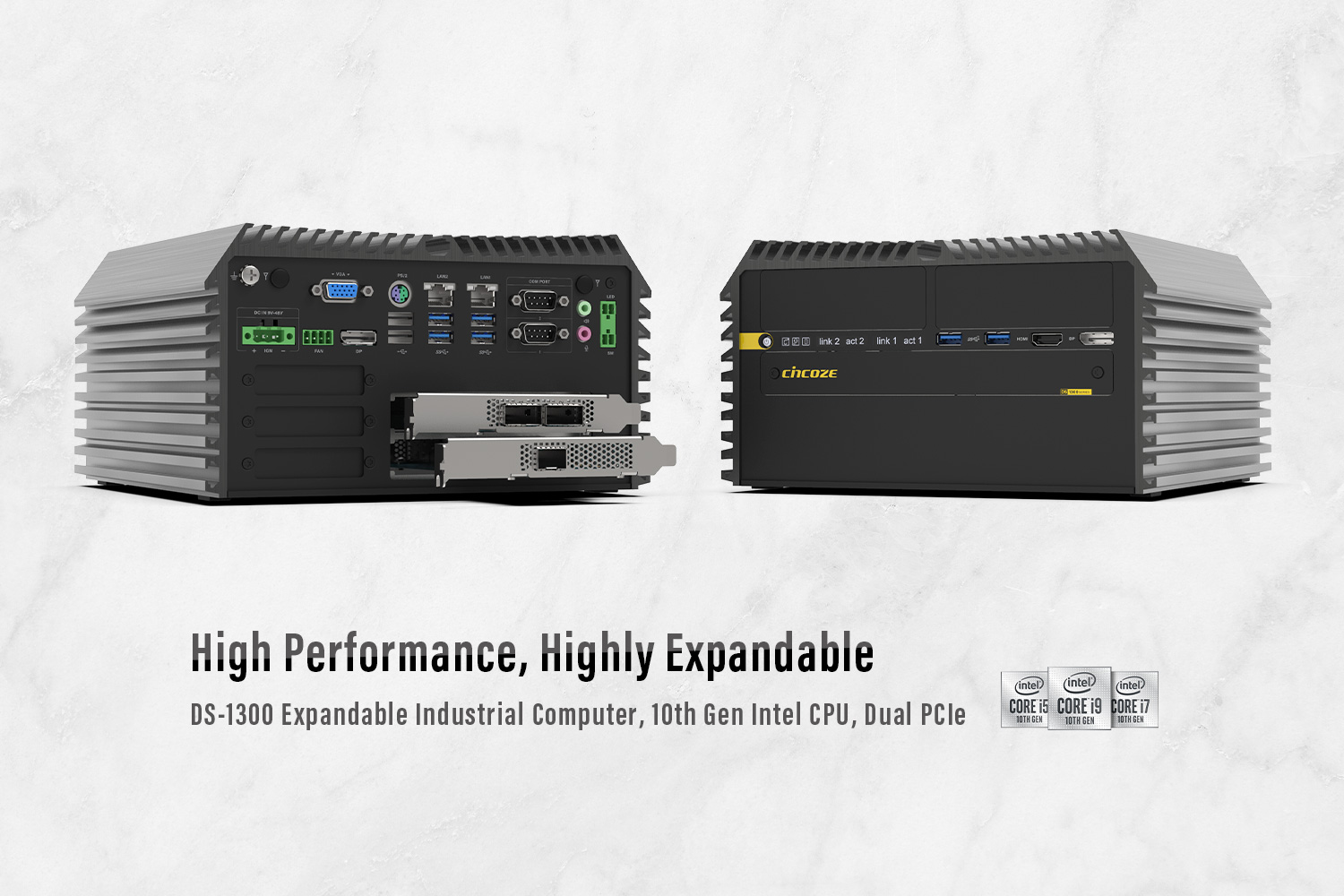

Powered by 10-core 10th-gen Intel® Xeon® or Core™ CPU, the DS-1300 is a high-performance, rugged embedded computer, supporting up to 2x PCI/PCIe slots (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications. In order to strengthen the stability of the expansion card, Cincoze's patented "Adjustable PCIe Retainer" utilizes a two-stage precision adjustment mechanism that can be tightly adjusted and strengthened according to the size of the external card (up to 235 x 111 mm), providing reliable support under high-vibration environments, and maintaining safe and reliable continuous operation at the site.
10-Core, Up To 80 W CPU
The DS-1300 series, powered by a workstation-grade 10th-gen Intel® Xeon® or Core™ i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 supports Xeon® CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.
More Powerful & Faster. Multiplies Productivity
The DS-1300 series's 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs. DDR4 2933 MHz memory further increases speed by 10%.
Industrial I/O and Modular Expansion
The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.
PCI/PCIe Add-on Cards
DS-1302 can accommodate dual PCI/PCIe add-on cards up to 111 mm x 235 mm (combined max 110 W). Flexible PCI/PCIe expansion allows the addition of I/O, GPU, image capture, data acquisition, and motion control cards for specific applications.
Adjustable PCIe Card Retainer
The PCI/PCIe expansion slots include two adjustable card retainers that firmly secure the PCI/PCIe add-on cards. The retainer is a cool feature that provides the extra protection needed to prevent add-on cards from shaking loose in high-vibration environments like rolling stock.
Rugged Reliability Against Rigorous Environments
The DS-1300 series's fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.
