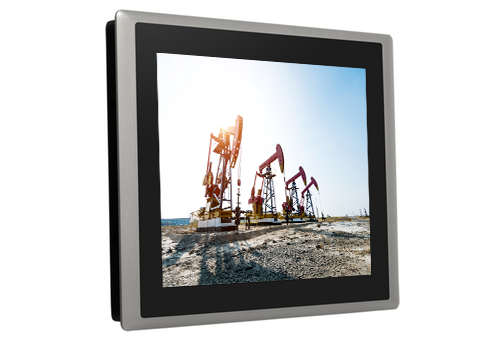

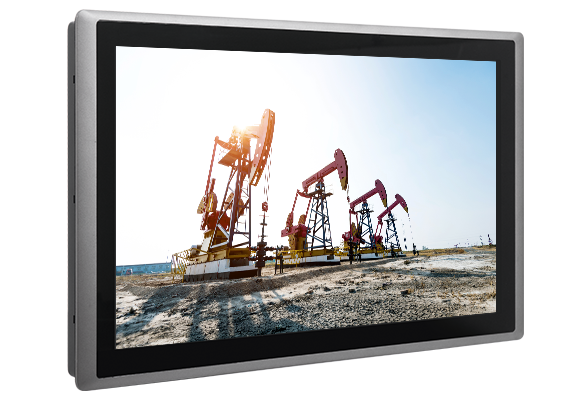

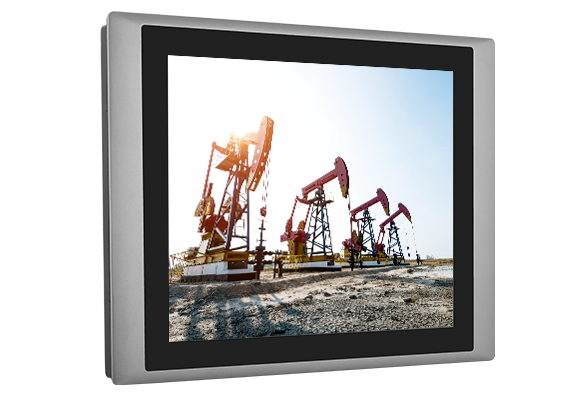

高效阳光下可视工业平板电脑 (CS-100/P2000系列)

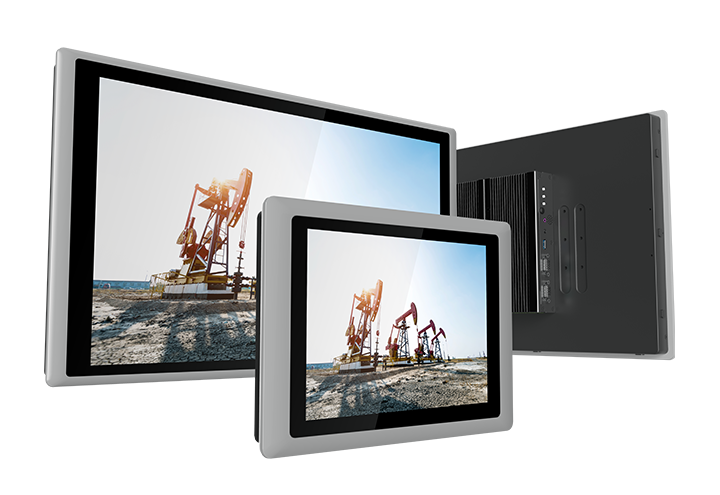

德承CS-100/P2000系列是一体化的高效能阳光下可视工业平板电脑，屏幕尺寸从12寸至24寸多种选择，并带有投影式电容触摸屏，采用15W低功耗Intel® Core™移动式处理器，亮度可达1800 nits，是一个坚固可靠的工业平板电脑解决方案，适用于阳光下或户外工业应用。
| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
 | CS-112H / P2202 Series | 12.1" TFT 1024x768 (4:3) 1,500 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-112H / P2102 Series | 12.1" TFT 1024x768 (4:3) 1,500 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-112H / P2002 Series | 12.1" TFT 1024x768 (4:3) 1500 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-115 / P2202 Series | 15" TFT 1024x768 (4:3) 1,800 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-115 / P2102 Series | 15" TFT 1024x768 (4:3) 1,800 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-115 / P2002 Series | 15" TFT 1024x768 (4:3) 1800 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-117 / P2202 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-117 / P2102 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-117 / P2002 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-119 / P2202 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-119 / P2102 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-119 / P2002 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-W121 / P2202 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-W121 / P2102 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-W121 / P2002 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-W124 / P2202 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | 1x VGA 1x DisplayPort 1x HDMI 2x GbE LAN 4x USB 4x COM 16x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module |
 | CS-W124 / P2102 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Core™ i5-8365UE Intel® Core™ i3-8145UE | 1x VGA 1x DisplayPort 2x GbE LAN 5x USB 4x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module |
 | CS-W124 / P2002 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Core™ i5-6300U Intel® Core™ i3-6100U | 1x VGA 1x DVI-D 2x GbE LAN 5x USB 6x COM 16x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
