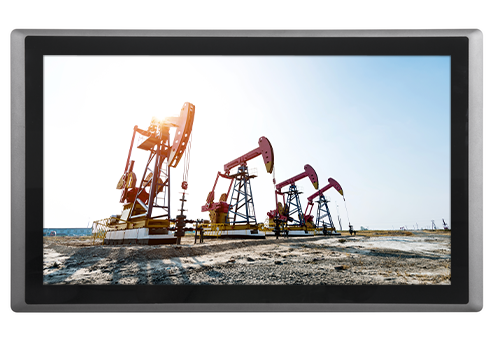

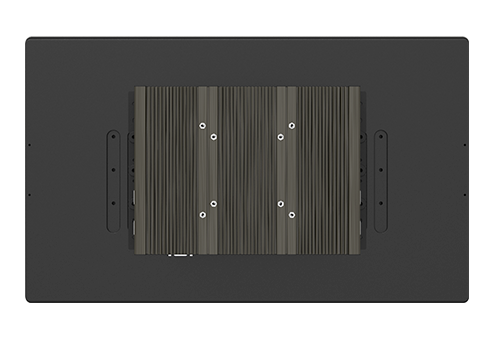

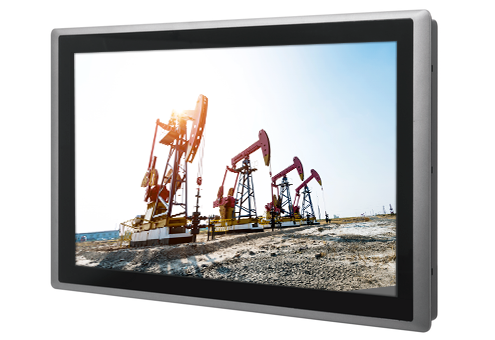

CS-W121 / P2202 Series

21.5 寸 TFT-LCD 高效阳光下可视工业平板电脑，搭载第 12 代 Intel® Core™ 处理器

产品特点

21.5 寸 TFT-LCD，带有投影电容触控屏
内置 Intel® Alder Lake-P U 系列 Core™ 处理器
2 个 DDR5 SO-DIMM 插槽，最高支持 4800MHz 64GB 内存
亮度高达 1,000 nits
四独立显示（CDS / HDMI / DP / VGA）
1 个 M.2 Key E Type 2230 插槽，适用于 Intel CNVi / 无线模块
采用铝合金压铸前面板设计
前面板符合 IP65 防护等级

产品介绍
详细规格
订购信息
相关下载

产品介绍

High-Performance Sunlight Readable Panel PC (CS-100/P2000 Series)

CS-100/P2202 系列是一款阳光下可视高效能工业平板电脑，提供高达 1,800 nits 超高亮度，搭载 Intel® Alder Lake-P U 系列 Core® 处理器，在屏幕尺寸、比例、亮度上提供非常完整的选择。丰富 I/O、弹性扩充、强固、易于现场维护等特性都使 CS-100/P2202 系列成为户外自助服务终端或是 HMI 应用的优选。

Product Category >>>> Modular Panel PC & Industrial Monitor

高运算效能

——

CS-100/P2202 系列搭载 Intel® 7 制程的第 12 代 Core™ i5/i3 U 系列（Alder Lake-P）处理器，除了 15W 低功耗的优势外，还具有高达 10 核心 (2P+8E) 的出色效能，内置 Intel Iris Xe 显示芯片，可轻松驾驭 AI 深度学习中所需的图像运算效能。

CDS 专利技术

——

通过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需置换单一组件即可，大幅节省企业升级成本。

Patent No. M482908

尺寸齐全完整

——

CS-100/P2202 系列提供多种屏幕尺寸，包含 12 至 24 寸，支持 Full HD 分辨率，拥有高达 1,800 nits 高亮度背光显示，并具备多点投射式电容触控功能，可针对应用需求进行选择。

宽温、安全、更可靠

——

为克服严苛的户外环境与不可控的气候因素，CS-100/P2202 系列必须具备一系列的工业级防护，除了提供优于业界的宽工作温度范围（-20°C 至 70°C）外、IP65 前面板防尘/防水等，以确保产品的高度安全性。

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CS-W121

Model Name		CS-W121
Display	LCD Size	21.5” (16:9)
	Max. Resolution	1920x1080 (Full HD)
	Brightness (cd/m2)	1,000
	Contrast Ratio	5000 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.24825 (H) x 0.24825 (V)
	Viewing Angle (H-V)	178 / 178
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Projected Capacitive
Physical	Dimension (W x D x H)	550 x 330.5 x 63.2mm
	Weight Information	5.56 kg
	Mechanical Construction	Rugged Aluminum Die-casting Front Bezel
Power	Power Consumption	31.25W (Max.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	0°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	-20°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P2202 Series

Model Name		P2202	P2202E
System	Processor	• Onboard 12th Generation Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
	Memory	• 2x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 64GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE
	Maximum Display Output	• Supports Quad Independent Display
	CDS	• 1x CDS Connector (1920 x 1080 @60Hz)
	DP	• 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
	HDMI	• 1x HDMI Connector (3840 x 2160 @30Hz)
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 2x 1GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210
	COM	• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	• 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
	DIO	• 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” SATA HDD/SSD Bay (SATA3.0)
Storage	RAID	Support RAID 0/1
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	PCI Express	--	1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
	SIM Socket	• 1x SIM Socket
	M.2	• 1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
	CFM (Control Function Module) Interface	• 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion
	CDS (Convertible Display System) Interface	• 1x CDS Interface for Convertible Display Module
Other Function	Clear CMOS Switch	• 1x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	OSD Button	• LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	• AMP 2W + 2W
	Status LED Indicator	• Power LED, HDD LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
Operating Stystem	Windows	Windows®11, Windows®10
Operating Stystem	Linux	Ubuntu 22.04
Physical	Dimension ( W x D x H )	• 254.5 x 190 x 41.5 mm	• 254.5 x 190 x 61 mm
	Weight Information	• 2.22 kg	• 2.74 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS / DIN Rail
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	• -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• 95%RH @ 70°C (non-Condensing)
	Shock	• Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC/EN 62368-1

订购信息

Available Models
Model No.	Product Description
CS-W121C-R10/P2202-i5-R10	21.5" TFT-LCD 1000 nits Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CS-W121C-R10/P2202E-i5-R10	21.5" TFT-LCD 1000 nits Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch
CS-W121C-R10/P2202-i3-R10	21.5" TFT-LCD 1000 nits Full HD 16:9 Display Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch
CS-W121C-R10/P2202E-i3-R10	21.5" TFT-LCD 1000 nits Full HD 16:9 Display Modular and Expandable Panel PC with 12th Gen. Intel® Core™ i3-1215UE Processor and Projected Capacitive Touch

Model Configuration
	CS-W121C	P2202 (i3/i5)	P2202E (i3/i5)
CS-W121C/P2202	V	V	--
CS-W121C/P2202E	V	--	V

Package Checklist
• CS-W121/P2202 Series Panel PC x1	• Thermal Pad x1
• Power Terminal Block x1	• Screws Pack x5
• Remote Power On/Off Terminal Block Connector x1	• Panel Mounting Kit x1
• DIO Terminal Block Connector x2	• DIN Rail Mounting Kit x1
• PCI / PCIe Card Installation Kit x 1 (For P2202E Only)

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202 Only)
CFM-PoE05	CFM Module with PoE Control Function, Individual Port 25.5W (For P2202E Only)
RC-E4-02	Riser Card with 1x PCIe x4 Slot (For P2202E Only)
RC-PI-02	Riser Card with 1x PCI Slot (For P2202E Only)
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Ports, 1x Thin DB9 Cable (For P2202E Only)
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Ports, 2x Thin DB9 Cable (For P2202E Only)
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable (For P2202E Only)
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P2202E Only)
UB1203	1x Universal Bracket with 2x DB9 Cutout (For P2202E Only)
UB1211	1x Universal Bracket with 2x RJ45 Cutout (For P2202E Only)
UB1214	1x Universal Bracket with 2x USB Cutout (For P2202E Only)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN, wide temp (-30°C ~ +70°C), level VI
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI (For P2202E Only)
