服务支持

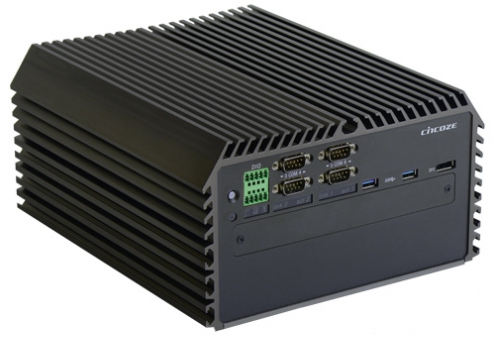

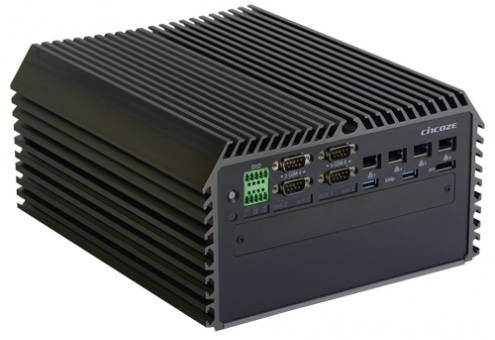

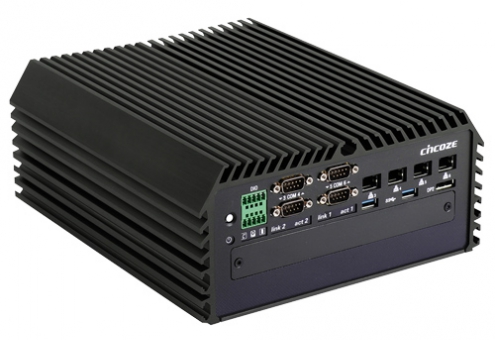

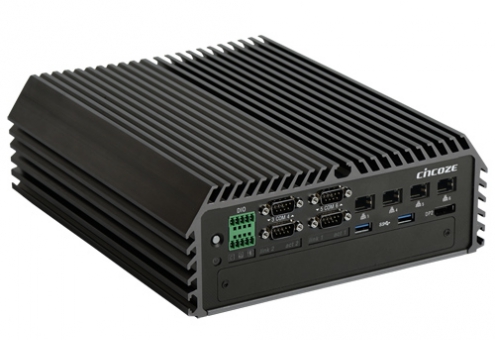

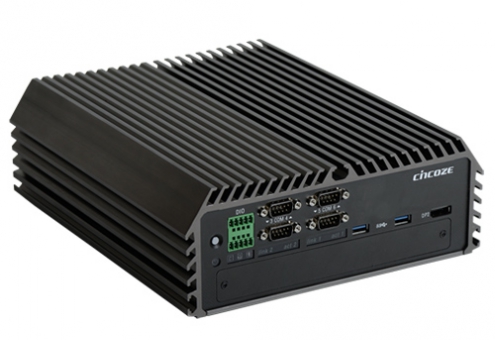

高阶性能 & PCIe 扩充型 (DS系列)

ProductModelCPUChipsetI/OExpansion
DS-1000DS-10004th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000LDS-1000L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1000PDS-1000P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DS-1001DS-10014th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001LDS-1001L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1001PDS-1001P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI / PCIe Slot
DS-1002DS-10024th Gen. Intel® Core i3 / i5 / i7Intel® Q872x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002LDS-1002L4th Gen. Intel® Core i3 / i5 / i7Intel® Q876x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot
DS-1002PDS-1002P4th Gen. Intel® Core i3 / i5 / i7Intel® Q874x PoE, 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI / PCIe Slot

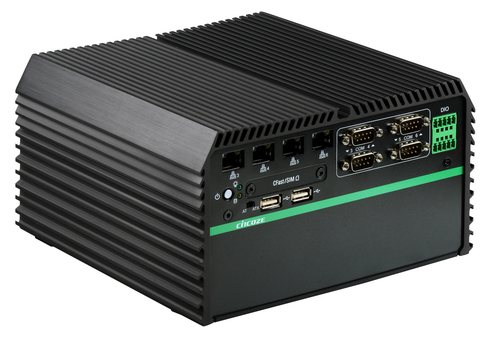

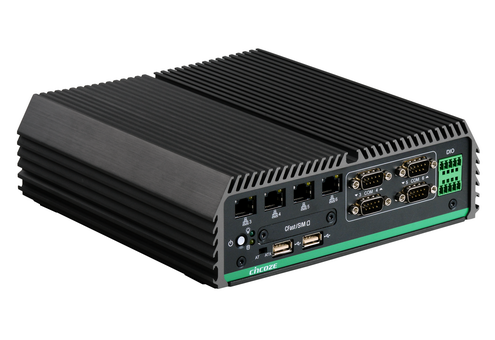

入门性能 & PCIe 扩充型 (DE系列)

ProductModelCPUI/OExpansion
DE-1000LDE-1000LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1000PDE-1000PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot
DE-1001LDE-1001LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1001PDE-1001PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 1x PCI/ PCIe Slot
DE-1002LDE-1002LIntel® Atom™ E38456x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot
DE-1002PDE-1002PIntel® Atom™ E38454x PoE, 2x LAN, 5x USB, 6x COM, 1x DVI-I, 1x DisplayPort, 4x DI/4x DO2x Mini-PCIe Slot, 2x PCI/ PCIe Slot

入门性能 & 标准型 (DC系列)

ProductModelCPUI/OExpansion
DC-1000DC-1000Intel® Atom™ D5252x LAN, 4x USB, 4x COM, 1x DVI-I, 4x DI/4x DO2x Mini-PCIe Slot

嵌入式 MXM GPU 模塊

ProductModel产品描述兼容型号

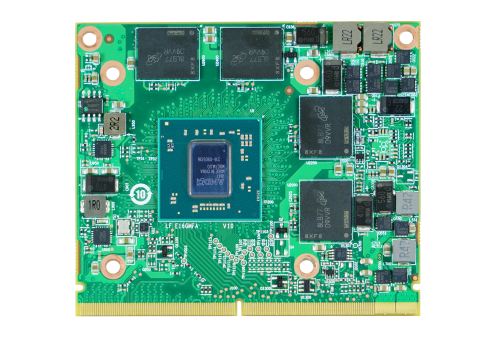

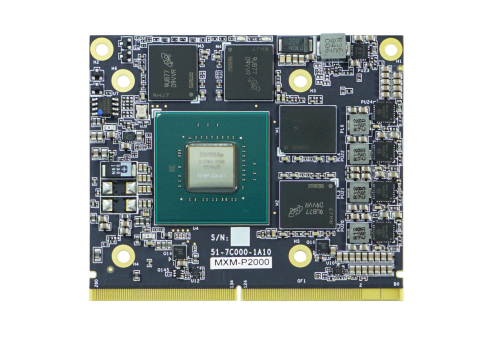

MXM-P2000MXM-P2000NVIDIA® Quadro® 嵌入式 P2000 MXM GPU 套件GM-1000
MXM-E9174MXM-E9174AMD Radeon™ 嵌入式 E9174 MXM GPU 套件GM-1000

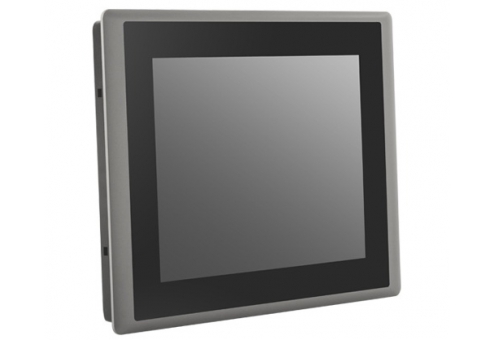

显示屏模块 (CV-100系列)

ProductModelLCD SizeBrightnessTouch TypeResolution
CV-112CV-11212.1" TFT-LCDResistive / Capacitive800x600 (SVGA) / 450 nitsN/A

显示器模块 (M1000系列)

ProductModelVideo InputI/OFeatures
M1001M10011x VGA, 1x DVI-D, 1x DisplayPort1x USB 2.0, 1x COM, 1x Audio Input2x 5W Internal Speaker with AMP, Multi-language OSD Function

阳光下可视模块 (CS-100系列)

ProductModelLCD SizeBrightnessTouch TypeResolution
CS-W115FHCCS-W115FHC15.6" TFT-LCD1500 nitsCapacitive1920x1080 (Full HD)

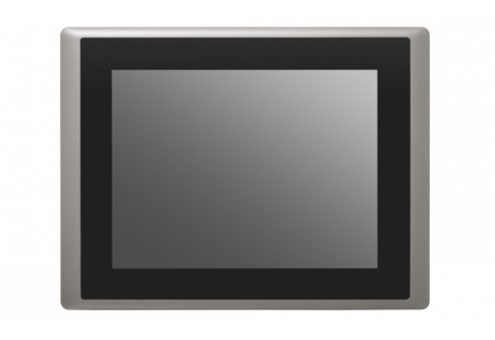

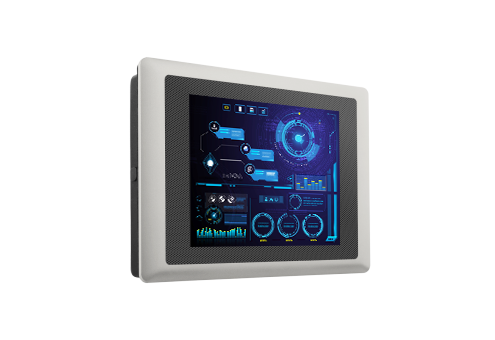

入门工业平板电脑 (CV-100/P1000系列)

ProductModelDisplayCPUI/OExpansion

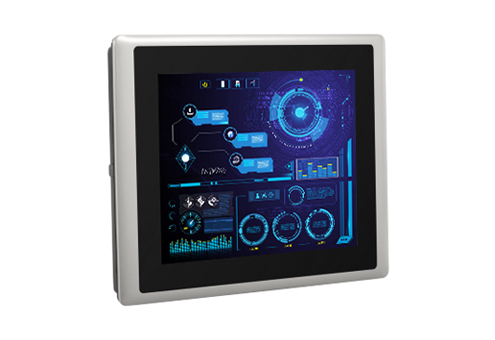

CV-112 / P1101CV-112 / P110112.1" TFT
800x600 (4:3)		Intel® Atom® x7-E3950
Intel® Pentium® N4200		1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CV-112 / P1001CV-112 / P100112.1" TFT
800x600 (4:3)		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe
CV-112 / P1001ECV-112 / P1001E12.1" TFT
800x600 (4:3)		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe, 2x Universal I/O Bracket

高效工业平板电脑 (CV-100/P2000系列)

ProductModelDisplayCPUI/OExpansion
CV-112 / P2102CV-112 / P210212.1" TFT 800x600 (4:3)Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-112 / P2102ECV-112 / P2102E12.1" TFT 800x600 (4:3)Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-112 / P2002CV-112 / P200212.1" TFT 800x600 (4:3)Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CV-112 / P2002ECV-112 / P2002E12.1" TFT 800x600 (4:3)Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN)

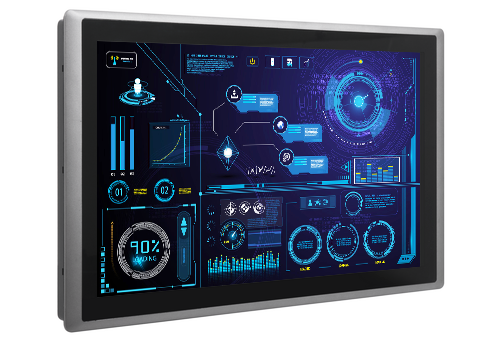

高效阳光下可视工业平板电脑 (CS-100/P2000系列)

ProductModelDisplayCPUI/OExpansion

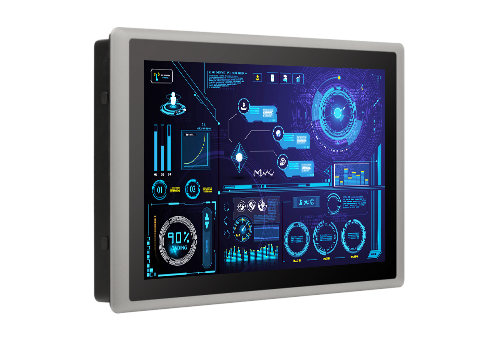

CS-W115FHC / P2102CS-W115FHC / P210215.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W115FHC / P2102ECS-W115FHC / P2102E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE		1x VGA, 1x DisplayPort, 2x GbE LAN, 5x USB , 4x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CS-W115FHC / P2002CS-W115FHC / P200215.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CS-W115FHC / P2002ECS-W115FHC / P2002E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Core™ i5-6300U
Intel® Core™ i3-6100U		1x VGA, 1x DVI-D, 2x GbE LAN, 5x USB , 6x COM, 16x DIO2x Full Size Mini-PCIe Socket, 1x PCI or 1x PCIex4 Socket, and Support CFM (PoE, IGN)

入门阳光下可视工业平板电脑 (CS-100/P1000系列)

ProductModelDisplayCPUI/OExpansion
CS-W115FHC / P1101CS-W115FHC / P110115.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom® x7-E3950
Intel® Pentium® N4200		1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
CS-W115FHC / P1001CS-W115FHC / P100115.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe
CS-W115FHC / P1001ECS-W115FHC / P1001E15.6" TFT
1920x1080 (16:9)
1500 nits		Intel® Atom™ E38452x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO1x Mini-PCIe, 2x Universal I/O Bracket

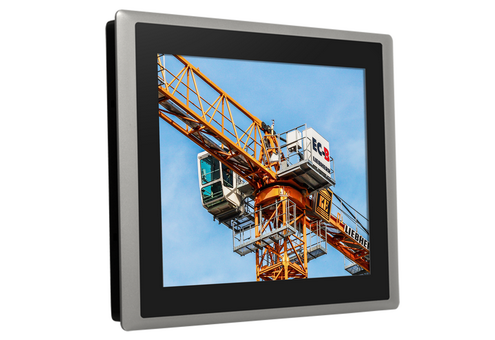

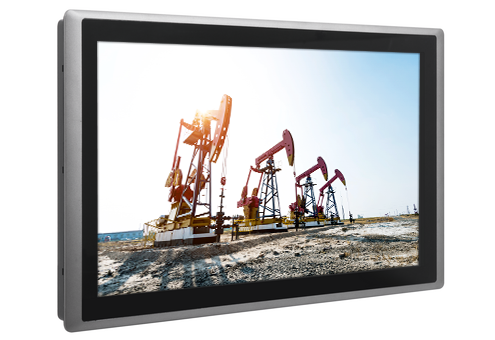

阳光下可视触控显示器 (CS-100/M1000系列)

ProductModelLCD SizeBrightnessTouch TypeResolution

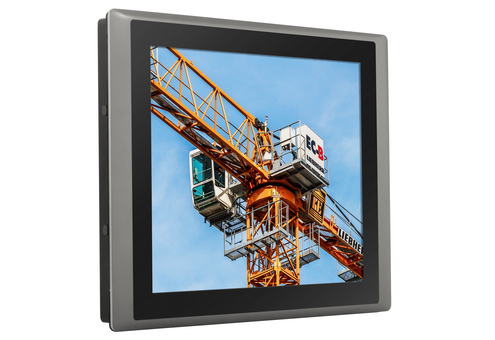

CS-108 / M1001CS-108 / M10018.4" TFT1600 nitsCapacitive800x600 (SVGA)
CS-110H / M1001CS-110H / M100110.4" TFT1500 nitsCapacitive1024x768 (XGA)
CS-112H / M1001CS-112H / M100112.1" TFT1500 nitsCapacitive1024x768 (XGA)
CS-115 / M1001CS-115 / M100115" TFT1800 nitsCapacitive1024x768 (XGA)

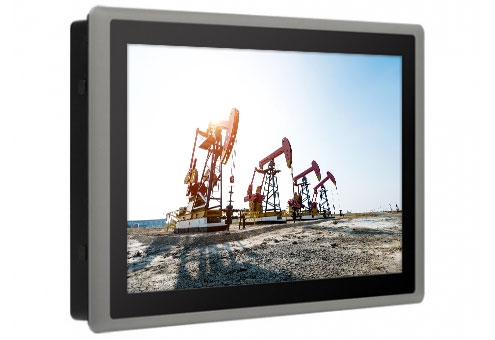

CS-W115FHC / M1001CS-W115FHC / M100115.6" TFT1500 nitsCapacitive1920x1080 (Full HD)
CS-117 / M1001CS-117 / M100117" TFT1500 nitsCapacitive1280x1024 (SXGA)
CS-119 / M1001CS-119 / M100119" TFT1600 nitsCapacitive1280x1024 (SXGA)
CS-W121C / M1001CS-W121C / M100121.5" TFT1000 nitsCapacitive1920x1080 (Full HD)
CS-W124C / M1001CS-W124C / M100124" TFT1500 nitsCapacitive1920x1080 (Full HD)

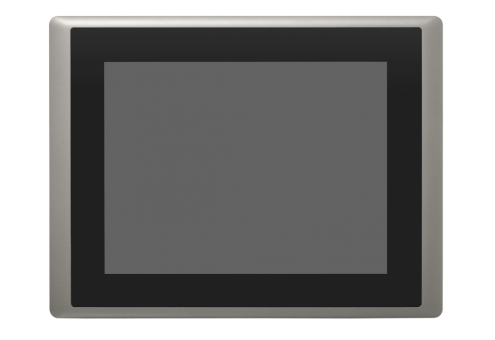

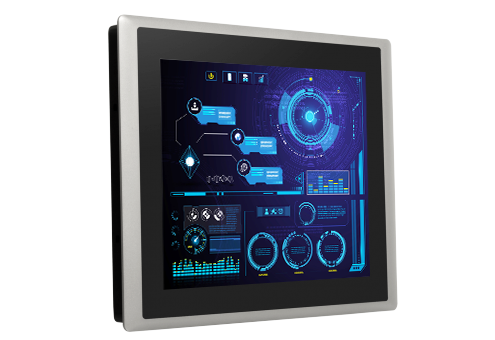

工业触控显示器 (CV-100/M1000系列)

ProductModelLCD SizeTouch TypeResolution / BrightnessI/O

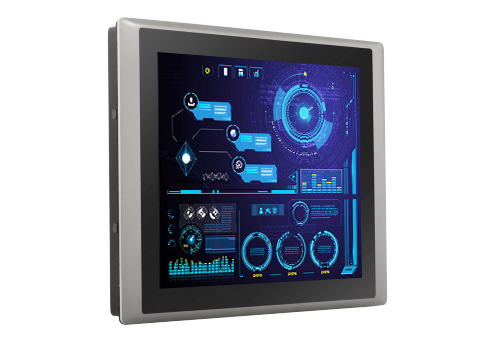

CV-108 / M1001CV-108 / M10018.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-110 / M1001CV-110 / M100110.4" TFTResistive / Capacitive800x600 (SVGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-110H / M1001CV-110H / M100110.4" TFTResistive / Capacitive1024x768 (XGA) / 400 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-112 / M1001CV-112 / M100112.1" TFTResistive / Capacitive800x600 (SVGA) / 450 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-112H / M1001CV-112H / M100112.1" TFTResistive / Capacitive1024x768 (XGA) / 500 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-115 / M1001CV-115 / M100115" TFTResistive / Capacitive1024x768 (XGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W115 / M1001CV-W115 / M100115.6" TFTResistive / Capacitive1366x768 (WXGA) / 400 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-117 / M1001CV-117 / M100117" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-119 / M1001CV-119 / M100119" TFTResistive / Capacitive / without Touch1280x1024 (SXGA) / 350 nits1x USB, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W121 / M1001CV-W121 / M100121.5"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
CV-W124 / M1001CV-W124 / M100124"TFT-LCDResistive / Capacitive / without Touch1920x1080 (Full HD) / 300 nits1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio

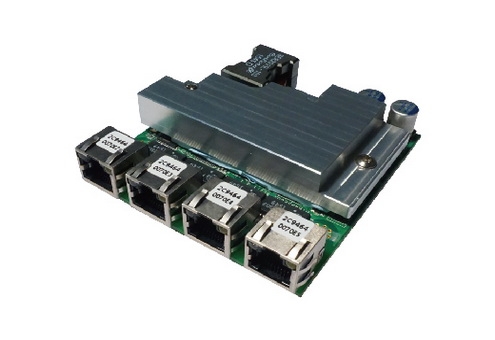

CMI 模块

ProductModelCategoryDescriptionConnectorCompatible Model

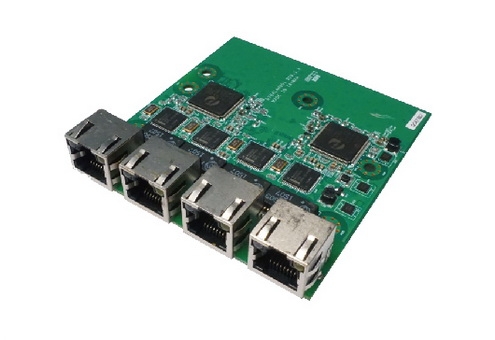

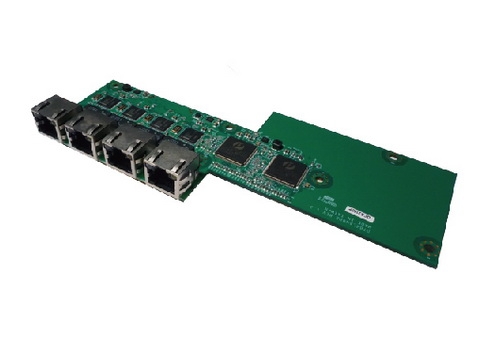

CMI-LAN104CMI-LAN104LANCMI Module with 4x Intel GbE LAN, RJ45 Port4x RJ45DI-1000
DS-1000
DS-1001
DS-1002
DS-1100
DS-1101
DS-1102
CMI-LAN204CMI-LAN204LANCMI Module with 4x Intel GbE LAN, RJ45 Port4x RJ45DE-1000
DE-1001
DE-1002

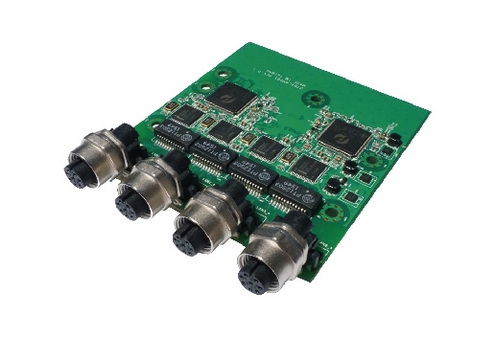

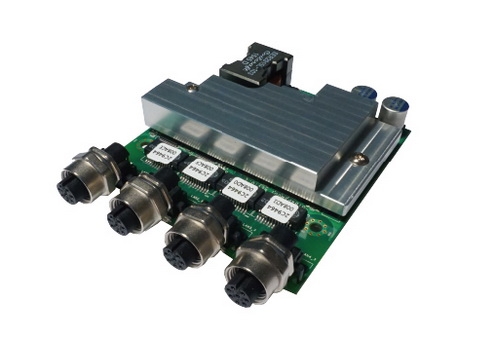

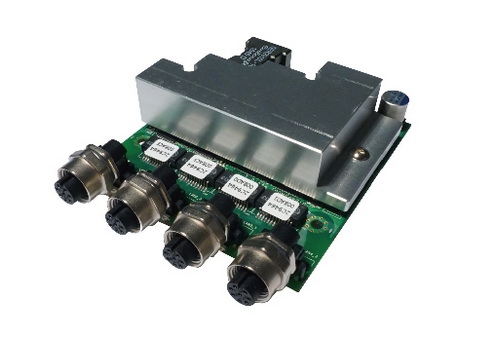

CMI-M12LAN104CMI-M12LAN104LANCMI Module with M12 Connector, 4x Intel GbE LAN4x M12DI-1000
DS-1100
DS-1101
DS-1102
CMI-M12PoE104CMI-M12PoE104PoECMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W4x M12DS-1100
DS-1101
DS-1102
CMI-M12PoE114CMI-M12PoE114PoECMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W4x M12DI-1000

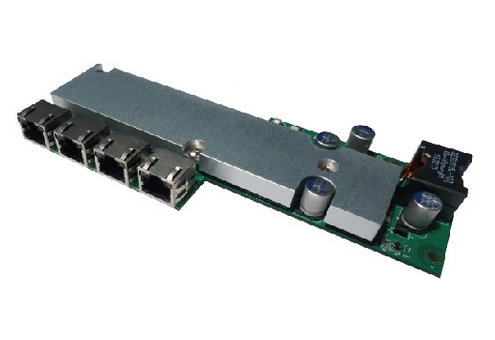

CMI-PoE104CMI-PoE104PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W4x RJ45DS-1000
DS-1001
DS-1002
DS-1100
DS-1101
DS-1102
CMI-PoE114CMI-PoE114PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W4x RJ45DI-1000
CMI-PoE204CMI-PoE204PoECMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W4x RJ45DE-1000
DE-1001
DE-1002
