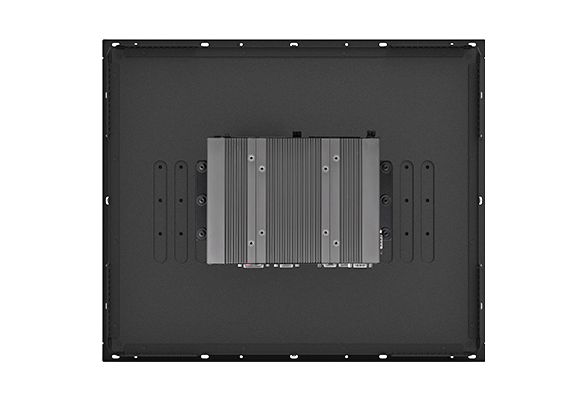

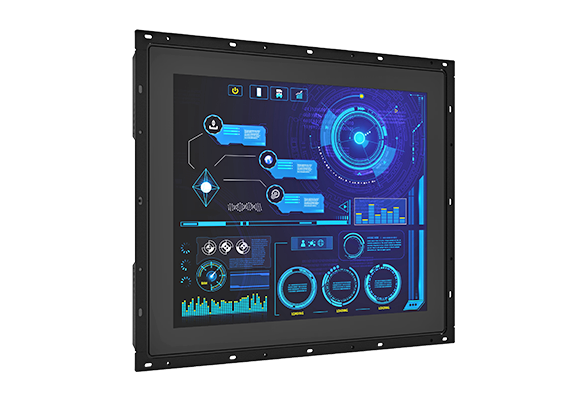

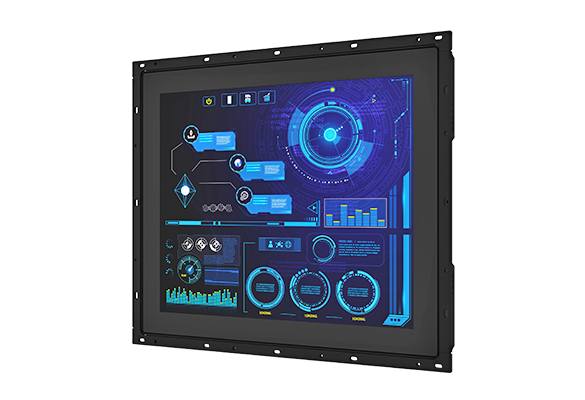

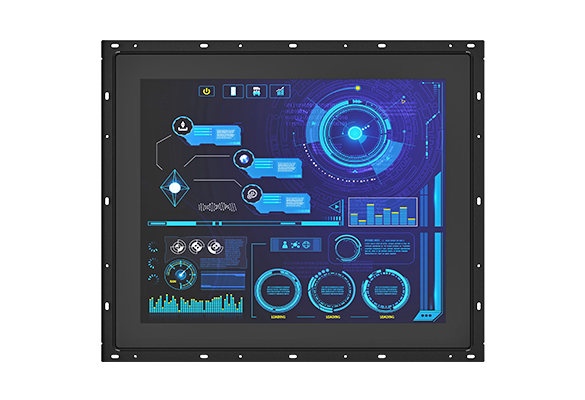

CO-119C / P1001 Series

19" TFT-LCD 开放式架构平板电脑，配备 Intel® Atom™ E3845 四核处理器、4x USB、2x COM、1x VGA 和 1x DisplayPort
产品特点
  • 19" TFT-LCD 投射电容式触控
  • Intel® Atom™ E3845 四核处理器，1.91GHz
  • 1x DDR3L SO-DIMM 插槽，最大支持 8GB 内存
  • 设计带有可调整安装支架
  • 支持平板、标准、VESA 和机架安装方式
  • 前面板符合 IP65 防护等级
  • 广泛的工作温度范围
  • Cincoze 专利 CDS 技术支持
加入咨询清单 规格表
产品介绍
All new open frame panel pc - CO-100/P1001 Series Fits Any Machine Perfectly

德承节能开放式架构平板电脑，采用 Intel® Atom® 系列处理器，支持多显功能。具备丰富的原生 I/O 如 LAN, USB, COM, DIO，能依据需求扩展应用功能。此外，一体式设计、专属可调式安装支架及支持多款安装模式，除了能结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端的应用需求。


Product Category >>>> Modular Panel PC & Industrial Monitor


节能与 多显

——

Intel® Atom® 系列处理器，支持多显功能。

节能与 多显
丰富 I/O 灵活扩展


丰富 I/O 灵活扩展

——

原生 I/O 包含 LAN、USB、 COM、DIO 与 Mini-PCIe、SIM 插槽提供扩展应用功能。



CDS
专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换面板尺寸或是系统效能提升，只需换置单一模块即可达成，大幅节省升级成本。

Patent No. M482908

CDS 专利技术
可调式设计 安装简易


可调式设计
安装简易

——

专属可调式安装支架，拥有厚度调整的选择及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427


一体式 设计

——

弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。


一体式 设计
强固可靠兼具 耐用度提升


强固可靠兼具
耐用度提升

——

前框 IP65 防水防尘、无风扇、9-48V 宽压电源输入及 0℃~60℃ 宽温设计，在严峻的工业环境中，均能稳定持续运作，高度满足工业现场端 HMI 的应用需求。

wide temperature support (0-60°C) front IP65 dustproof and waterproof protection

视频
相关报导
德承工业平板电脑 HMI 应用的全方位解决方案
2024-10-24
德承工业平板电脑 HMI 应用的全方位解决方案
工控机：发展历程、特性与解决方案
2024-09-10
工控机：发展历程、特性与解决方案
[ 产品聚焦 ] Cincoze 工业平板电脑解決方案
2024-07-18
[ 产品聚焦 ] Cincoze 工业平板电脑解決方案
什么是人机界面(HMI): 你必须知道的定义、趋势与关键特性
2024-01-11
什么是人机界面(HMI): 你必须知道的定义、趋势与关键特性
详细规格

CO-119C

Model NameCO-119C
DisplayLCD Size• 19” (5:4)
Max. Resolution• 1280 x 1024
Brightness (cd/m2)• 350
Contrast Ratio• 1000 : 1
LCD Color• 16.7M
Pixel Pitch (mm)• 0.294 (H) x 0.294 (V)
Viewing Angle (H-V)• 170 / 160
Backlight MTBF• 50,000 hrs (LED Backlight)
Touch ScreenTouchscreen Type• Projected Capacitive Touch
PhysicalDimension (W x D x H)• 472.8 x 397.5 x 63mm
Weight• 6.91kg
Construction• One-piece and Slim Bezel Design
Mounting Type• Flat / Standard / VESA / Rack Mount
Mounting Bracket• Pre-installed Mounting Bracket with Adjustable Design
  (Support 11 different stages of adjustment)
PowerPower Consumption• 21W (Max.)
ProtectionIngress Protection• Front Panel IP65 Compliant * According to IEC60529
EnvironmentOperating Temperature• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature• -20°C - 60°C
Humidity• 80% RH @ 50°C (non-condensing)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P1001 Series

Model NameP1001P1001E
SystemProcessorOnboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz
Memory1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC)
Support up to 8 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsCDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface
VGA1x VGA Connector (1920x1080@60Hz)
DP1x DisplayPort Connector (1920x1080@60Hz)
AudioLine-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
USB1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A)
Serial Port2x RS-232/422/485 with Auto Flow Control Support, DB9
DIO8x Isolated Digital I/O (4in/4out)
StorageSSD/HDD1x 2.5” HDD/SSD Drive
SIM Socket1 x Front Accessible SIM Socket
CFast1 x Front Accessible CFast Socket
ExpansionMini PCI Express1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module
Universal Bracket 2x Universal I/O Brackets
Other FunctionWatchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A, 60W
PhysicalDimension ( W x D x H )204.5 x 149 x 37.5 mm204.5 x 150 x 60 mm
Weight Information1.34kg1.54kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS Mounting
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection20A
Operating StystemMicrosoft® Windows®Windows® 10, Windows® 8, Windows® 7
Windows® Embedded 8 Standard, Windows® Embedded Standard 7
LinuxSupports by project
EnvironmentOperating TemperatureAmbient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals)
StorageTemperature-30°C to 85°C
Relative Humidity10%~95% (non-condensing)
ShockOperating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
订购信息
Available Models
Model No.Product Description
CO-119C-R10/P1001-R1019" TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch
CO-119C-R10/P1001E-R1019" TFT-LCD SXGA 5:4 Open Frame Display Modular and Expandable Panel PC with Intel Atom E3845 Quad Core Processor and P-Cap. Touch

Model Configuration
 CO-119CP1001P1001E
CO-119C/P1001VV--
CO-119C/P1001EV--V

Package Checklist
• CO-119C/P1001 Series Panel PC x 1• Power Terminal Block Connector (Female) x 1
• DIO Terminal Block Connector (Female) x 1• HDD Screw Pack x 1
• Mini PCIe Screw Pack x 1

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only)
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only)
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only)
UB03032x Universal Bracket each with 1x DB9 Cutout (For P1001E only)
UB03111x Universal Bracket with 2x RJ45 Cutout (For P1001E only)
UB03141x Universal Bracket with 2x USB Cutout (For P1001E only)
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
