DE-1000
Intel® Atom™ E3845 四核处理器，节能、扩展型和模块化的强固型嵌入式系统
产品特点
- 板载Intel® Atom™ E3845 四核处理器，1.91GHz
- 2个DDR3L SO-DIMM内存插槽，可达8GB

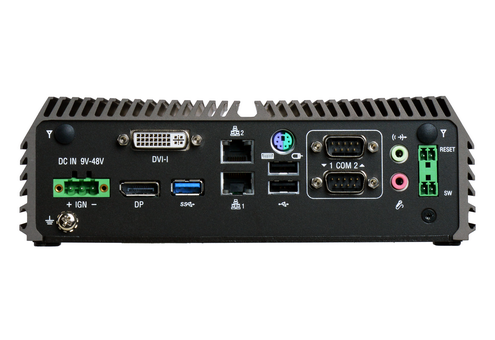

- 双重独立显示，1个DVI-I和1个DisplayPort
- 2个Intel® GbE网口，支持网络唤醒（Wake-on-LAN）和预启动执行环境（PXE）
- 1个USB 3.0和4个USB 2.0

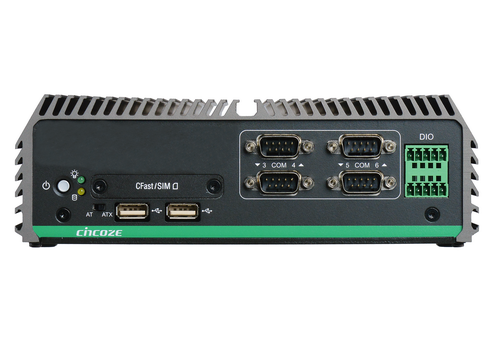

- 6个RS232/422/485串口，可供电5V/12V
- 4个独立DI, 4个独立DO
- 2个2.5” SATA HDD / SSD托盘
- 1个mSATA （与Mini-PCIe插槽共用）
- 1个CFast卡和1个SIM卡插槽
- 9~48VDC宽压电源输入，支持AT/ATX 模式
- 2个Mini-PCIe插槽，支持Wi-Fi、GSM或I/O 扩展
- 智能点火控制功能
- EN50121-3-2 Certified / EN62368-1
产品介绍

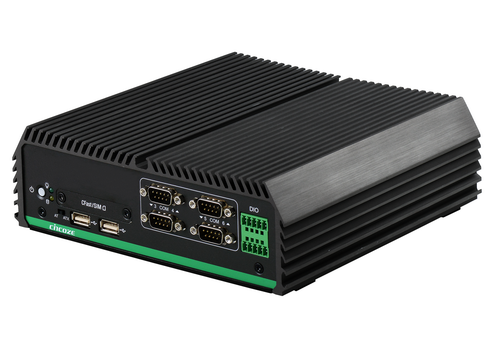

DE-1000系列无风扇嵌入式系统采用Intel® Bay Trail平台，支持Intel® Atom™ E3845四核1.91 GHz处理器。以10瓦的低功耗提供了出色的四核处理能力，是计算性能、能源效率和优越可靠性的理想解决方案。此款机型设计具有丰富的I/O，高灵活性和易于扩展的能力，提供多个I/O扩展模块，2个mini-PCIe插槽用于GSM和WLAN无线通信，同时还支持三个存储扩展：2.5”SATA硬盘、CFast卡和SIM卡，DE-1000系列是各种工业应用的理想选择。
DE-1000系列支持-25°C至70°C的宽工作温度，9~48V的宽压直流电源输入，电源保护、无电缆和一体化机壳设计，并符合EN50121-3-2铁路应用认证，它的设计是为了确保在恶劣的环境中依然能够稳定运行。另外支持智能点火控制功能，DE-1000系列可满足各种应用，如：监视、车载、工业自动化应用等。
DE-1000系列支持-25°C至70°C的宽工作温度，9~48V的宽压直流电源输入，电源保护、无电缆和一体化机壳设计，并符合EN50121-3-2铁路应用认证，它的设计是为了确保在恶劣的环境中依然能够稳定运行。另外支持智能点火控制功能，DE-1000系列可满足各种应用，如：监视、车载、工业自动化应用等。
相关报导
详细规格
| Model Name | DE-1000 | |
|---|---|---|
| Processor System | CPU | Intel® Atom™ E3845 |
| Frequency | 1.91 GHz | |
| Core Number | 4 | |
| BIOS | AMI 64Mbit SPI | |
| Chipset | - | |
| Memory | Technology | DDR3L 1066 / 1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 2x 204-Pin SO-DIMM | |
| Display | VGA | Yes (with optional split cable) |
| DDI (HDMI/DVI/DisplayPort) | 1x DVI-I 1x DisplayPort Connector (2560 x 1600) | |
| Multiple Display | Support Dual Display | |
| Expansion | PCI | - |
| PCIe | - | |
| Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller | GbE1: Intel® i210 GbE2: Intel® i210 Support Wake-on-LAN and PXE |
| PoE | - | |
| Speed | 10/100/1000 Mbps | |
| Audio | Codec | Realtek ALC888S |
| Connector | 1x Mic-in, 1x Line-out | |
| WatchDog Timer | Software Programmable Supports 256 Levels System Reset | |
| Storage | SSD / HDD | 2x 2.5" SATA HDD Bay |
| mSATA | 1x mSATA (shared by Mini-PCIe socket) | |
| CompactFlash/CFast | 1x CFast | |
| SIM Socket | 1 | |
| I/O Ports | USB | 1x 5Gbps USB 3.2 Gen1, Type A 4x 480Mbps USB 2.0, Type A |
| DIO | 4 in/4 out | |
| COM Port | 6x RS-232/422/485 | |
| PS/2 | 1x KB/MS | |
| Antenna Hole | 2 | |
| Power Switch | 1 | |
| AT/ATX Switch | 1 | |
| External Fan Connector | - | |
| Remote Power On/Off and Remote Power Reset | Yes | |
| Universal I/O Bracket | - | |
| Power | Power Type | AT, ATX |
| Power Supply Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Environment | Operating Temperature | Ambient with air flow: -25°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -30°C to 85°C | |
| Relative Humidity | 10%~95% (non-condensing) | |
| Physical | Dimension (WxDxH) | 203 x 200 x 65 mm |
| Weight | 2.84 kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Mounting (Optional Side / VESA / DIN-Rail Mounting) | |
| Operating System | Microsoft® Windows® | • Windows® 10 • Windows® 8 • Windows® Embedded 8 Standard • Windows® 7 • Windows® Embedded Standard 7 |
| Linux® | Supports By Project | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DE-1000 | Intel® Atom™ E3845 Quad Core Power Efficient Fanless Computer |
| √ DE-1000 Embedded System x 1 |
| √ DIO Terminal Block Connector x 2 |
| √ Power Terminal Block Connector x 1 |
| √ Remote Power Terminal Block Connector x 2 |
| √ DVI-I to VGA Adapter x 1 |
| √ Screw Pack x 1 |
| √ Wall Mount Kit x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, Level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M |
| VESA-DE | DE series VESA Mount Kit |
| SIDE-DE | DE series SIDE Mount Kit |
| DINRAIL | Diamond series DIN-RAIL Mount Kit |
