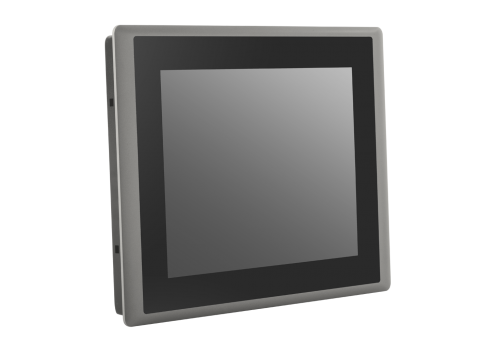

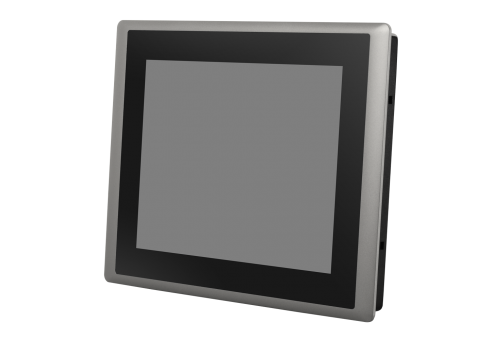

CV-112 / P2102
EOL Model
12.1" 第8代Intel® Core™ U系列处理器，高性能无风扇工业平板电脑，支持CFM和CDS技术
产品特点
- 12.1" 800 x 600 (SVGA) TFT-LCD 投射电容式或5线电阻式触摸屏
- 板载第8代Intel® Core™ U 系列处理器
- 2个DDR4 SO-DIMM内存插槽，可达2400MHz, 64GB
- 支持三重独立显示
- 集成USB 3.2 Gen 2支持高达10Gbps
- 1个M.2 E Key（CNVi）插槽，可支持无线模块或Intel CRF模块
- 支持智能点火控制功能（带可选配的CFM模块）
- 支持2个PoE+，单个网口可提供25.5W大功耗（带可选配的CFM模块）
- IP65防护等级的铝压铸前面板
- 支持面板/ VESA /机架安装
产品介绍
德承CV-112/P2102是一款12.1寸TFT-LCD的工业平板电脑，搭载了第8代Intel® Core™ U系列移动式处理器，适用于工厂和机器自动化应用的高性能要求。与第6代Intel® Core™ U系列相比，它在15瓦的TDP功耗下有84%的计算性能提升。为了实现更快的响应速度和更大的内存容量，配备了两个DDR4 2400 SO-DIMM插槽，内存可达64 GB。
由于其超薄的设计，CV-112/P2102提供广泛的I/O扩展以满足不同的连接目的，可轻易地安装于任何紧凑的空间。对于无线连接，这台电脑有1个M.2 E Key（CNVi） 和2个全尺寸Mini-PCIe插槽，以支持Wi-Fi、3G和LTE模块。此外，CV-112/P2102支持CFM技术，可以通过附加模块来增加智能点火控制与网口供电（POE）功能。CV-112/P2102具有严密的工业保护、IP65防尘/防水前面板、无风扇/无跳频设计、宽工作温度(-40°C至+70°C)、宽压直流电源输入(9~48 VDC)、防震抗冲击(5/50 Grms)，适用于各种恶劣环境和关键工业应用。
此外，CV-112/P2102支持德承的CDS模块化专利技术，允许用户现场轻松替换显示屏模块或系统模块，从而减少维护成本和停机时间。
相关报导
详细规格
| Model Name | CV-112/P2102 | ||
|---|---|---|---|
| Model No. | CV-112R/P2102 | CV-112C/P2102 | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| Processor System | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W | ||
| Memory | 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Supports up to 64 GB (un-buffered and non-ECC) | ||
| Graphics | Integrated Intel® UHD Graphics 620 | ||
| Supports Triple Independent Display (via VGA and DisplayPort Outputs) | |||
| Audio | Realtek® ALC888-GR | ||
| High Definition Audio | |||
| I/O Interface | 1x VGA (1920 x 1200 @60Hz) | ||
| 1x DisplayPort (4096 x 2304 @ 60Hz) | |||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210IT | |||
| 3x USB 3.2 Gen2 (Type A) | |||
| 2x USB 2.0 (Type A) | |||
| 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |||
| 1x Speaker-out & 1x Mic-in, Phone Jack 3.5mm | |||
| 1x ATX Power On/Off Button | |||
| 1x Reset Button | |||
| 1x AT/ATX Mode Switch | |||
| 1x Clear CMOS Switch | |||
| 1x Remote Power On/Off Connector, 2-pin Terminal Block | |||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | |||
| 1x Ignition DIP Switch (12V/24V, need to work with CFM module) | |||
| Storage | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 | ||
| Expansion | 2x Full-size Mini-PCIe Socket | ||
| 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module | |||
| 2x Control Function Module (CFM) Interface | |||
| 1x Front Accessible SIM Socket | |||
| 4x Antenna Hole | |||
| Other Function | Watchdog Timer: Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker AMP 2W + 2W | |||
| OSD Function: LCD On/Off, Brightness Up, Brightness Down | |||
| SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| Supports Instant Reboot Technology (0.2 sec) | |||
| Power Requirement | Support AT/ATX Power Mode | ||
| Power Input Voltage 9~48VDC | |||
| One 3-pin Terminal Block Connector | |||
| Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W | |||
| Physical | Dimension (WxDxH, mm): 345 x 265.3 x 69.5 mm | ||
| Weight: 5.4 kg | |||
| Construction: Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis | |||
| Mounting: Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | |||
| Jumper-less Design | |||
| Protection | Reverse Power Input Protection | ||
| Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection: 15A | |||
| ESD Protection: +/-8kV (air), +/-4kV (contact) | |||
| Surge Protection: 2 kV (impedance 12 ohm 1.2/50μs waveform) | |||
| Operating Stystem | Windows® 10 | ||
| Linux: Supports by project | |||
| Environment | Operating Temperature: -30°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow) | ||
| Storage Temperature: -30°C to 70°C | |||
| Relative Humidity: 80% RH @ 40˚C (Non-condensing) | |||
| Shock: Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |||
| Vibration: Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |||
| IP Level: IP65 Compliant Front Panel | |||
| EMC: CE, FCC Class A | |||
订购信息
| Model No. | Product Description |
|---|---|
| CV-112R-R10/P2102-i5-R10 | 12.1" SVGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and Resistive Touch |
| CV-112C-R10/P2102-i5-R10 | 12.1" SVGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and Resistive Touch |
| CV-112R-R10/P2102-i3-R10 | 12.1" SVGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
| CV-112C-R10/P2102-i3-R10 | 12.1" SVGA TFT-LCD Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch |
| √ CV-112/P2102 Panel PC x 1 |
| √ DIO Terminal Block Connector x 2 |
| √ Thermal Pad (for CPU Thermal Block) x 1 |
| √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 |
| √ Screws Pack x 5 |
| √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Panel Mounting Kit x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE04 | CFM Module with PoE Control Function, Individual Port 25.5W |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
