CS-W121 / P1001 Series

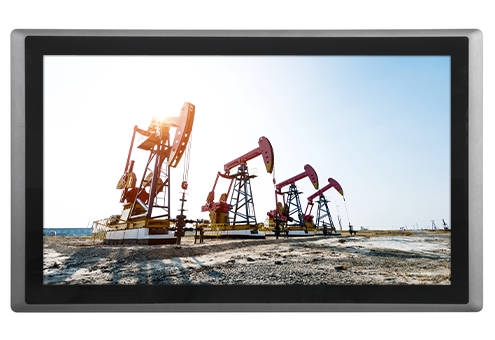

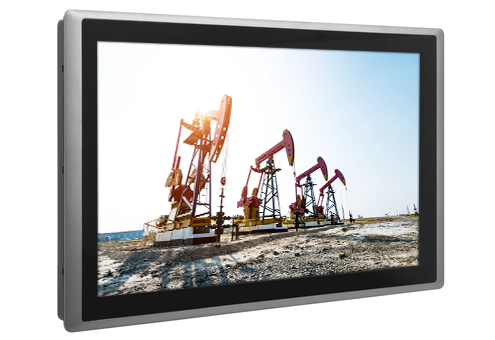

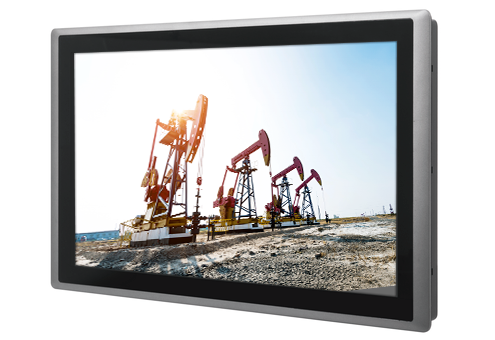

21.5 "TFT-LCD，搭载Intel® Atom™ E3845处理器，阳光下可视的节能无风扇工业平板电脑
产品特点
- 21.5 英寸 TFT-LCD，具有高达 1,000 尼特的超高亮度和 1920x1080 分辨率
- 板载 Intel® Atom™ E3845 处理器四核，1.91GHz
- 支持 1x DDR3L SO-DIMM 插槽，最高 8 GB
- 1x 2.5” SATA Drive Bay, 1x CFast Card 和 1x SIM Card Socket
- 2x GbE LAN、4x USB、2x COM、1x VGA、1x DisplayPort、4x DI/4x DO
- 1x Mini-PCIe 扩展插槽，用于无线和 I/O 扩展
- 宽范围工作温度 -20°C 至 70°C
- 采用铝压铸前框架设计
- True Flat IP65 前面板保护
- 支持面板/VESA/机架安装
- 支持可转换显示系统 (CDS) 技术
- 2x 通用 I/O 支架（仅适用于 P1001E）
产品介绍
CS-W121C/P1001系列是一款21.5" TFT-LCD阳光下可视的触控工业平板电脑，提供1,000 nits超高亮度和1920 x 1080分辨率。系统配备Intel® Atom® E3845处理器并提供广泛的I/O包括2x GbE、4x USB、2x RS232/422/485、4x DI/4x DO、1x VGA和1x DisplayPort。它还支持1x Mini-PCIe插槽、1x SIM插槽和2x Universal I/O Brackets（仅适用于P1001E ) 用于各种无线连接，例如BT/WiFi和 3G/LTE。此外，还有2.5" SATA HDD和CFast两种类型的存储设备。这些存储设备都具有方便操作与易于维护的设计。

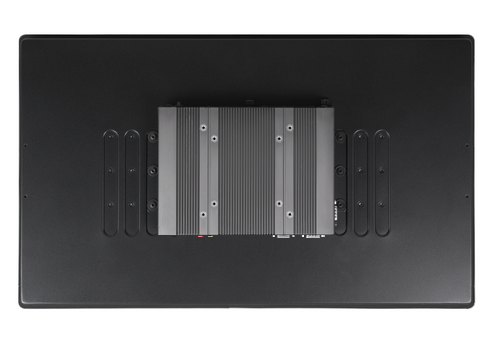

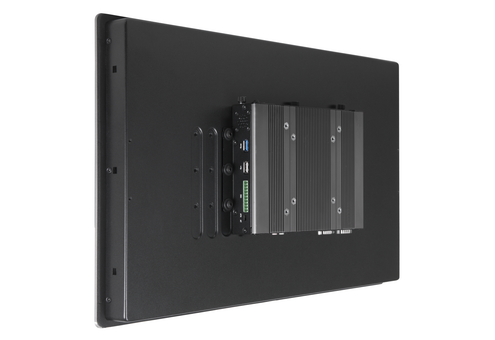

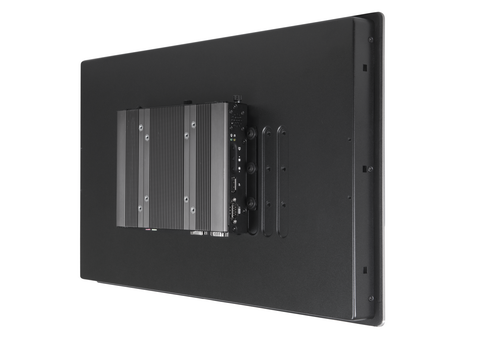

CS-W121C/P1001系列支持CDS (Convertible Display System)技术，使其在系统维护和未来升级上更加灵活。此外，CS-W121C/P1001系列是真正强固的显示系统，支持宽工作温度范围（0°C 至 70°C）、前面板IP65防尘/防水保护、9~48VDC的宽范围电源DC输入和严格的工业等级保护。
Product Category >>>> Modular Panel PC & Industrial Monitor
CS-W121C/P1001系列支持CDS (Convertible Display System)技术，使其在系统维护和未来升级上更加灵活。此外，CS-W121C/P1001系列是真正强固的显示系统，支持宽工作温度范围（0°C 至 70°C）、前面板IP65防尘/防水保护、9~48VDC的宽范围电源DC输入和严格的工业等级保护。
Product Category >>>> Modular Panel PC & Industrial Monitor
相关报导
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CS-W121
| Model Name | CS-W121 | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1,000 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 550 x 330.5 x 63.2mm |
| Weight Information | 5.56 kg | |
| Mechanical Construction | Rugged Aluminum Die-casting Front Bezel | |
| Power | Power Consumption | 31.25W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | 0°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -20°C to 80°C | |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1001 Series
| Model Name | P1001 | P1001E | |
|---|---|---|---|
| System | Processor | Onboard Intel® Atom™ Processor E3845 Quad Core, 1.91 GHz | |
| Memory | 1x DDR3L 1066/1333 MHz SO-DIMM Socket (un-buffered and non-ECC) Support up to 8 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | |
| VGA | 1x VGA Connector (1920x1080@60Hz) | ||
| DP | 1x DisplayPort Connector (1920x1080@60Hz) | ||
| Audio | Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
| USB | 1x USB 3.2 Gen1 (Type A), 3x USB 2.0 (Type A) | ||
| Serial Port | 2x RS-232/422/485 with Auto Flow Control Support, DB9 | ||
| DIO | 8x Isolated Digital I/O (4in/4out) | ||
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive | |
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| CFast | 1 x Front Accessible CFast Socket | ||
| Expansion | Mini PCI Express | 1x Full-size Mini PCIe Socket for Wi-Fi/GSM/Expansion Module | |
| Universal Bracket | 2x Universal I/O Brackets | ||
| Other Function | Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 37.5 mm | 204.5 x 150 x 60 mm |
| Weight Information | 1.34kg | 1.54kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS Mounting | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 20A | ||
| Operating Stystem | Microsoft® Windows® | Windows® 10, Windows® 8, Windows® 7 Windows® Embedded 8 Standard, Windows® Embedded Standard 7 | |
| Linux | Supports by project | ||
| Environment | Operating Temperature | Ambient with Air Flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
| StorageTemperature | -30°C to 85°C | ||
| Relative Humidity | 10%~95% (non-condensing) | ||
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 1 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
订购信息
| Model No. | Product Description |
|---|---|
| CS-W121C-R10/P1001-R10 | 21.5" TFT-LCD 1000 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor and P-Cap. Touch |
| CS-W121C-R10/P1001E-R10 | 21.5" TFT-LCD 1000 nits Sunlight Readable Touch Panel PC with Intel® Atom™ E3845 Quad Core Processor, P-Cap. Touch and 2x Universal I/O Bracket |
| CS-W121C | P1001 | P1001E | |
|---|---|---|---|
| CS-W121C/P1001 | V | V | -- |
| CS-W121C/P1001E | V | -- | V |
| √ CS-W121/P1001 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Panel Mounting Kit x 1 | √ Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable (For P1001E only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable (For P1001E only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable (For P1001E only) |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout (For P1001E only) |
| UB0311 | 1x Universal Bracket with 2x RJ45 Cutout (For P1001E only) |
| UB0314 | 1x Universal Bracket with 2x USB Cutout (For P1001E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
