产品介绍

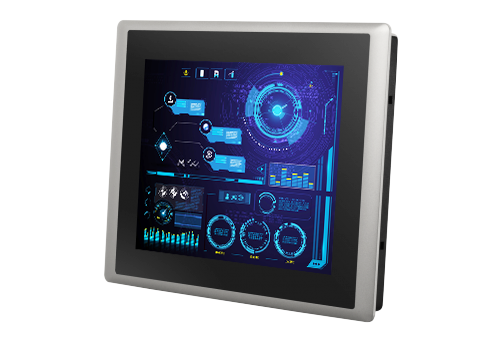

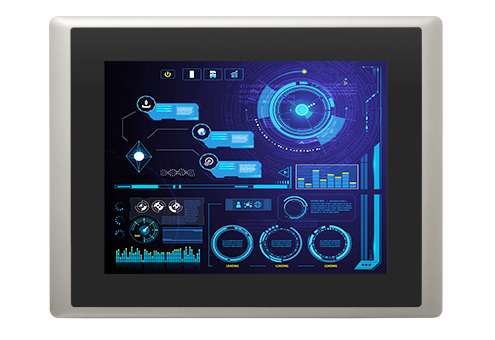

CV-112H/M1001是一款12.1寸的工业触摸显示器，带投射电容式或5线电阻式触摸屏，提供分辨率高达1024 x 768 (XGA) 和500 nits的亮度。具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。
CV-112H/M1001支持CDS模块化技术，可以轻松配置、升级和维护您的触摸显示器。同时提供数字和类比视频信号输入接口，包括VGA、DVI-D与DisplayPort。另外具有OSD多语言屏幕菜单式调节功能，并支持1个USB和1个COM端口作为触摸屏的连结控制。支持从9到48V的宽压直流电源输入，可部署于各种工业显示应用。
CV-112H/M1001支持CDS模块化技术，可以轻松配置、升级和维护您的触摸显示器。同时提供数字和类比视频信号输入接口，包括VGA、DVI-D与DisplayPort。另外具有OSD多语言屏幕菜单式调节功能，并支持1个USB和1个COM端口作为触摸屏的连结控制。支持从9到48V的宽压直流电源输入，可部署于各种工业显示应用。
详细规格
| Model Name | CV-112H/M1001 | |||
| Model No. | CV-112HR/M1001 | CV-112HC/M1001 | ||
| Display | LCD Size | 12.1" (4:3) | ||
| Max. Resolution | 1024 x 768 | |||
| Brightness (cd/m2) | 500 | |||
| Contrast Ratio | 700 : 1 | |||
| LCD Color | 16.2M | |||
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |||
| Viewing Angle (H-V) | 160 / 160 | |||
| Backlight MTBF | 30000 hrs (LED Backlignt) | |||
| Touch | Resistive 5-wire | V | - | |
| Projected Capacitive | - | V | ||
| System | A/D Board | Novatek NT68856UFG | ||
| VGA Input | 1 | |||
| DVI-D Input | 1 | |||
| DisplayPort Input | 1 | |||
| COM port | 1 | |||
| USB 2.0 Input | 1 | |||
| 1 | ||||
| Audio Input | ||||
| Power Switch | 1 | |||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) | ||
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |||
| Power | Power Requirement | 9~48VDC | ||
| Connector | 3-pin Terminal Block | |||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |||
| Physical | Dimension (WxHxD) | 345 x 265.3 x 66.5 mm | ||
| Weight Information | 4.28 kg | |||
| Construction Front Panel | Die-cast Flat Surface | |||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | V | |||
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 | ||
| Liunx | Kernel 3.x | |||
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) | ||
| Storage Temperature | -20°C to 75°C | |||
| Relative humidity | 80% RH @ 40°C (Non-Condensing) | |||
| IP Level | IP 65 Compliant Front Panel | |||
| EMC | CE/ FCC Class A | |||
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-112HR/M1001 | 12.1" TFT SVGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| CV-112HC/M1001 | 12.1" TFT SVGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
Package Checklist
| CV-112/M1001 |
| √ CV-112/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
