产品介绍

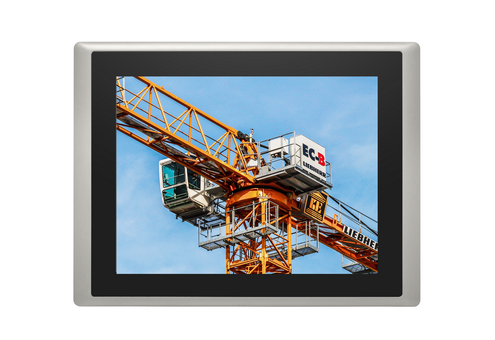

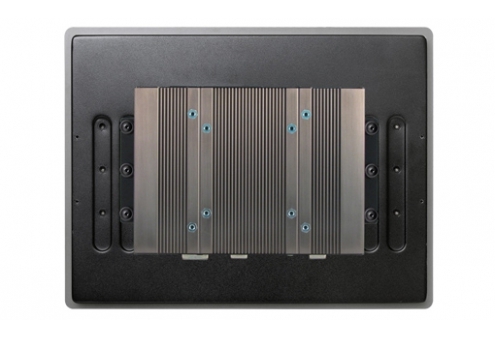

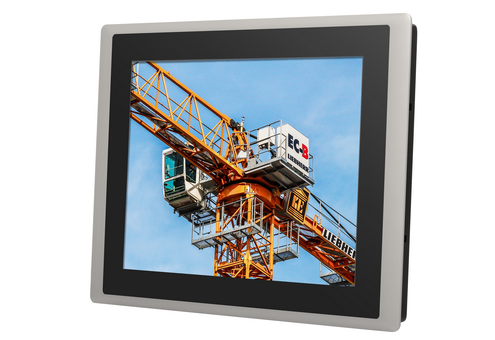

CS-112H/M1001是一款12.1寸阳光下可视的工业触摸显示器，提供分辨率高达1024 x 768 (XGA) 和1,500 nits的亮度。同时提供数字和类比视频信号输入接口，包括VGA、DVI-D与DisplayPort。具有OSD多语言屏幕菜单式调节功能，并支持1个USB和1个COM端口作为触摸屏的连结控制。支持CDS模块化技术，可以轻松配置、升级和维护您的触摸显示器。
CS-112H/M1001具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。从-5°C 至 60°C的宽工作温度，支持从9到48V的宽压直流电源输入，是一款坚固可靠的户外应用显示解决方案，适用于重型起重移动设备、电子收费系统、汽车共享系统等户外应用。
CS-112H/M1001具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。从-5°C 至 60°C的宽工作温度，支持从9到48V的宽压直流电源输入，是一款坚固可靠的户外应用显示解决方案，适用于重型起重移动设备、电子收费系统、汽车共享系统等户外应用。
详细规格
| Model Name | CS-112H/M1001 | |
| Model No. | CS-112HC/M1001 | |
| Display | LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |
| Viewing Angle (H-V) | 160 / 160 | |
| Backlight MTBF | 30000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| Power | Connector | 3-pin Terminal Block |
| Power Requirement | 9~48VDC | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| I/O Port | VGA Input | 1 |
| DVI-D Input | 1 | |
| DisplayPort Input | 1 | |
| Audio Input | 1 | |
| COM Input | 1 | |
| USB 2.0 Input | 1 | |
| AMP 5W + 5W (Internal Speaker) | ||
| Other Features | Audio | |
| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |
| Physical | Dimension (WxHxD) | 345 x 265.3 x 66.5 mm |
| Weight Information | 4.28 kg | |
| Construction Front Panel | Rugged Aluminum Die-casting Bezel | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 70°C | |
| Relative humidity | 80% RH @ 40°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| IP Level | IP 65 Compliant Front Panel | |
| EMC | CE/ FCC Class A | |
| Operating System | Windows | Windows® 10 Windows® 8.1 Windows® 7 |
| Liunx | Kernel 3.x | |
| Certification | Safety Certifications | • CE • FCC Class A |
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CS-112HC-R10/M1001-R12 | 12.1" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap. Touch |
Package Checklist
| CS-112H/M1001 |
| √ CS-112H/M1001 Touch Monitor x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
