产品介绍

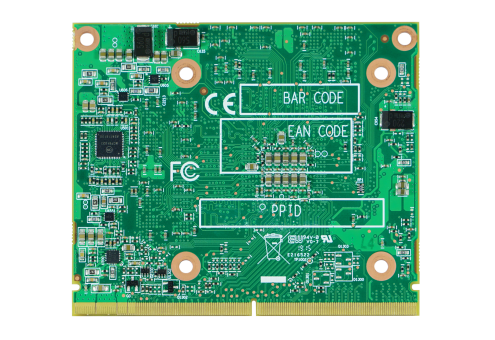

MXM- E9174是一款功能先进的AMD Radeon™系列嵌入式MXM GPU模块，AMD Polaris 图形架构技术，标准 MXM 3.1规范 Type A，拥有512个Stream 核心和4GB GDDR5内存，MXM- E9174嵌入式MXM GPU模块可为边缘运算系统提供高性能的图像分析和图像处理能力。
详细规格
| GPU | AMD Embedded Radeon™ E9174 | |
|---|---|---|
| Memory | 4GB GDDR5 memory, 128-bit | |
| Shader Processing Units | 512 Stream Processors | |
| DirectX® Capability | DirectX® 12 | |
| OpenGL™ | OpenGL™ 4.5 | |
| OpenCL™ 1.2 | OpenCL™ 2.0 | |
| VULKAN™ | VULKAN™ Support | |
| Display Outputs | 4x DisplayPort Digital Video Outputs, 4K at 60Hz | |
| Interface | PCI Express Gen3 x8 support | |
| Dimensions | 82 (W) x 70 (D) mm | |
| Form Factor | Standard MXM 3.0 Type A | |
| Power Consumption | 50W | |
| OS Support | Windows 10, Linux support by project | |
订购信息
| Model No. | Product Description |
|---|---|
| MXM-E9174-01 | AMD Embedded Radeon™ E9174 MXM Kit with Heatsink and Thermal Pad |
| √ AMD Embedded Radeon™ E9174 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad x 2 |
| √ Screw Pack x 1 |
| √ Utility DVD Driver x 1 |
