产品介绍

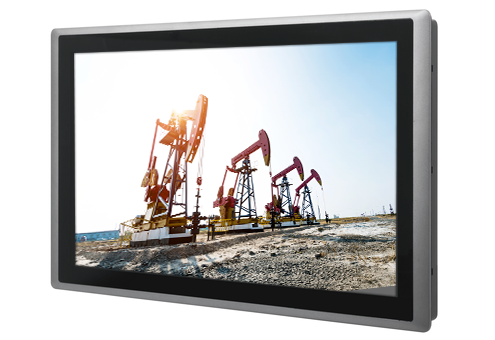

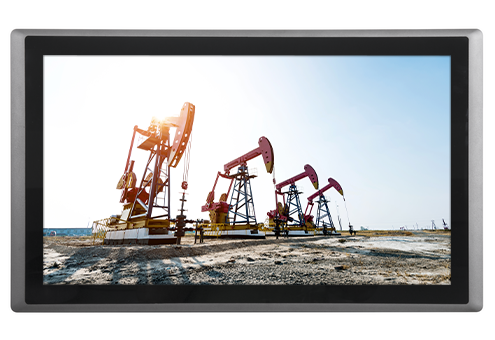

CS-W121C / M1001是一款21.5寸阳光下可视的工业触摸显示器，提供分辨率高达1920 x 1080 和1,000 nits的亮度。同时提供数字和类比视频信号输入接口，包括VGA、DVI-D与DisplayPort。具有OSD多语言屏幕菜单式调节功能，并支持1个USB和1个COM端口作为触摸屏的连结控制。支持CDS模块化技术，可以轻松配置、升级和维护您的触摸显示器。
CS-W121C / M1001具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。支持从0°C 至 60°C的宽工作温度、9到48V的宽压直流电源输入，是一款坚固可靠的户外应用显示解决方案，适用于重型起重移动设备、电子收费系统、汽车共享系统等户外应用。
CS-W121C / M1001具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。支持从0°C 至 60°C的宽工作温度、9到48V的宽压直流电源输入，是一款坚固可靠的户外应用显示解决方案，适用于重型起重移动设备、电子收费系统、汽车共享系统等户外应用。
详细规格
| Model Name | CS-W121C / M1001 | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1000 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.24825 (H) x 0.24825 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Projected Capacitive | V |
| Audio | Audio | 1x Audio Input |
| External I/O Interface | VGA | 1x VGA Input |
| DP | 1x DisplayPort Input | |
| DVI | 1x DVI-D Input | |
| USB | 1x USB 2.0 (for Projected Capacitive Touch) | |
| COM | 1x COM Port (reserved for Resistive Touch) | |
| Other Function | Internal Speaker | AMP 5W + 5W |
| OSD Function | • LCD On/Off, Auto, Menu, Up and Down • Multi-language OSD Function | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Power Adapter (Optional) | Optional AC/DC 12V/5A, 60W | |
| Physical | Dimension (WxHxD) | 550 x 330.5 x 73mm |
| Weight Information | 6.68 Kg | |
| Front Panel Construction | Die-Casting Flat Surface | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | Fanless Design | |
| Environment | Operating Temperature | Ambient with air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 90% RH @ 39°C (Non-Condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W121C-R10/M1001-R12 | 21.5" TFT-LCD Full HD 16:9 Display Module with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V |
| √ CS-W121C/M1001 Touch Monitor x 1 | √ USB Cable x 1 |
| √ Panel Mounting Kit x 1 | √ VGA Cable x 1 |
| √ Utility DVD Driver x 1 | √ Screw Pack x 1 |
| √ Power Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
