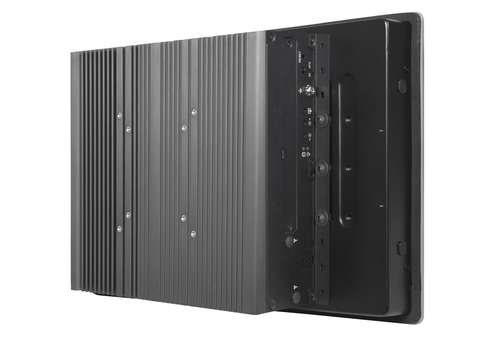

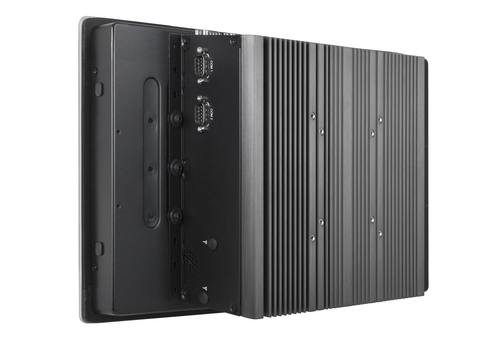

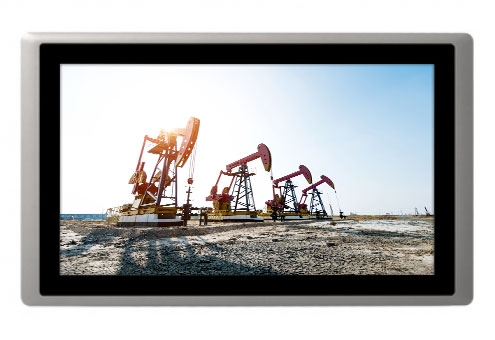

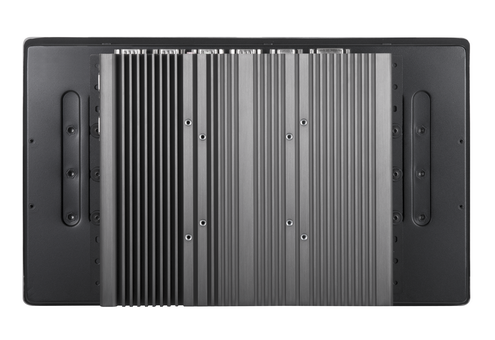

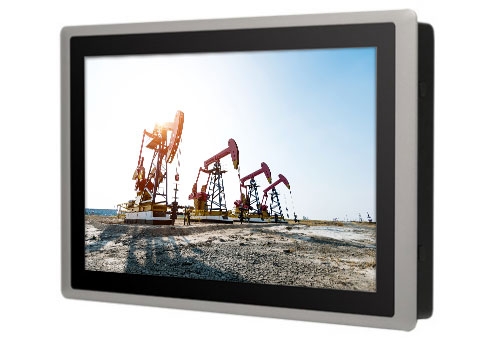

CS-W115FHC / P2002E
EOL Model
15.6" TFT-LCD阳光下可视的高性能、扩展型无风扇工业平板电脑，搭载第6代Intel® Core™ U系列处理器，支持CFM和CDS技术及PCI/PCIe扩展
产品特点
- 15.6” TFT-LCD 高达1,500 nits超高亮度，和1920 x 1080分辨率
- 搭载第6代Intel® Core™ U 系列处理器 (15W)
- 2个DDR4 SO-DIMM内存插槽，最大可达32GB
- 支持三重独立显示
- 2个2.5” SATA HDD / SSD托盘，1个mSATA和1个CFast插槽
- 丰富的I/O接口（2个GbE网口，6个串口，5个USB，16个独立DIO）
- 2个全尺寸Mini-PCIe插槽，适用于各种I/O扩展
- 宽工作温度 -10°C 至 70°C
- 前框坚固铝压铸设计
- 真正全平面，IP 65防护等级的前面板
- 支持面板安装、VESA安装、机架安装
- 支持即时重启技术、支持CDS技术
产品介绍
德承CS-W115FHC / P2002E是一款15.6寸阳光下可视的高性能工业平板电脑，具有1,500 nits超高亮度和1920 x 1080分辨率。采用第6代Intel® Core™ U系列处理器，具有高计算能力。提供丰富的I/O接口，包括2个GbE网口、5个USB和6个串口，8个DI/8个DO、1个VGA，1个DVI-D，支持2x Mini-PCIe插槽和1x SIM卡插槽，用于各种无线连接，如BT/WiFi和3G/LTE。还支持3种类型的存储设备，包括2.5寸SATA硬盘、CFast和mSATA，这些存储设备允许快速获取数据和易于维护。
CS-W115FHC / P2002E支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持CFM(控制功能模块)技术，通过德承自定义的接口集成电源升压和控制信号，可扩展网口供电（POE）和智能点火控制（IGN）。
CS-W115FHC / P2002E是一款真正坚固耐用的计算系统。支持从-10°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，IP 65防护等级的前面板，可在现场非法断电后保护计算机及操作系统的安全 ，满足工业自动化中许多关键的应用需求。
CS-W115FHC / P2002E支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持CFM(控制功能模块)技术，通过德承自定义的接口集成电源升压和控制信号，可扩展网口供电（POE）和智能点火控制（IGN）。
CS-W115FHC / P2002E是一款真正坚固耐用的计算系统。支持从-10°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，IP 65防护等级的前面板，可在现场非法断电后保护计算机及操作系统的安全 ，满足工业自动化中许多关键的应用需求。
详细规格
| Model Name | CS-W115FHC / P2002E | |
|---|---|---|
| Display | LCD Size | 15.6” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| System | Processor | • Onboard 6th Intel® Core™ U Processors (Skylake Lake) - Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U Processor (3M Cache, up to 2.30 GHz) - TDP: 15 W |
| Memory | • 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket • Supports up to 64 GB (un-buffered and non-ECC) | |
| BIOS | AMI 64Mbit SPI BIOS | |
| Graphics | Graphics Engine | Intel® HD Graphics 520 |
| Maximum Display Output | Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Line-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| External I/O Interface | VGA | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 |
| DVI | 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | |
| CDS | 1x CDS Interface, Compact PCI Connector | |
| LAN | • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210 • 2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | |
| COM | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | • 4x USB 3.0, Type-A • 1x USB 2.0, Type-A | |
| DIO | DIO | 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |
| CFast | 1x CFast Socket (Gen3) | |
| Expansion | CFM (Control Function Module) Interface | • 1x CFM IGN Interface • 1x CFM PoE Interface |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | • 1x PCI or 1x PCIex4 Expansion slot [CS-W115FHC/P2002E] • Optional Riser Card: 1x PCI, 1x PCIex4 Support maximum dimension of add-on card (H x L): 100mm x 200mm | |
| UB | 1x Universal I/O Bracket | |
| SIM Socket | 1x SIM Socket | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Power Ignition Sensing | Support Power Ignition Sensing (IGN) | |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down for CDS Display Module | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Power Adapter (Optional) | AC/DC 12V/5A 60W, 24V/5A 120W or 24V/9.2A 220W | |
| Physical | Dimension (WxHxD) | 420 x 254 x 109.5 mm |
| Weight Information | 7.18 Kg | |
| Front Panel Construction | Die-casting Flat Surface | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Surge Protection | 2 kV | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | • Windows® 10 • Windows® 8.1 • Windows® 7 |
| Linux | Support by Project | |
| Environment | Operating Temperature | -10°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10/P2002E-i5-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CS-W115FHC-R10/P2002E-i5-E4-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CS-W115FHC-R10/P2002E-i5-PI-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| CS-W115FHC-R10/P2002E-i3-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface |
| CS-W115FHC-R10/P2002E-i3-E4-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion |
| CS-W115FHC-R10/P2002E-i3-PI-R10 | 15.6" TFT-LCD 16:9 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion |
| √ CS-W115FHC/P2002E Panel PC x 1 | √ DIO Terminal Block Connector x 2 |
| √ Fan Terminal Block Connector x 1 | √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 | √ Screws Pack x 1 |
| √ Power On/Off Terminal Block Connector x 1 | √ Panel Mounting Kit x 1 |
| Model No. | Description |
|---|---|
| RC-E4-01 | Riser Card with 1x PCIex4 Slot |
| RC-PI-01 | Riser Card with 1x PCI Slot |
| MEC-COM-M212-DB9/UB0503 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standatd DB9 Cable |
| MEC-COM-M334-TDB9/UB0504 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30/UB0511 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
| MEC-USB-M102-30/UB0514 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
| Model No. | Description |
|---|---|
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE101 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 33 mm) (For CS-100/P2002E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
