CS-W124 / P2002 Series

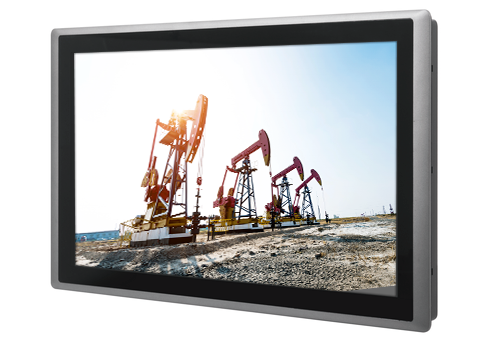

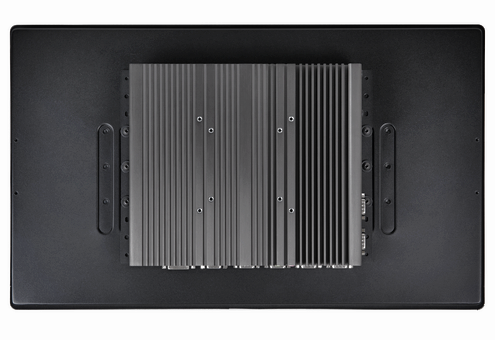

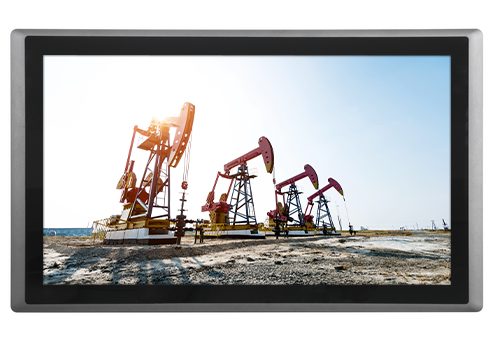

24" TFT-LCD阳光下可视的高性能无风扇工业平板电脑，搭载第6代Intel® Core™ 处理器，支持CFM和CDS技术
产品特点
- 24 英寸 TFT-LCD，具有高达 1,500 尼特的超高亮度和 1920 x 1080 分辨率
- 板载 Intel® 第六代酷睿™ 处理器 U 系列 (15W)
- 支持 2x DDR4 SO-DIMM 插槽，最高 32 GB
- 集成 Intel® HD Graphics 520，支持三重显示
- 2x 2.5" SATA Drive Bay, 1x mSATA, and 1x CFast Socket
- 丰富的 I/O（2x GbE LAN、6x COM、5x USB、16x 独立 DIO）
- 2 个全尺寸 Mini-PCIe 插槽，用于无线和 I/O 扩展
- 宽范围工作温度 -20°C 至 70°C
- 采用铝压铸前框架设计
- True Flat IP65 前面板保护
- 支持面板/VESA/机架安装
- 支持可转换显示系统 (CDS) 技术
- 提供 PCI/PCIe 可扩展版本（仅适用于 P2002E）
产品介绍
CS-W124C/P2002 系列是24" TFT-LCD 阳光下可视的触控工业平板电脑，提供 1,500 nits超高亮度和1920 x 1080分辨率。系统配备Intel® 第六代 Core™ U系列处理器與丰富的I/O接口，包括 2x GbE、5x USB、6x RS232/422/485、8x DI/8x DO、1x VGA 和 1x DVI-D。还支持 2x Mini-PCIe插槽和1x SIM卡插槽，用于各种无线连接，如BT/WiFi和3G/LTE等。此外，拥有3 种类型的存储设备，包括 2.5" SATA HDD (RAID 0/1)、mSATA 和 CFast。这些存储设备都具有方便操作与易于维护的设计。
CS-W124C/P2002系列支持CDS (Convertible Display System)技术。使其在系统维护和未来升级上更加灵活。为强化更好的灵活度，CS-W124C/P2002系列拥有PCI/PCIe 可扩展版本并支持CFM模块，可根据用户需求增加网口供电(PoE)和智能点火控制(IGN)功能。
此外，CS-W124C/P2002系列是真正强固的显示系统，支持宽工作温度范围（-20°C至70°C）、前面板IP65防尘/防水保护、9 - 48VDC的宽范围电源DC输入和严格的工业等级保护等。
Product Category >>>> Modular Panel PC & Industrial Monitor
CS-W124C/P2002系列支持CDS (Convertible Display System)技术。使其在系统维护和未来升级上更加灵活。为强化更好的灵活度，CS-W124C/P2002系列拥有PCI/PCIe 可扩展版本并支持CFM模块，可根据用户需求增加网口供电(PoE)和智能点火控制(IGN)功能。
此外，CS-W124C/P2002系列是真正强固的显示系统，支持宽工作温度范围（-20°C至70°C）、前面板IP65防尘/防水保护、9 - 48VDC的宽范围电源DC输入和严格的工业等级保护等。
Product Category >>>> Modular Panel PC & Industrial Monitor
相关报导
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CS-W124
| Model Name | CS-W124 | |
|---|---|---|
| Display | LCD Size | 24” (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.27675 (H) x 0.27675 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 605 x 373 x 63.2 mm |
| Weight Information | 6.64 kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Front Bezel | |
| Power | Power Consumption | 48.51W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | |
| Relative Humidity | 80% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P2002 Series
| Model Name | P2002 | P2002E | |
|---|---|---|---|
| System | Processor | Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB | ||
| BIOS | AMI 64Mbit SPI BIOS | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 520 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1080 @60Hz), DB-15 | ||
| DVI-D | 1x DVI-D Connector (1920 x 1080 @ 60Hz) | ||
| Audio | Audio Codec | Realtek® ALC888, High-Definition Audio | |
| Speaker-out | 1x Speaker-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A) | ||
| Serial Port | 6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | |
| mSATA | 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | ||
| CFast | 1x CFast Socket (Gen3) | ||
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| PCI Express | • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L) | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 1x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface, Compact PCI Connector | ||
| Other Function | Instant Reboot | Support 0.2sec Instant Reboot technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| External Fan Connector | 1x External Fan Connector, 4-pin Terminal Block | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only) | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 220 x 54mm | 254.5 x 220 x 72 mm |
| Weight Information | 2.92 kg | 3.18 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| Operating Stystem | Microsoft® Windows® | Windows®10, Windows® 8.1, Windows® 7 | |
| Linux | Linux® Kernel 4.4 | ||
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 85C | ||
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
订购信息
| Model No. | Product Description |
|---|---|
| CS-W124C-R10/P2002-i5-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor and P-Cap. Touch |
| CS-W124C-R10/P2002E-i5-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x Reserved Expansion Slot |
| CS-W124C-R10/P2002E-i5-E4-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot |
| CS-W124C-R10/P2002E-i5-PI-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCI Expansion Slot |
| CS-W124C-R10/P2002-i3-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor and P-Cap. Touch |
| CS-W124C-R10/P2002E-i3-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x Reserved Expansion Slot |
| CS-W124C-R10/P2002E-i3-E4-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot |
| CS-W124C-R10/P2002E-i3-PI-R10 | 24" TFT-LCD 1500 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCI Expansion Slot |
| CS-W124C | P2002 (i3/i5) | P2002E (i3/i5/E4/PI) | |
|---|---|---|---|
| CS-W124C/P2002 | V | V | -- |
| CS-W124C/P2002E | V | -- | V |
| √ CS-W124/P2002 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Panel Mounting Kit x 1 | √ Screw Pack x 1 |
| √ Fan Terminal Block Connector x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ DIO Terminal Block Connector (Female) x 2 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports |
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only) |
| CFM-PoE101 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002E only) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot(For P2002E only) |
| RC-PI-01 | Riser Card with 1x PCI Slot(For P2002E only) |
| UB0503 | Universal Bracket with 2x DB9 Cutout |
| UB0504 | Universal Bracket with 4x DB9 Cutout |
| UB0511 | Universal Bracket with 2x RJ45 Cutout |
| UB0514 | Universal Bracket with 2x USB Cutout |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
