产品介绍

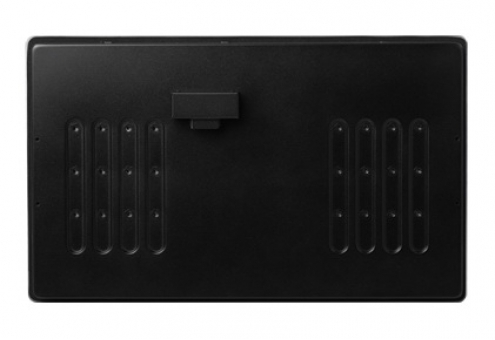

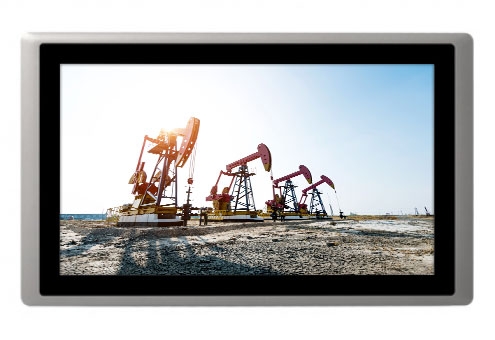

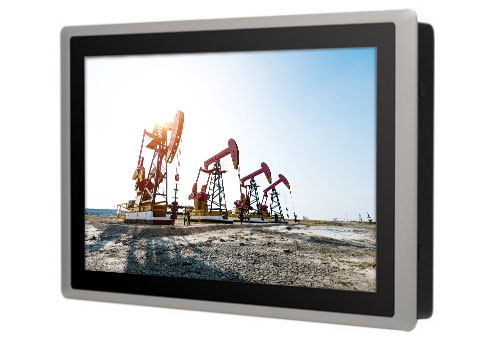

CS-W115FHC是15.6寸TFT-LCD的显示屏模块，1,500 nits超高亮度和1920 x 1080 (Full HD)分辨率，即使在任何明亮的环境光或阳光直射的环境下，都能够看到清晰的显示图像。CS-W115FHC是一款坚固可靠的显示解决方案，宽工作温度-10°C到70°C，具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，适用于工业应用和恶劣环境。在CDS模块化技术的支持下，CS-W115FHC可自行配置、升级和维护您的转换型显示系统。
详细规格
| Model Name | CS-W115FHC | |
|---|---|---|
| Display | LCD Size | 15.6" (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| Physical | Dimension (WxHxD) | 420 x 254 x 66.2 mm |
| Weight | 4.00kg | |
| Front Panel Construction | Rugged Aluminum Die-casting Front Bezel | |
| Reliability & Protection | Front Panel Protection | IP65 Compliant |
| Environment | Operating Temperature | -10°C to 70°C |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95%RH @ 39°C (non-condensing) | |
| EMC | CE, FCC, ICES-003 Class A | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10 | 15.6" TFT-LCD 1500 nits Full HD 16:9 Display Module with Projected Capacitive Touch |
| √ CS-W115FHC Display Module x 1 |
| √ Panel Mounting Kit x 1 |
