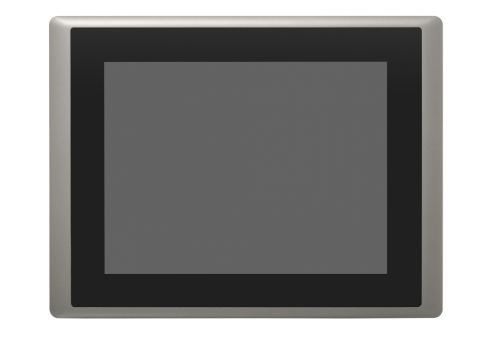

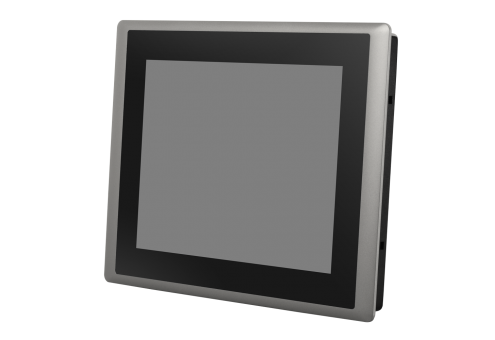

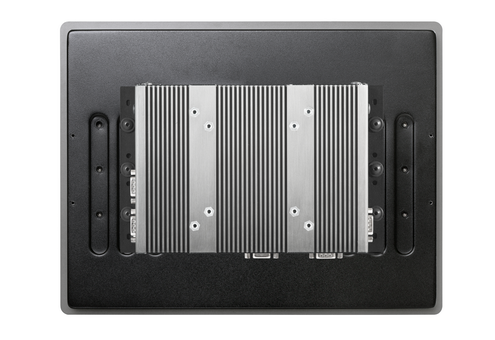

CV-112 / P1101
EOL Model
12.1" Intel® Atom® / Pentium® 处理器，节能无风扇工业平板电脑
产品特点
- 12.1" TFT-LCD SVGA 投射电容式或5线电阻式触摸屏
- 板载Intel® Atom® / Pentium® 处理器
- 支持三重独立显示（1个VGA, 1个DisplayPort，1个CDS界面）
- 丰富的I/O接口（2个GbE网口，4个USB 3.0，4个串口，8个独立DIO）
- 2个全尺寸Mini-PCIe插槽，1个2.5” SATA HDD / SSD托盘，1个mSATA插槽
- IP65防护等级的铝压铸前面板
- 支持CDS和CFM（功能扩展模块）技术，可扩展网口供电（POE）和智能点火控制（IGN）
- 支持面板安装、VESA安装、机架安装
产品介绍
CV-112/P1101系列是一款12.1寸的无风扇、节能、坚固耐用的工业平板电脑，具有450 nits高亮度和800 x 600 (SVGA)分辨率。采用Intel® Atom® / Pentium®处理器，支持三重独立显示（1个VGA, 1个DisplayPort，1个CDS界面），具有丰富的I/O接口，包括2个GbE网口，4个USB 3.0，4个串口，8个独立DIO，2个全尺寸Mini-PCIe插槽和1个SIM卡插槽，用于各种无线数据连接。另外还可通过即插即用的CFM模块，可方便地为各种应用添加智能点火控制（IGN）和网口供电（POE）功能。
CV-112/P1101系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
CV-112/P1101系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
详细规格
| Model Series | CV-112/P1101 | ||
| Model Name | CV-112R/P1101 | CV-112C/P1101 | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz | |
| Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buffered and non-ECC) | ||
| Graphics | • Integrated Intel® HD Graphics 505 • Supports Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort) | ||
| Audio | Realtek ALC888-GR | ||
| I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) | |
| DP | 1x DisplayPort (4K x 2K @60Hz) | ||
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210IT - GbE2: Intel® I210IT | ||
| Serial Port | 4x RS-232/422/485, DB9 with Auto Flow Control (Supports 5V/12V), DB9 | ||
| USB | 4x USB 3.0 (Type-A) | ||
| Isolated DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | ||
| Line-Out | 1x Phone Jack 3.5mm | ||
| Mic-In | 1x Phone Jack 3.5mm | ||
| Power Button | 1x ATX Power On/Off Button | ||
| Reset Button | 1x Rest Button | ||
| AT/ATX Switch | 1x AT/ATX Mode Switch | ||
| Clear CMOS Switch | 1x Clear CMOS Switch | ||
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) | |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | ||
| Expansion | PCI / PCIe | - | |
| CFM (Control Function Module) Interface | - Optional CFM IGN Module for Power Ignition Function - Optional CFM PoE Module for Power over Ethernet Function | ||
| CDS (Convertible Display System) Technology | 1x CDS Interface for Convertible Display Module | ||
| Mini PCI Express | 2x Full-size Mini-PCIe Sockets | ||
| SIM Socket | 1x SIM Socket | ||
| Antenna Holes | 4x Antenna Holes | ||
| Other Function | Instant Reboot | Support 0.2sec | |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Internal Speaker | AMP 2W + 2W | ||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Power Requirement | Power Type | AT/ATX | |
| Power Input Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W (Optional) | ||
| Physical | Dimension (WxHxD) | 345 x 265.3 x 69.85 mm | |
| Weight Information | 4.65 kg | ||
| Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | ||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | Yes | ||
| Protection | Reverse Power Input Protection | V | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | 15A | ||
| ESD Protection | +/-8kV (air), +/-4kV (contact) | ||
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | ||
| Operating System | Windows | Windows® 10 | |
| Linux | Support by project | ||
| Environment | Operating Temperature | -20°C to 70°C (with extended temperature peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 80% RH @ 40°C (Non-Condensing) | ||
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | ||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-112C-R10/P1101-E50-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch |
| CV-112R-R10/P1101-E50-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and Resistive 5-wire Touch |
| CV-112C-R10/P1101-N42-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch |
| CV-112R-R10/P1101-N42-R10 | 12.1" TFT-LCD SVGA 4:3 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and Resistive 5-wire Touch |
Package Checklist
| √ Panel PC x 1 | √ Power Terminal Block Connector x 1 |
| √ Utility DVD Driver x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Screw Pack x 1 | √ DIO Terminal Block Connector x 1 |
| √ Panel Mounting Kit x 1 | √ Thermal Pad (for CPU Thermal Block) x 1 |
Optional Accessories
| Model No. | Description |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
