入门工业平板电脑 (CV-100/P1000系列)

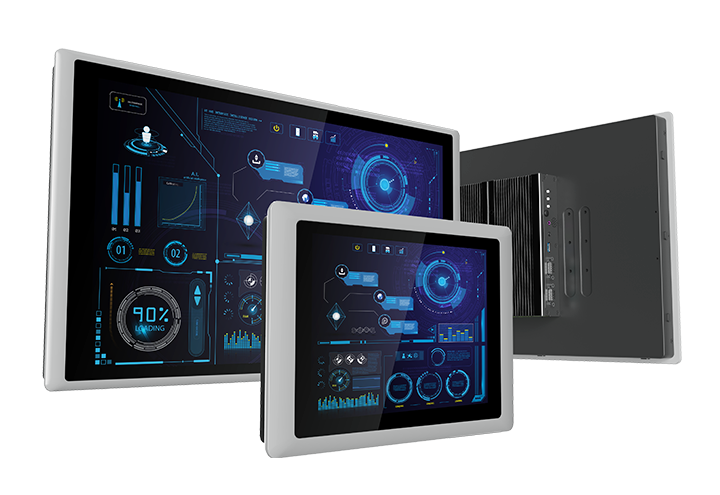

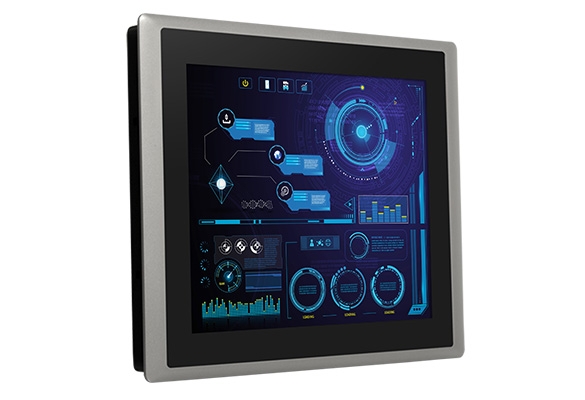

德承 CV-100/P1000 系列是一体化的节能工业平板电脑，集成了高分辨率的 TFT-LCD，触摸屏以及工业电脑。显示器尺寸有 8 寸到 24 寸多种选择，格式为 4:3 和 16:9。| Product | Model Name | Display | CPU | I/O | Expansion |
|---|---|---|---|---|---|
 | CV-108 / P1301 Series | 8.4" TFT 800x600 (4:3) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-108 / P1201 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-108 / P1101 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-108 / P1001 Series | 8.4" TFT 800x600 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-110 / P1301 Series | 10.4" TFT 800x600 (4:3) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-110 / P1201 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-110 / P1101 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-110 / P1001 Series | 10.4" TFT 800x600 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-110H / P1301 Series | 10.4" TFT 1024x768 (4:3) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-110H / P1201 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-110H / P1101 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-110H / P1001 Series | 10.4" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-112H / P1301 Series | 12.1" TFT 1024x768 (4:3) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-112H / P1201 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-112H / P1101 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-112H / P1001 Series | 12.1" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-115 / P1301 Series | 15" TFT 1024x768 (4:3) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-115 / P1201 Series | 15" TFT 1024x768 (4:3) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-115 / P1101 Series | 15" TFT 1024x768 (4:3) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-115 / P1001 Series | 15" TFT 1024x768 (4:3) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-117 / P1301 Series | 17" TFT 1280x1024 (5:4) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-117 / P1201 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-117 / P1101 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-117 / P1001 Series | 17" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-119 / P1301 Series | 19" TFT 1280x1024 (5:4) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-119 / P1201 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-119 / P1101 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-119 / P1001 Series | 19" TFT 1280x1024 (5:4) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W115 / P1301 Series | 15.6" TFT 1366x768 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W115 / P1201 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W115 / P1101 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W115 / P1001 Series | 15.6" TFT 1366x768 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
NEW  | CV-W115FH / P1301 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 3x 10Gbps USB3.2 Gen2x1 1x 480Mbps USB 2.0 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
NEW  | CV-W115FH / P1201 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 3x 10Gbps USB3.2 Gen2x1 1x 480Mbps USB 2.0 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
NEW  | CV-W115FH / P1101 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x 5Gbps USB3.2 Gen1 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
NEW  | CV-W115FH / P1001 Series | 15.6" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 1x 5Gbps USB3.2 Gen1 3x 480Mbps USB 2.0 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W121 / P1301 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W121 / P1201 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W121 / P1101 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W121 / P1001 Series | 21.5" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CV-W124 / P1301 Series | 24" TFT 1920x1080 (16:9) | Intel® Core i3-N305 Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CV-W124 / P1201 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CV-W124 / P1101 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CV-W124 / P1001 Series | 24" TFT 1920x1080 (16:9) | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
