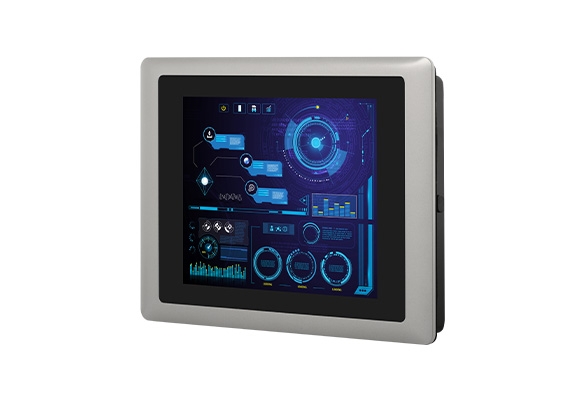

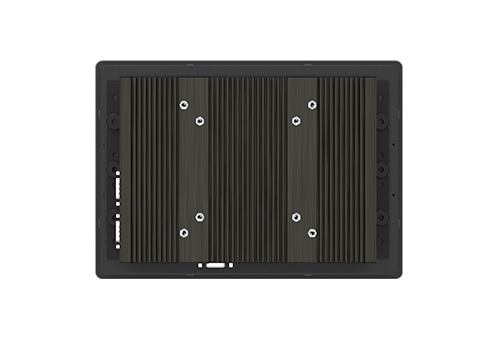

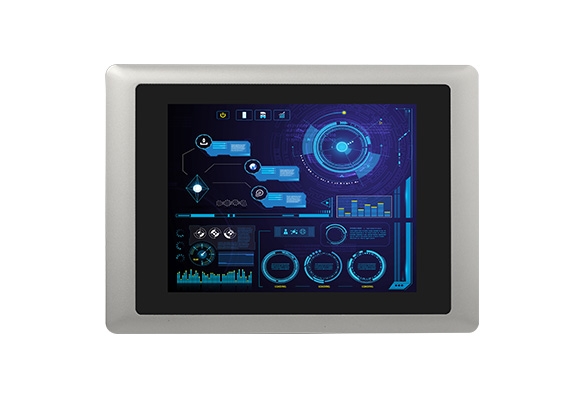

CV-108 / P1301 Series
8.4" TFT-LCD 节能工业平板电脑，搭载 Intel® Alder Lake-N 系列处理器
产品特点
- 8.4" TFT-LCD SVGA，配备电阻式 5 线触控 / 投射式电容触控
- 搭载 Intel® Alder Lake-N Core™ i3-N305, N97 处理器 和 Atom® x7425E 处理器
- 1 个 DDR5 SO-DIMM 插槽，支持最高 4800MHz 和 16GB 内存
- 1 个 M.2 Key E Type 2230 插槽，可扩展 无线网络 / Intel CNVi 模块
- 1 个 M.2 Key B Type 3042 / 3052 插槽，可扩展 5G / 存储 / 附加卡
- 前面板符合 IP65 标准
- 强固铝合金压铸前框设计
- 支持面板式 / VESA / 机架式安装
- 支持 Cincoze 专利 CDS 技术（专利号码 M482908）
产品介绍
CV-100/P1301 系列是一款模组化工业平板电脑，搭载 Intel® Alder Lake-N 处理器。齐全完整的荧幕尺寸选择与灵活的扩充性是特色之一，除原生丰富的 I/O 接口 (2.5 GbE LAN、USB 3.2 Gen 2 x1、COM 和 DIO) 外，也具备 M.2 Key B Type 3052、M.2 Key E Type 2230 扩充槽，还可利用独家 CFM 扩充模组增添 PoE/IGN 等功能。透过德承独家的 CDS 专利技术，对于未来电脑效能升级或是更换荧幕更加具备弹性。强固的 CV-100/P1301 系列可满足设备机台的 HMI 与生产流程可视化的多元应用。
Product Category >>>> Modular Panel PC & Industrial Monitor
AI 与多工运行的强悍效能
——
CV-100/P1301 系列搭载 Intel® 7 制程 Alder Lake-N 四核心处理器，与前一代 Elkhart Lake 平台相比，CPU Single – Thread效能提升高达 130%，Multi-thread 效能提升 109%。而处理器内建 UHD Graphics 显示晶片，其 AI 推论的物件辨识效能更是提升了 6.85倍。
升级、维修超方便
——
透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来需求，无论是更换荧幕或是系统效能提升，只需要换置单一组件即可达成，大幅节省升级成本。
Patent No. M482908齐全完整的产品组合
——
CV-100/P1301 系列拥有多样化的产品组合，从荧幕尺寸 (8.4 - 24 寸)、显示比例 (4:3 / 5:4 / 16:9) 到触控方式（多点电容式及单点电阻式），可针对应用需求进行选择。
强固、安全、更可靠
——
面对严苛险峻的使用环境，CV-100/P1301 系列备有一系列的工业级防护，包括宽工作温度范围（-20°C 至 70°C）、宽范围直流电源输入（9 至 48VDC）、IP65 前面板防护/防水等，有利于现场端 HMI 或生产流程可视化等应用。
视频
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CV-108 Series
| Model Name | CV-108R | CV-108C | |
|---|---|---|---|
| Display | LCD Size | 8.4" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 400 | ||
| Contrast Ratio | 600 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | ||
| Viewing Angle (H-V) | 150 / 130 | ||
| Backlight MTBF | 30,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 262 x 186.2 x 56.2 mm | |
| Weight Information | 1.62 kg | 1.56 kg | |
| Mechanical Construction | Die-Casting Flat Surface | ||
| Power | Power Consumption | 4.93W (Max.) | 4.88W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | ||
| Storage Temperature | -30°C to 80°C | -20°C to 70°C | |
| Relative Humidity | 90% RH @ 60°C (Non-condensing) | 85% RH @ 60°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |
| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD | • 1 x M.2 SSD Shared by M.2 Key B Socket | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | •
i3-N305 CPU - OS Idle Mode: 40.09 W - Full Loading: 48.59 W • N97 CPU - OS Idle Mode: 31.36 W - Full Loading: 34.04 W | |
| Inrush Current (Peak) | •
i3-N305 CPU: 5.538 A@12V • N97 CPU: 5.242 A@12V | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • Intel® Processor N97 / Atom® x7425E: -40°C to 70°C • Intel® Core™ i3-N305: -40°C to 60°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing) • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CV-108R-R10/P1301-N97-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and Resistive 5-wire Touch |
| CV-108C-R10/P1301-N97-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch |
| CV-108R-R10/P1301-X7425E-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and Resistive 5-wire Touch |
| CV-108C-R10/P1301-X7425E-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch |
| CV-108R-R10/P1301-i3-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and Resistive 5-wire Touch |
| CV-108C-R10/P1301-i3-R10 | 8.4“ TFT-LCD SVGA 4:3 Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch |
| CV-108R | CV-108C | P1301-N97 | P1301-X7425E | P1301-i3 | |
|---|---|---|---|---|---|
| CV-108R/P1301-N97 | V | -- | V | -- | -- |
| CV-108C/P1301-N97 | -- | V | V | -- | -- |
| CV-108R/P1301-X7425E | V | -- | -- | V | -- |
| CV-108C/P1301-X7425E | -- | V | -- | V | -- |
| CV-108R/P1301-i3 | V | -- | -- | -- | V |
| CV-108C/P1301-i3 | -- | V | -- | -- | V |
| • CV-108/P1301 Series Panel PC x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 2 | • DIO Terminal Block Connector x 1 |
| • Panel Mounting Kit x 4 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
