CV-112 / P2002
EOL Model

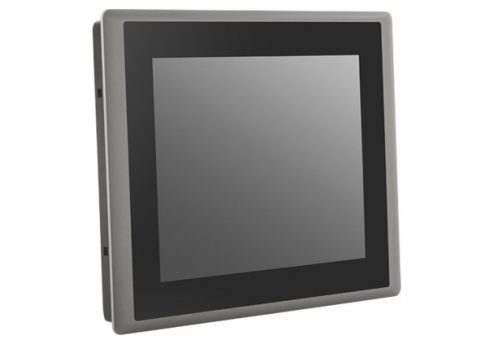

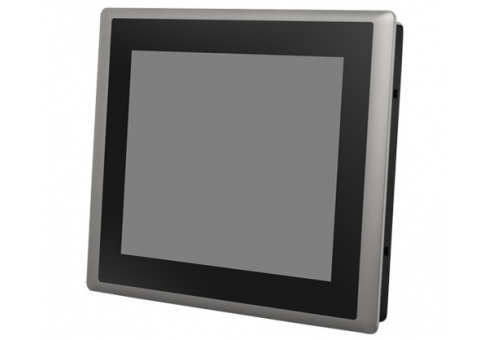

12.1" 第6代Intel® Core™ U系列处理器，高性能无风扇工业平板电脑，支持CFM和CDS技术
产品特点
- 12.1" SVGA TFT-LCD 投射电容式或5线电阻式触摸屏
- 板载第6代Intel® Core™ U 系列处理器（功耗15W）
- 2个DDR4 SO-DIMM内存插槽，可达32 GB
- 支持三重独立显示
- 2个2.5” SATA HDD / SSD托盘，1个mSATA和1个CFast插槽
- IP65防护等级的铝压铸前面板
- 2个全尺寸Mini-PCIe插槽，适用于各种I/O扩展
- 支持CFM（功能扩展模块）技术，可扩展网口供电（POE）和智能点火控制（IGN）
- 丰富的I/O接口（2个GbE网口，6个串口，5个USB，16个独立DIO）
- 支持即时重启技术
- 宽工作温度 -20°C 至 70°C
- 集成超级电容，无需维护电池
产品介绍
德承CV-112/P2000系列是一款12.1寸的高性能、无风扇、无跳帽、坚固耐用的工业平板电脑，采用第6代Intel® Core™ U系列处理器，具有更高的计算能力、更快的数据处理速度和提升40%的图形性能，而功耗仅为15W。支持CFM(控制功能模块)技术，通过德承自定义的接口集成电源升压和控制信号，可扩展网口供电（POE）和智能点火控制（IGN）。此外，还提供一系列的Mini-PCIe扩展卡(MEC)，通过通用支架可添加额外的I/O接口。CV-112/P2000系列配备了薄版和可扩展版(PCI/PCIe卡扩展版)，采用杰出的模块化设计理念，实现灵活性，以满足多功能的工业应用。
CV-112/P2000系列是一款真正坚固耐用的计算系统，支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，集成超级电容的设计，避免更换CMOS电池的高停机成本，而且绝对免维护。此外，即时重启的电路设计与机械应用同步并可快速恢复初始状态，可在现场非法断电后保护计算机及操作系统的安全 ，满足工业自动化中许多关键的应用需求。
CV-112/P2000系列是一款真正坚固耐用的计算系统，支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，集成超级电容的设计，避免更换CMOS电池的高停机成本，而且绝对免维护。此外，即时重启的电路设计与机械应用同步并可快速恢复初始状态，可在现场非法断电后保护计算机及操作系统的安全 ，满足工业自动化中许多关键的应用需求。
相关报导
详细规格
| Model Name | CV-112/P2002 | ||
| Model No. | CV-112R/P2002 | CV-112C/P2002 | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| Processor System | Onboard 6th Intel® Core™ U processors (Skylake) - Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) - Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) - TDP: 15 W - BIOS: AMI 64Mbit SPI BIOS | ||
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 32 GB (2133MHz, un-buffered and non-ECC type) | ||
| Graphics | Intel® HD Graphics 520 | ||
| Triple display with 1x VGA, 1x DVI-D and 1x CDS interface | |||
| Audio | Realtek® ALC888-GR | ||
| High Definition Audio | |||
| I/O Interface | 1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15 | ||
| 1x DVI-D (Up to 1920 x 1080 @ 60Hz) | |||
| 1x CDS Interface, Compact PCI Connector | |||
| 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45 - GbE1: Intel I219LM - GbE2: Intel I210IT | |||
| 2x PoE+ (with Optional CFM PoE Module) - Comply with IEEE 802.3at, Offers Up to 25.5W Per Port | |||
| 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |||
| 4x USB 3.0, Type-A | |||
| 1x USB 2.0, Type-A | |||
| 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block | |||
| 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |||
| 1x Power On/Off Switch | |||
| 1x Reset Button | |||
| 1x AT/ATX Switch | |||
| 1x Remote Power On/Off Connector, 2-Pin Terminal Block | |||
| 1x External FAN Connector, 4-Pin Terminal Block | |||
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) | ||
| 2x mSATA (One Shared by Mini-PCIe Socket) (Gen2) | |||
| 1x CFast Socket (Gen3) | |||
| Expansion | 1x CFM PoE interface | ||
| 1x CFM IGN interface | |||
| 2x Full-size Mini-PCIe Socket | |||
| 1x Universal I/O Bracket | |||
| 1x SIM Socket | |||
| 4x Antenna Hole | |||
| Other Function | Support CDS Technology | ||
| Support CFM Technology | |||
| Support Instant Reboot Technology (0.2 sec) | |||
| Support Power Ignition Sensing (IGN) | |||
| Support OSD Function (LCD On/Off, Brightness Up, Brightness Down for CDS Display Module) | |||
| Internal Speaker AMP 2W + 2W | |||
| SuperCap Integrated | |||
| Watchdog Timer: Software Programmable Supports 256 Levels System Reset | |||
| Power Requirement | Support AT/ATX Power Mode | ||
| Power Input Voltage 9~48VDC | |||
| One 3-pin Terminal Block Connector | |||
| Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W | |||
| Physical | Dimension (WxHxD): 345 x 265.3 x 82 mm | ||
| Weight: 6.08 kg | |||
| Die-cast Flat Surface | |||
| Supports Panel / VESA / *Rack Mounting (*with optional mounting kit) | |||
| Fanless Design | |||
| Jumper-less Design | |||
| Protection | Reverse Power Input Protection | ||
| Over Voltage Protection: Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection: 15A | |||
| ESD Protection: +/-8kV (air), +/-4kV (contact) | |||
| Surge Protection: 3kW | |||
| Operating Stystem | Windows® 10 Windows® 8.1 Windows® 7 | ||
| Linux® Kernel 4.4 | |||
| Environment | Operating Temperature: -20°C to 70°C (With extended temperature peripherals; Ambient with air flow According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) | ||
| Storage Temperature: -30°C to 80°C | |||
| Relative Humidity: 80% RH @ 40°C (Non-condensing) | |||
| IP Level: IP65 Compliant Front Panel | |||
| EMC: CE, FCC Class A | |||
订购信息
Available Models
Package Checklist
Optional Modules
Optional Accessories
| Model No. | Product Description |
| CV-112R-R10/P2002-i5-R10 | 12.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CV-112C-R10/P2002-i5-R10 | 12.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface |
| CV-112R-R10/P2002-i3-R10 | 12.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface |
| CV-112C-R10/P2002-i3-R10 | 12.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface |
Package Checklist
| √Panel PC x 1 |
| √Utility DVD Driver x 1 |
| √Power Terminal Block Connector x 1 |
| √Screw Pack x 1 |
| √Panel Mounting Kit x 1 |
| √Fan Terminal Block Connector x 1 |
| √DIO Terminal Block Connector x 2 |
| √Power On/Off Terminal Block Connector x 1 |
Optional Modules
| Model No. | Description |
| CFM-IGN100 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm) |
| CFM-PoE100 | PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For CV-100/P2002 only) |
| MEC-COM-M212-0503 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (154 x 17 mm) |
| MEC-COM-M334-0504 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm) |
| MEC-FIR-M003-0501 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (154 x 17 mm) |
| MEC-LAN-M102-30/UB0511 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2000 Series |
| MEC-USB-M002-0514 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (154 x 17 mm) |
| RC-E4-01 | Riser Card with 1x PCIex4 Slot |
| RC-PI-01 | Riser Card with 1x PCI Slot |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
