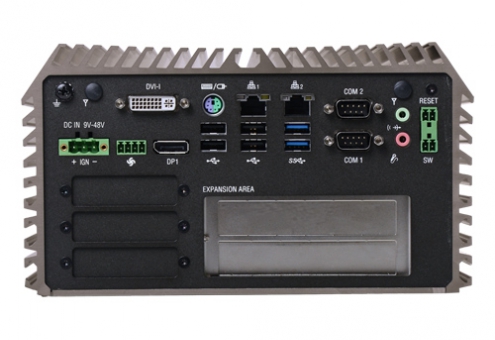

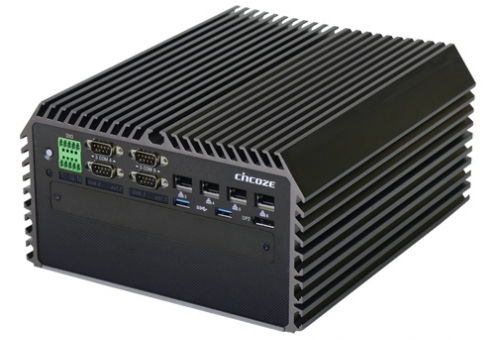

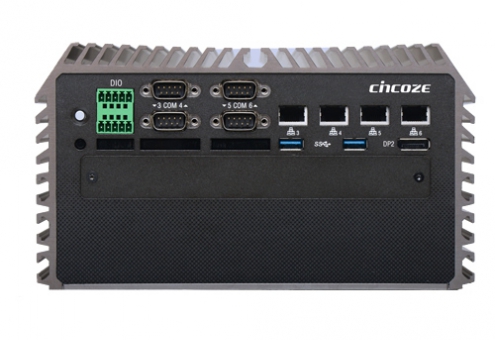

DS-1002P

EOL Model
第4代Intel® Core™ i3 / i5 / i7 处理器，高性能，扩展型和模块化的强固型嵌入式系统，带2个PCI/PCIe 扩展槽，支持4个Intel® GbE网口供电（POE）
产品特点
  • 支持第4代Intel® Core™ i3 / i5 / i7 台式机处理器（LGA1150）
  • 支持Intel® Q87芯片组
  • 2个DDR3 / DDR3L SO-DIMM内存插槽，最大可达16GB
  • 三重独立显示，1个DVI-I和2个DisplayPort
  • 6个Intel® GbE网口，其中4个网口可供电（POE），支持网络唤醒（Wake-on-LAN）和预启动执行环境（PXE）
  • 4个USB 3.0和4个USB 2.0
  • 6个RS232/422/485 串口，可供电5V/12V
  • 4个独立DI, 4个独立DO
  • 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘，支持RAID 0/1
  • 2个mSATA（1个与Mini-PCIe插槽共用）
  • 1个CFast卡和1个SIM卡插槽
  • 9~48VDC宽压电源输入，支持AT/ATX 模式
  • 2个Mini-PCIe插槽，支持Wi-Fi、GSM或I/O 扩展
  • 2个PCI/PCIe 扩展槽，可安装扩展卡（最大长度：235 mm）
  • 智能点火控制功能
  • EN50155铁路应用认证
加入咨询清单 规格表
产品介绍
DS-1002系列采用Intel® Q87芯片组，支持第4代Intel® Core™ i3 / i5 / i7 台式机处理器（LGA1150插槽式），是一款集成丰富I/O的无风扇嵌入式系统。支持宽压直流电源输入（9~48V），特殊设计的前面板为客户提供了硬盘、CMOS电池、CFast卡和SIM卡可快速更换功能，而此系统更可以灵活安装固定套件、内置或外置风扇、各种CMI接口扩展模块，满足了各种多功能、多用途的工业要求。

此外，DS-1002系列还支持2个PCI/PCIe扩展槽，具有不同的接口组合，用于扩展各种应用的扩展卡。具有完全无线材设计、特殊散热、防震抗冲击、内置电压保护、可靠的直流电源输入、反向电源保护、工业元器件选择等特点，结合优越的性能和创新的机械设计，DS-1002系列这款强固型嵌入式系统是工业应用的理想选择。
详细规格
Model NameDS-1002P-PEDS-1002P-EEDS-1002P-PP
Processor SystemCPUIntel® 4th Generation:
G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported
Frequency2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz
Core Number2 / 2 / 2 / 4
BIOSAMI 128Mbit SPI
ChipsetIntel® Q87
MemoryTechnologyDDR3 / DDR3L 1333MHz / 1600MHz
(un-buffered and non-ECC)
Max. Capacity16 GB
Socket2x 204-Pin SO-DIMM
DisplayVGAYes (w/ Optional Split Cable)
DDI (HDMI/DVI/DisplayPort)1x DVI
2x DisplayPort
Multiple DisplayTriple
ExpansionPCI1-2
PCIe1
(PCIe x16)		2
(PCIe x16, PCIe x1)		-
Mini PCIe2x Full-size Mini PCIe2x Full-size Mini PCIe2x Full-size Mini PCIe
EthernetControllerGbE1: Intel® 82583V,
GbE2: Intel® i217LM,
GbE3: Intel® 82583V,
GbE4: Intel® 82583V,
GbE5: Intel® 82583V,
GbE6: Intel® 82583V,
Support Wake-on-LAN and PXE
PoE4x 802.3at Compliant PoE Port
The Maximum DC Power Delivery on Each PoE is 25W@DC 56V Input
Speed10/100/1000 Mbps
AudioCodecRealtek ALC888S
Connector1x Mic-in,
1x Speak-out
WatchDog TimerSoftware Programmable
Supports 1~255 sec. System Reset
StorageSSD / HDD2x 2.5" SATA SSD/HDD Bay
mSATA2x mSATA
(1x Shared by Mini-PCIe Socket)
CompactFlash/CFast1x CFast
SIM Socket1
I/O PortsUSB 3.04
USB 2.04
DIO4 in/4 out
COM Port6x RS-232/422/485
PS/21x KB/MS
Antenna Hole2
Power Switch1
AT/ATX Switch1
External Fan ConnectorYes
Remote Power On/Off and Remote Power ResetYes
Universal I/O Bracket3
PowerPower TypeAT, ATX
Power Supply Voltage9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 24V/9.2A, 220W
EnvironmentOperating TemperatureAmbient with air flow: -10°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 80°C
Relative Humidity10%~95% (non-condensing)
PhysicalDimension
(WxDxH, mm)		227 x 261 x 126 mm
Weight5.70 kg
ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall
Operating SystemMicrosoft® Windows®• Windows® 8             • Windows® Embedded 8 Standard
• Windows® 7             • Windows® Embedded Standard 7
CertificationSafety Certifications• CE                             • EN 50155
• FCC Class A             • EN 50121-3-2
订购信息
Available Models
Model No.Product Description
DS-1002P-PP4th Gen. Intel® Core™ i3/ i5/ i7 Superior Performance Fanless Computer Integrate Q87 Chipset, 2x PCI Expansions, 4x PoE and 2x LAN
DS-1002P-EE4th Gen. Intel® Core™ i3/ i5/ i7 Superior Performance Fanless Computer Integrate Q87 Chipset, 1x PCIe x1 Expansion, 1x PCIe x16 Expansion, 4x PoE and 2x LAN
DS-1002P-PE4th Gen. Intel® Core™ i3/ i5/ i7 Superior Performance Fanless Computer Integrate Q87 Chipset, 1x PCI Expansion, 1x PCIe x16 Expansion, 4x PoE and 2x LAN

Package Checklist
DS-1002P
√ DS-1002P Embedded System x 1
√ Utility DVD Driver x 1
√ DIO Terminal Block Connector x 2
√ Power Terminal Block Connector x 1
√ Remote Power Terminal Block Connector x 2
√ External Fan Terminal Block Connector x 1
√ DVI-I to VGA Adapter x 1
√ Screw Pack x 1
√ Wall Mount Kit x 1
√ Heat Sink Kit x 1

Optional Accessories
Model No.Description
GS220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M
59381560000EMINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM
N0307-140507-01DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm
相关下载
Datasheet
文件名发行日期下载
DS-1002P Datasheet2017/07/05下载
Manual
文件名发行日期下载
DS-1000 Series Manual (V1.50)2018/11/20下载
Driver
文件名发行日期下载
DS-1000 Series RAID Driver (Windows Version)2016/01/08下载
DS-1000 Series Chipset Driver (Windows Version)2016/01/08下载
DS-1000 Series USB 3.0 Driver (Windows Version)2016/01/08下载
DS-1000 Series Audio Driver (Windows Version)2016/01/08下载
DS-1000 Series LAN Driver (Windows Version)2016/01/08下载
DS-1000 Series Rapid Storage Driver (Windows Version)2016/01/08下载
DS-1000 Series VGA Driver (Windows Version)2016/01/08下载
DS-1000 Series UART Driver (Windows Version)2016/01/08下载
DS-1000 Series IAMT 9.0 Driver (Windows Version)2016/01/08下载
DS-1000 Series MCU Series Driver (Windows Version)2016/01/08下载
