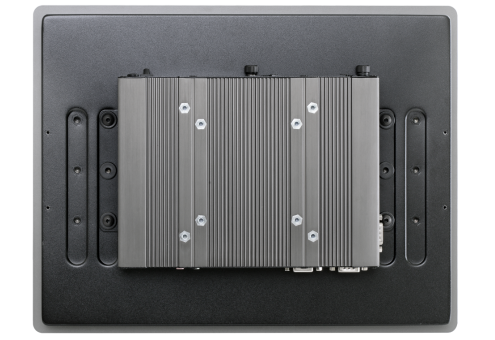

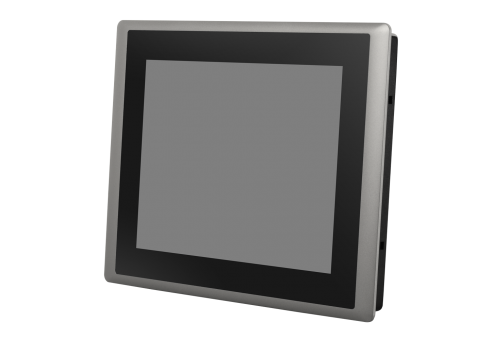

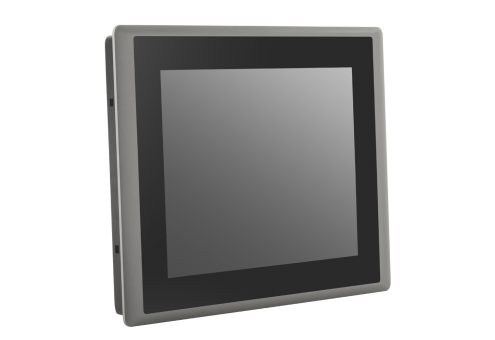

CV-112 / P1001E
EOL Model
12.1" Intel® Atom™ E3845处理器，节能、扩展型无风扇工业平板电脑
产品特点
- 12.1" TFT SVGA 4:3 LCD 投射电容式或5线电阻式触摸屏
- 板载Intel® Atom™ E3845 四核处理器，1.91GHz
- 1个DDR3L SO-DIMM内存插槽，最大可达8GB
- 1个2.5” SATA HDD / SSD托盘，1个CFast卡和1个SIM卡插槽
- 2个网口，4个USB，2个串口，1个VGA，1个DisplayPort，4个独立DI/4个独立DO
- 1个全尺寸Mini-PCIe插槽
- 2个通用挡片，可用于扩展
- IP65防护等级的铝压铸前面板
- 支持面板安装、VESA安装、机架安装
- 支持CDS技术
- 内建2个2W扬声器
产品介绍
CV-112/P1001E系列是一款12.1寸的无风扇、节能、具扩展性、坚固耐用的工业平板电脑，具有400 nits高亮度和800 x 600 (SVGA)分辨率。采用Intel® Atom™ E3845 四核1.91GHz处理器，提供丰富的I/O接口，包括2个网口，4个USB, 2个RS232/422/485串口，1个VGA，1个 DisplayPort，4个DI/4个DO，1个全尺寸Mini-PCIe插槽支持3G和WLAN。此外还有2个通用挡片，可用于额外的扩展。还支持3种类型的存储设备，包括2.5寸SATA硬盘，CFast和SIM卡，这些存储设备采用易访问性的设计，允许您快速的获取数据和易于维护。
CV-112/P1001E系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
CV-112/P1001E系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-20°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
详细规格
| Model Name | CV-112/P1001E | ||
| Model No. | CV-112R/P1001E | CV-112C/P1001E | |
| Display | LCD Size | 12.1" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 450 | ||
| Contrast Ratio | 800 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.3075 (H) x 0.3075 (V) | ||
| Viewing Angle (H-V) | 160 / 140 | ||
| Backlight MTBF | 50000 hrs (LED Backlignt) | ||
| Touch | Resistive 5-wire | V | - |
| Projected Capacitive | - | V | |
| Processor System | CPU | Intel Atom E3845 | |
| Core Number | 4 | ||
| Frequency | 1.91 GHz | ||
| Cache | 2 MB | ||
| Watts | 10W | ||
| Memory | Transfer Rate | DDR3L 1066/ 1333MHz (un-buffered and non-ECC) | |
| Max. Capacity | 8 GB | ||
| Socket | 1x 204-Pin SODIMM | ||
| Graphics | Chipset | Intel® HD Graphics | |
| Dual Display | VGA + DP VGA + CDS DP + CDS | ||
| Audio | Interface | Realtek ALC888-GR, High Definition Audio | |
| I/O Interface | VGA | 1x DB-15 connector, CH7517, Up to 1920x1080@60Hz | |
| DP | 1x DP connector, Up to 1920x1080@60Hz | ||
| LAN | 2x 10/100/1000 Mbps, RJ45 - GbE1: Intel I210IT - GbE2: Intel I210IT Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE | ||
| POE+ | - | ||
| Serial Port | 2x RS-232/422/485, DB9 Support 5V/12V | ||
| USB 3.0 | 1x USB 3.0, Type-A | ||
| USB 2.0 | 3x USB 2.0, Type-A | ||
| DIO | 4 in/4 out | ||
| Line-Out | 1x Phone Jack 3.5mm | ||
| Mic-In | 1x Phone Jack 3.5mm | ||
| Power on/off switch | V | ||
| Reset Button | V | ||
| AT/ATX Switch | V | ||
| Remote Power On/Off Connector | - | ||
| External FAN Connector | - | ||
| Storage | SSD/HDD | 1x Internal SATA port for 2.5” HDD/SSD | |
| mSATA | - | ||
| CFast | 1 | ||
| Expansion | PCI | - | |
| PCIe | - | ||
| CFM Interface (Control Function Module) | - | ||
| Mini PCI Express | 1x Full-size Mini PCIe | ||
| Universal I/O Bracket | 2 | ||
| SIM Socket | 1(internal) | ||
| Antenna Holes | 2 | ||
| Other Function | CDS Function | V | |
| OSD Function | LCD On/Off, Brightness Up/Down (With Display Module) | ||
| Power Ignition Sensing | - | ||
| Internal Speaker | AMP 2W + 2W | ||
| Super Cap | - | ||
| Instant Reboot | V | ||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Power Requirement | Power Type | AT/ATX | |
| Power Input Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 12V/5A, 60W | ||
| Physical | Dimension (WxHxD) | 345 x 265.3 x 88.35 mm | |
| Weight Information | 4.7 kg | ||
| Construction Front Panel | Die-cast Flat Surface | ||
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | ||
| Fanless Design | V | ||
| Cable-less Design | - | ||
| Jumper-less Design | - | ||
| Protection | Reverse Power Input Protection | V | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | ||
| Over Current Protection | 20A | ||
| ESD Protection | +/-8kV (air), +/-4kV (contact) | ||
| Operating Stystem | Windows | Windows® 10 Windows® 8.1 Windows® 7 | |
| Linux | Linux® Kernel 3.X | ||
| Environment | Operating Temperature | Ambient with air flow: -20°C to 70°C (with Industrial Grade Peripherals) | |
| StorageTemperature | -30°C to 80°C | ||
| Relative Humidity | 80% RH @ 40°C (Non-Condensing) | ||
| IP Level | IP 65 Compliant Front Panel | ||
| EMC | CE/ FCC Class A | ||
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| CV-112R/P1001E | 12.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
| CV-112C/P1001E | 12.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch, w/ Intel® Atom™ E3845 Quad Core, 4x USB, 2x COM, 1x VGA, 1x DisplayPort and 2x Universal I/O Bracket |
Package Checklist
| CV-112/P1001E |
| √ CV-112/P1001E Panel PC x 1 |
| √ Panel Mounting Kit x 1 |
| √ Utility DVD Driver x 1 |
| √ DIO Terminal Block Connector x 1 |
| √ Power Terminal Block Connector x 1 |
| √ HDD Screw Pack x 1 |
| √ Screw Pack x 1 |
Optional Accessories
| Model No. | Description |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
