产品介绍

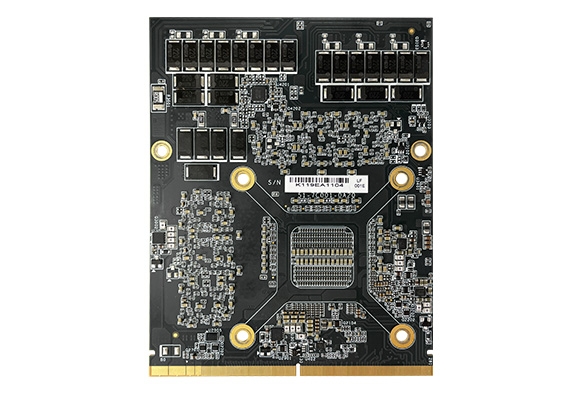

MXM-RTX3000 是一款嵌入式 MXM GPU 模块，采用先进的 NVIDIA Quadro GPU 和 NVIDIA® Turing™ GPU 技术，标准 MXM 3.1规范 Type B 。 MXM-RTX3000 拥有 1920 个 CUDA® 核心、30个RT核心、240 Tensor cores以及支援5.3 TFLOPS Peak FP32 和 6GB GDDR6 内存，可为边缘应用提供高性能的图像处理和分析。
详细规格
| GPU | NVIDIA® Quadro® RTX3000 |
|---|---|
| Memory | 6GB GDDR6 memory, 192-bit (Bandwidth: 336 GB/s) |
| CUDA Cores | 1920 CUDA® cores, 5.3 TFLOPS Peak FP32 performance |
| Tensor Cores | 240 Tensor Cores |
| Compute API | CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6, Vulkan 1.0 API |
| Display Outputs | 4x DisplayPort 1.4b digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen3 x16 support |
| Dimensions | 82 (W) x 105 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type B |
| Power Consumption | 80W |
| OS Support | Windows 10, Linux support by project |
订购信息
| Model No. | Product Description |
|---|---|
| MXM-RTX3000-R10 | Nvidia Quadro Embedded RTX3000 MXM Kit with Heatsink and Thermal Pad |
| √ NVIDIA® Quadro® Embedded RTX3000 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
| Model No. | Product Description |
|---|---|
| MXM-HSKB-02 | MXM Type B Heatsink Kit for MXM-RTX3000 |
* The MXM module kit includes a heat sink and thermal pads. The MXM Heat Sink Kit is intended for cases where an additional standalone heat sink and thermal pads are required.
