产品介绍

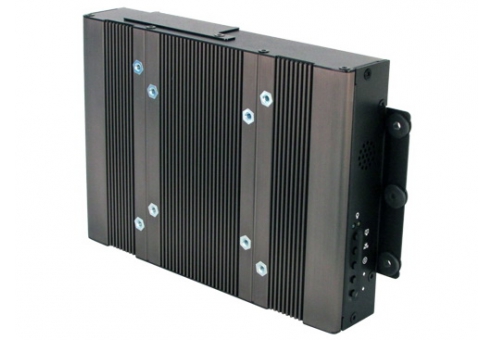

M1001是支持CDS模块化技术的显示器模块，兼容CDS显示屏模块，可搭配出不同尺寸的触摸显示器。同时提供数字和类比视频信号输入接口，包括VGA、DVI-D与DisplayPort。另外具有OSD多语言屏幕菜单式调节功能，并支持1个USB和1个COM端口作为触摸屏的连结控制。M1001支持从9到48V的宽压直流电源输入，并支持面板安装、壁挂安装和VESA安装，可部署于各种工业显示应用。
详细规格
| Model Name | M1001 | |
|---|---|---|

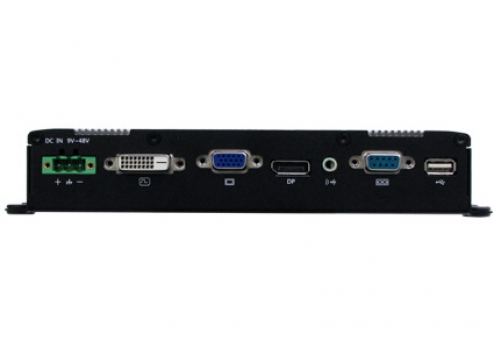

| System | VGA Input | 1 |
| DVI-D Input | 1 | |
| DisplayPort Input | 1 | |
| USB 2.0 Input | 1 | |
| COM Input | 1 | |
| Audio Input | ||
| 1 | ||
| Other Features | Audio | AMP 5W + 5W (Internal Speaker) |

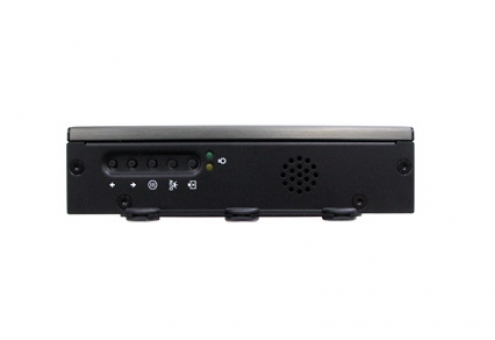

| OSD Function | LCD On/Off, Auto, Menu, Up and Down Multi-language OSD | |
| Power | Power Requirement | 9~48VDC |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Environment | Operating Temperature | Ambient with air flow: -5°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 10%~95% (non-condensing) | |
| Physical | Dimension (WxDxH) | 204.5x149x38.5mm |
| Weight | 1.12 kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS Mounting | |
| Certification | Safety Certifications | • CE • FCC Class A |
订购信息
| Model No. | Product Description |
|---|---|
| M1001 | Monitor Module with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort |
| M1001 |
| √ M1001 Monitor Module x 1 |
| √ Utility DVD Driver x 1 |
| √ USB Cable x 1 |
| √ VGA Cable x 1 |
| √ Power Terminal Block Connector (Female) x 1 |
| √ Screw Pack x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| DVI-D Cable | DVI-D male to DVI-D male Cable 1.8M |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
