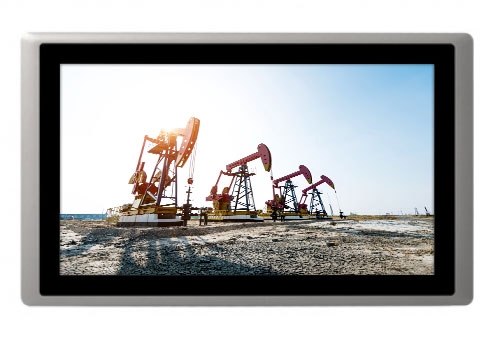

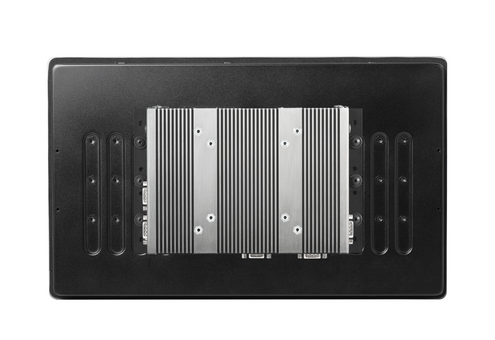

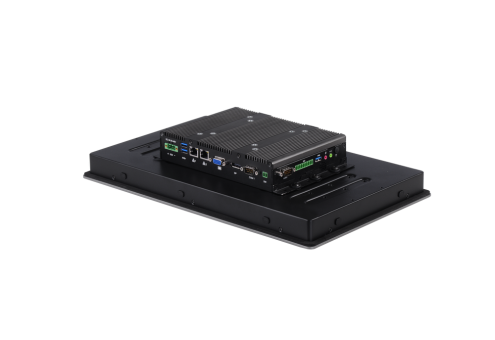

CS-W115FHC / P1101
EOL Model
15.6"TFT-LCD，搭载 Intel® Atom® / Pentium® 处理器，阳光下可视的节能无风扇工业平板电脑
产品特点
- 15.6" TFT-LCD 高达1,500 nits超高亮度，和1920 x 1080分辨率
- 板载Intel® Atom® / Pentium® 处理器
- 支持三重独立显示（1个VGA, 1个DisplayPort，1个CDS界面）
- 丰富的I/O接口（2个GbE网口，4个USB 3.0，4个串口，8个独立DIO）
- 2个全尺寸Mini-PCIe插槽，1个2.5" SATA HDD / SSD托盘，1个mSATA插槽
- 宽工作温度 -10°C 至 70°C
- IP65防护等级的铝压铸前面板
- 支持CDS和CFM（功能扩展模块）技术，可扩展网口供电（POE）和智能点火控制（IGN）
- 支持面板安装、VESA安装、机架安装
产品介绍
CS-W115FHC / P1101系列是一款15.6寸阳光下可视的节能工业平板电脑，具有1,500 nits高亮度和1920 x 1080分辨率。采用Intel® Atom® / Pentium®处理器，支持三重独立显示（1个VGA, 1个DisplayPort，1个CDS界面），具有丰富的I/O接口，包括2个GbE网口，4个USB 3.0，4个串口，8个独立DIO，2个全尺寸Mini-PCIe插槽和1个SIM卡插槽，用于各种无线数据连接。另外还可通过即插即用的CFM模块，可方便地为各种应用添加智能点火控制（IGN）和网口供电（POE）功能。
CS-W115FHC / P1101系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-10°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
CS-W115FHC / P1101系列还支持CDS技术，是一款可自行配置与升级的转换型显示系统，与普通的平板电脑相比更加灵活，并且大大降低了维护成本。支持从-10°C到70°C的宽工作温度，9V到48V的宽压直流电源输入，各种工业级保护，IP65 防尘/防水前面板，适用于各种恶劣的环境和关键应用的场合。
详细规格
| Model Name | CS-W115FHC / P1101 | |
|---|---|---|
| Display | LCD Size | 15.6” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| System | Processor | • Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| Memory | • 1x DDR3L 1333/1600/1866 MHz 204-Pin SO-DIMM Socket • Supports up to 8GB (un-buered and non-ECC) | |
| Graphics | Graphics Engine | Integrated Intel® HD Graphics 505 |
| Maximum Display Output | Supports Triple Independent Display (via VGA and DisplayPort outputs) | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Speaker-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |

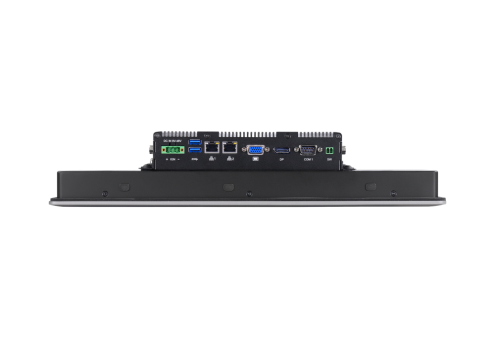

| External I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) |
| DP | 1x DisplayPort (4K x 2K @60Hz) | |
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 | |
| USB | 4x USB 3.0 (Type A) | |
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| CDS | Supports Convertible Display System (CDS) Technology | |
| DIO | DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block |
| Storage | SSD/HDD | 1x 2.5” HDD/SSD Drive Bay (SATA 3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | M.2 Express | 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| SIM Socket | 1x SIM Socket | |
| CFM (Control Function Module) Interface | Supports Control Function Module (CFM) Technology - Optional CFM IGN Module for Power Ignition Function - Optional CFM PoE Module for Power over Ethernet Function | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Power Ignition Sensing | 1x Ignition DIP Switch (12V/24V, need to work with CFM module) | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Power Adapter (Optional) | AC/DC 12V/5A 60W or AC/DC 24V/5A 120W | |
| Physical | Dimension (WxHxD) | 420 x 254 x 79.35mm |
| Weight Information | 5.49 Kg | |
| Front Panel Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | Fanless Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Surge Protection | 2 kV | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by Project | |
| Environment | Operating Temperature | -10°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10/P1101-E50-R10 | 15.6" TFT-LCD 16:9 Modular Touch Panel PC with Intel® Atom® E3950 Quad Core Processor and P-Cap. Touch |
| CS-W115FHC-R10/P1101-N42-R10 | 15.6" TFT-LCD 16:9 Modular Touch Panel PC with Intel® Pentium® N4200 Quad Core Processor and P-Cap. Touch |
| √ CS-W115FHC/P1101 Panel PC x 1 | √ DIO Terminal Block Connector x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 | √ Screws Pack x 1 |
| √ Remote Power On/Off Terminal Block Connector x 1 | √ Panel Mounting Kit x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
