DS-1001L
EOL Model
第4代Intel® Core™ i3 / i5 / i7 处理器，高性能，扩展型和模块化的强固型嵌入式系统，带1个PCI/PCIe 扩展槽，支持6个Intel® GbE网口

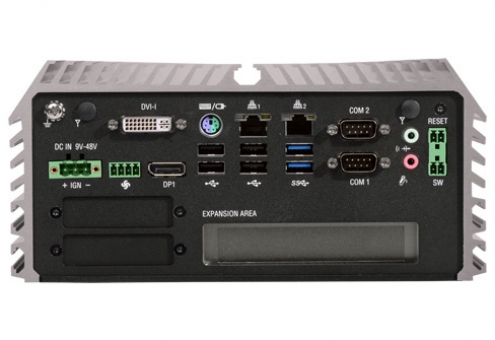

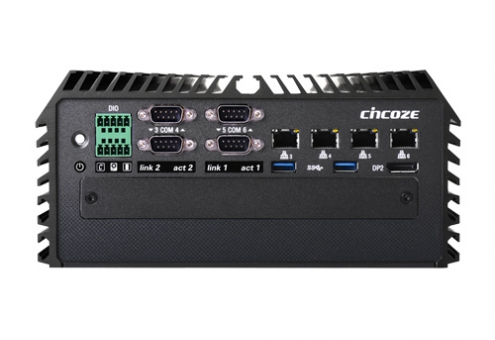

产品特点
- 支持第4代Intel® Core™ i3 / i5 / i7 台式机处理器（LGA1150）
- 支持Intel® Q87芯片组
- 2个DDR3 / DDR3L SO-DIMM内存插槽，最大可达16GB
- 三重独立显示，1个DVI-I和2个DisplayPort
- 6个Intel® GbE网口，支持网络唤醒（Wake-on-LAN）和预启动执行环境（PXE）
- 4个USB 3.0和4个USB 2.0
- 6个RS232/422/485 串口，可供电5V/12V
- 4个独立DI, 4个独立DO
- 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘，支持RAID 0/1
- 2个mSATA（1个与Mini-PCIe插槽共用）
- 1个CFast卡和1个SIM卡插槽
- 9~48VDC宽压电源输入，支持AT/ATX 模式
- 2个Mini-PCIe插槽，支持Wi-Fi、GSM或I/O 扩展
- 1个PCI/PCIe 扩展槽，可安装扩展卡（最大长度：235 mm）
- 智能点火控制功能
- EN50155铁路应用认证

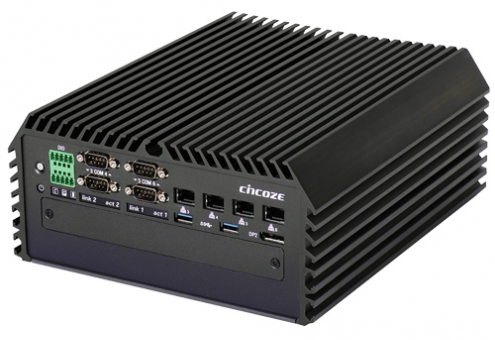

产品介绍
DS-1001系列采用Intel® Q87芯片组，支持第4代Intel® Core™ i3 / i5 / i7 台式机处理器（LGA1150插槽式），是一款集成丰富I/O的无风扇嵌入式系统。支持宽压直流电源输入（9~48V），特殊设计的前面板为客户提供了硬盘、CMOS电池、CFast卡和SIM卡可快速更换功能，而此系统更可以灵活安装固定套件、内置或外置风扇、各种CMI接口扩展模块，满足了各种多功能、多用途的工业要求。
此外，DS-1001系列还支持1个PCI/PCIe扩展槽，具有不同的接口组合，用于扩展各种应用的扩展卡。具有完全无线材设计、特殊散热、防震抗冲击、内置电压保护、可靠的直流电源输入、反向电源保护、工业元器件选择等特点，结合优越的性能和创新的机械设计，DS-1001系列这款强固型嵌入式系统是工业应用的理想选择。
此外，DS-1001系列还支持1个PCI/PCIe扩展槽，具有不同的接口组合，用于扩展各种应用的扩展卡。具有完全无线材设计、特殊散热、防震抗冲击、内置电压保护、可靠的直流电源输入、反向电源保护、工业元器件选择等特点，结合优越的性能和创新的机械设计，DS-1001系列这款强固型嵌入式系统是工业应用的理想选择。
详细规格
| Model Name | DS-1001L-E | DS-1001L-P | |
| Processor System | CPU | Intel® 4th Generation: G1820TE / i3-4330TE / i5-4570TE / i7-4770TE Supported | |
| Frequency | 2.2 GHz / 2.4 GHz / 2.7 GHz / 2.3 GHz | ||
| Core Number | 2 / 2 / 2 / 4 | ||
| BIOS | AMI 128Mbit SPI | ||
| Chipset | Intel® Q87 | ||
| Memory | Technology | DDR3 / DDR3L 1333MHz / 1600MHz (un-buffered and non-ECC) | |
| Max. Capacity | 16 GB | ||
| Socket | 2x 204-Pin SO-DIMM | ||
| Display | VGA | Yes (w/ Optional Split Cable) | |
| DDI (HDMI/DVI/DisplayPort) | 1x DVI 2x DisplayPort | ||
| Multiple Display | Triple | ||
| Expansion | PCI | - | 1 |
| PCIe | 1 (PCIe x16) | - | |
| Mini PCIe | 2x Full-size Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller | GbE1: Intel® 82583V, GbE2: Intel® i217LM, GbE3: Intel® 82583V, GbE4: Intel® 82583V, GbE5: Intel® 82583V, GbE6: Intel® 82583V, Support Wake-on-LAN and PXE | |
| PoE | - | ||
| Speed | 10/100/1000 Mbps | ||
| Audio | Codec | Realtek ALC888S | |
| Connector | 1x Mic-in, 1x Speak-out | ||
| WatchDog Timer | Software Programmable Supports 1~255 sec. System Reset | ||
| Storage | SSD / HDD | 2x 2.5" SATA SSD/HDD Bay | |
| mSATA | 2x mSATA (1x Shared by Mini-PCIe Socket) | ||
| CompactFlash/CFast | 1x CFast | ||
| SIM Socket | 1 | ||
| I/O Ports | USB 3.0 | 4 | |
| USB 2.0 | 4 | ||
| DIO | 4 in/4 out | ||
| COM Port | 6x RS-232/422/485 | ||
| PS/2 | 1x KB/MS | ||
| Antenna Hole | 2 | ||
| Power Switch | 1 | ||
| AT/ATX Switch | 1 | ||
| External Fan Connector | Yes | ||
| Remote Power On/Off and Remote Power Reset | Yes | ||
| Universal I/O Bracket | 2 | ||
| Power | Power Type | AT, ATX | |
| Power Supply Voltage | 9~48VDC | ||
| Connector | 3-pin Terminal Block | ||
| Power Adaptor | Optional AC/DC 24V/5A, 120W | ||
| Environment | Operating Temperature | Ambient with air flow: -10°C to 60°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -20°C to 80°C | ||
| Relative Humidity | 10%~95% (non-condensing) | ||
| Physical | Dimension (WxDxH, mm) | 227 x 261 x 106 mm | |
| Weight | 5.22 kg | ||
| Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall | ||
| Operating System | Microsoft® Windows® | • Windows® 8 • Windows® Embedded 8 Standard • Windows® 7 • Windows® Embedded Standard 7 | |
| Certification | Safety Certifications | • CE • EN 50155 • FCC Class A • EN 50121-3-2 | |
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DS-1001L-P | 4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset, 1x PCI Expansion and 6x LAN |
| DS-1001L-E | 4th Gen. Intel® Core™ i3 / i5 / i7 Superior Performance Fanless Computer Integrate Q87 Chipset, 1x PCIe x16 Expansion and 6x LAN |
Package Checklist
| DS-1001L |
| √ DS-1001L Embedded System x 1 |
| √ Utility DVD Driver x 1 |
| √ DIO Terminal Block Connector x 2 |
| √ Power Terminal Block Connector x 1 |
| √ Remote Power Terminal Block Connector x 2 |
| √ External Fan Terminal Block Connector x 1 |
| √ DVI-I to VGA Adapter x 1 |
| √ Screw Pack x 1 |
| √ Wall Mount Kit x 1 |
| √ Heat Sink Kit x 1 |
Optional Accessories
| Model No. | Description |
| GS120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M |
| 59381560000E | MINI-DIN(M) (PS/2 KB+MS) TO MINI-DIN(F) (PS/2 KB)+MINI-DIN(F) (PS/2 MS) L:10CM |
| N0307-140507-01 | DVI-I(M) TO DVI-D(F) + VGA(F) Cable, L=200mm |
