DC-1100
Intel® Atom™ E3845 四核处理器，节能和紧凑的强固型嵌入式系统，拥有2个Mini-PCIe扩展
产品特点
- 板载Intel® Atom™ E3845 四核处理器，1.91GHz
- 1个DDR3L SO-DIMM内存插槽，可达8GB
- 双重独立显示，1个DVI-I和1个DisplayPort
- 2个Intel® GbE网口，支持网络唤醒（Wake-on-LAN）和预启动执行环境（PXE）
- 1个USB 3.0和3个USB 2.0
- 4个RS232/422/485串口，可供电5V/12V
- 4个独立DI, 4个独立DO
- 1个2.5” SATA HDD / SSD托盘
- 1个CFast卡和1个SIM卡插槽
- 9~48VDC宽压电源输入，支持AT/ATX 模式
- 2个Mini-PCIe插槽，支持Wi-Fi、GSM或I/O 扩展
- 支持Mini-PCIe扩展的通用挡片
- E-Mark (E13, No.10R-0514062) 车载应用认证
产品介绍

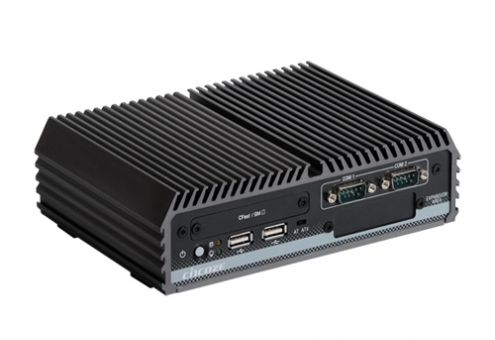

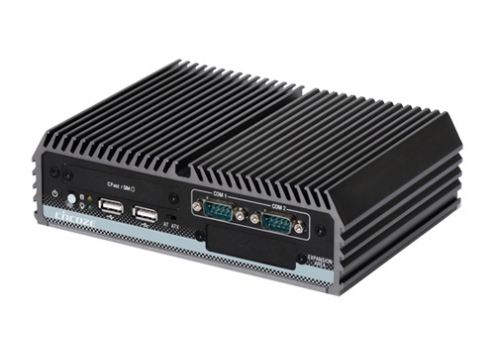

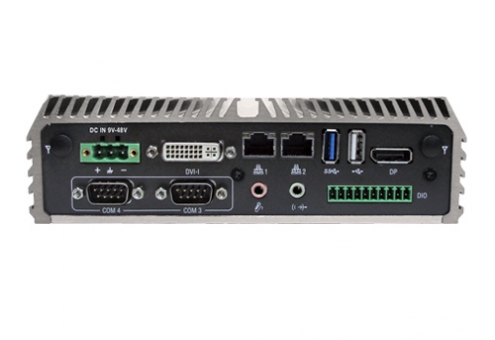

DC-1100是一款高性能紧凑型系统（W185 x D131 x H54mm），搭载Intel® Atom™ E3845四核1.91GHz处理器，丰富的I/O以及扩展能力，并支持USB 3.0技术，9~48V的宽压直流电源输入。
DC-1100具有无线材设计、特殊散热、防震抗冲击、工业元器件选择等特点，是一款可在恶劣环境下工作的强固型嵌入式系统，内置电压保护、可靠的直流电源输入和反向电源保护，使DC-1100成为工业应用中可靠安全的系统。
DC-1100具有无线材设计、特殊散热、防震抗冲击、工业元器件选择等特点，是一款可在恶劣环境下工作的强固型嵌入式系统，内置电压保护、可靠的直流电源输入和反向电源保护，使DC-1100成为工业应用中可靠安全的系统。
详细规格
| Model Name | DC-1100 | |
|---|---|---|
| Processor System | CPU | Intel® Atom™ E3845 |
| Frequency | 1.91 GHz | |
| Core Number | 4 | |
| BIOS | AMI 64Mbit SPI | |
| Chipset | - | |
| Memory | Technology | DDR3L 1066 / 1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | VGA | Yes (with optional split cable) |
| DDI (HDMI/DVI/DisplayPort) | 1x DVI 1x DisplayPort Connector (2560 x 1600) | |
| Multiple Display | Dual | |
| Expansion | PCI | - |
| PCIe | - | |
| Mini PCIe | 2x Full-size Mini PCIe | |
| Ethernet | Controller | GbE1: Intel® I210 GbE2: Intel® I210 Support Wake-on-LAN and PXE |
| PoE | - | |
| Speed | 10/100/1000 Mbps | |
| Audio | Codec | Realtek ALC888S |
| Connector | 1x Mic-in 1x Speak-out | |
| WatchDog Timer | Software Programmable Supports 256 Levles System Reset | |
| Storage | SSD / HDD | 1x 2.5" SATA HDD Bay |
| mSATA | - | |
| CompactFlash/CFast | 1x CFast | |
| SIM Socket | 1 | |
| I/O Ports | USB | 1x 5Gbps USB 3.2 Gen1, Type A 3x 480Mbps USB 2.0, Type A |
| DIO | 4 in/4 out | |
| COM Port | 4x RS-232/422/485 | |
| PS/2 | - | |
| Antenna Hole | 2 | |
| Power Switch | 1 | |
| AT/ATX Switch | 1 | |
| External Fan Connector | - | |
| Remote Power On/Off and Remote Power Reset | - | |
| Universal I/O Bracket | 1 | |
| Power | Power Type | AT, ATX |
| Power Supply Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Environment | Operating Temperature | -25°C to 70°C (With extended temperature peripherals; Ambient with Air Flow by IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -30°C to 85°C | |
| Relative Humidity | 10%~95% (Non-Condensing) | |
| Shock | 50 Grms (With SSD According to IEC 60068-2-27, Half Sine, 11ms Duration) | |
| Vibration: Random | 5 Grms (With SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Physical | Dimension (WxDxH) | 185 x 131 x 56.15 mm |
| Weight | 1.58 kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Optional Side / VESA / DIN-Rail Mounting | |
| Operating System | Microsoft® | • Windows® 10 • Windows® 8.1 • Windows® 7 |
| Linux® | • Supports By Project | |
订购信息
| Model No. | Product Description |
|---|---|
| DC-1100-R10 | Intel® Atom™ E3845 Quad Core™ Compact Size Fanless Computer and 2x Mini-PCIe Expansion |
| √ DC-1100 Embedded System x 1 | √ DVI-I to VGA Adapter x 1 |
| √ DIO Terminal Block Connector x 1 | √ Screw Pack x 1 |
| √ Power Terminal Block Connector x 1 | √ Wall Mount Kit x 1 |
| Model No. | Description |
|---|---|
| MEC-LAN-M102-15 / UB0111 | Mini-PCIe Module with 2x LAN Ports, 2x 15cm cable, 1x Universal Bracket with 2x RJ45 Cutout for DC-1100 |
| Model No. | Description |
|---|---|
| GSM60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J, Level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13 ,H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
| VESA-DC | DC series VESA Mount Kit |
| SIDE-DC | DC series SIDE Mount Kit |
| DINRAIL | Diamond series DIN-RAIL Mount Kit |
