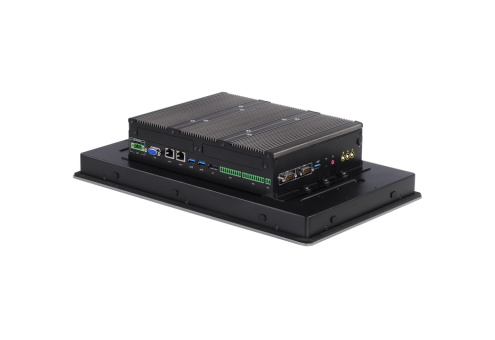

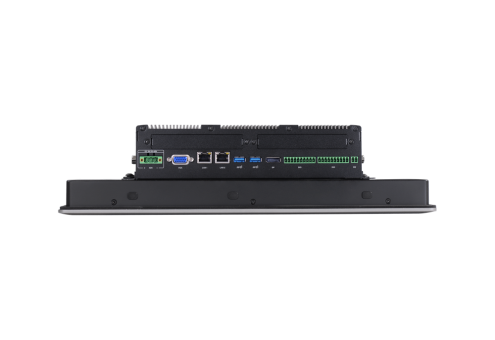

CS-W115FHC / P2102E
EOL Model
15.6" TFT-LCD阳光下可视的高性能无风扇工业平板电脑，搭载第8代Intel® Core™ U系列处理器，支持CFM和CDS技术及PCI/PCIe扩展
产品特点
- 15.6” TFT-LCD 高达1,500 nits超高亮度，和1920 x 1080分辨率
- 搭载第8代Intel® Core™ U 系列处理器
- 2个DDR4 SO-DIMM内存插槽，最大可达2400MHz, 64GB
- 支持三重独立显示
- 集成USB 3.2 Gen 2支持高达10Gbps
- 1个M.2 E Key插槽，可支持无线模块或Intel CRF模块
- 支持智能点火控制功能（可选配的CFM模块）
- 支持2个PoE+（可选配的CFM模块）
- 1个PCI/PCIe 扩展槽，可安装扩展卡（含托架最大长度：180 mm）
- 宽工作温度-10°C到70°C
- 前框坚固铝压铸设计
- 真正全平面，IP 65防护等级的前面板
- 支持面板/ VESA /机架安装
产品介绍

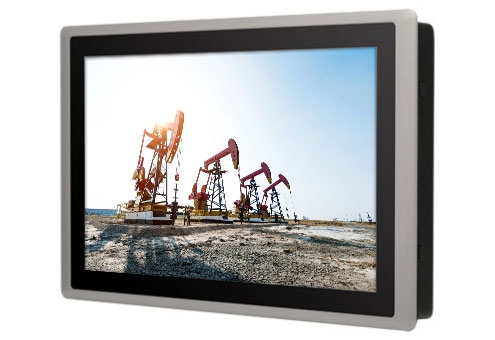

CS-W115FHC / P2102E 是一款 15.6 寸高效阳光下可视工业平板电脑，具有1,500 nits高亮度和1920 x 1080高画质分辨率，即便户外使用也能显示高优质图像。 CS-W115FHC / P2102E 搭载第8代Intel® Core™ U系列移动式处理器，与第6代Intel® Core™ U系列相比，在TDP 15W功耗下，计算性能提升84%。为实现更快的响应速度并轻松处理多项任务，CS-W115FHC / P2102E配备两个 DDR4 2400 SODIMM 插槽，内存高达 64 GB。
对于扩展需求，CS-W115FHC / P2102E有1个PCI/PCIe x4、1个M.2 2230 E Key 和2个全尺寸Mini-PCIe插槽，可以安装各种附加卡来增加所需的功能。此外，CS-W115FHC / P2102E支持CFM技术，可以通过附加模块来增加智能点火控制与网口供电（POE）功能。CS-W115FHC / P2102E具有严密的工业保护、IP65防尘/防水前面板、无风扇/无跳频设计、宽工作温度(-10°C至70°C)、宽压直流电源输入(9~48 VDC)，适用于各种恶劣环境和关键工业应用。
此外，CS-W115FHC / P2102E支持德承专利的CDS模块化技术，允许用户现场轻松替换显示屏模块或系统模块，从而减少维护成本和停机时间。
对于扩展需求，CS-W115FHC / P2102E有1个PCI/PCIe x4、1个M.2 2230 E Key 和2个全尺寸Mini-PCIe插槽，可以安装各种附加卡来增加所需的功能。此外，CS-W115FHC / P2102E支持CFM技术，可以通过附加模块来增加智能点火控制与网口供电（POE）功能。CS-W115FHC / P2102E具有严密的工业保护、IP65防尘/防水前面板、无风扇/无跳频设计、宽工作温度(-10°C至70°C)、宽压直流电源输入(9~48 VDC)，适用于各种恶劣环境和关键工业应用。
此外，CS-W115FHC / P2102E支持德承专利的CDS模块化技术，允许用户现场轻松替换显示屏模块或系统模块，从而减少维护成本和停机时间。
详细规格
| Model Name | CS-W115FHC / P2102E | |
|---|---|---|
| Display | LCD Size | 15.6” (16:9) |
| Max. Resolution | 1920x1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.17925 (H) x 0.17925 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50000 hrs (LED Backlignt) | |
| Touch | Resistive 5-wire | - |
| Projected Capacitive | V | |
| System | Processor | • Onboard 8th Intel® Core™ U Processors (Whiskey Lake) - Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) - Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) - TDP: 15 W |
| Memory | • 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket • Supports up to 64 GB (un-buffered and non-ECC) | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 |
| Maximum Display Output | Supports Triple Independent Display (via VGA and DisplayPort Outputs) | |
| Audio | Audio Codec | Realtek ALC888-GR |
| Line-out | 1x Speaker-out Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| External I/O Interface | VGA | 1x VGA (1920 x 1200 @60Hz) |
| DP | 1x DisplayPort (4096 x 2304 @ 60Hz) | |
| LAN | • 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 | |
| USB | • 3x USB 3.2 Gen2 (Type A) • 2x USB 2.0 (Type A) | |
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| DIO | DIO | 16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) |
| RAID | Supports RAID 0/1 | |
| Expansion | M.2 Express | 1x M.2 2230 E Key for Socket Wireless Module, Supports Intel CRF Module |
| PCI Express | 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) | |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| SIM Socket | 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | 2x Control Function Module (CFM) Interface | |
| Other Function | Internal Speaker | AMP 2W + 2W |
| Power Ignition Sensing | 1x Ignition DIP Switch (12V/24V, need to work with CFM module) | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Rest Button | 1x Reset Button | |
| Instant Reboot | Supports Instant Reboot Technology (0.2 sec) | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Power Adapter (Optional) | AC/DC 12V/5A 60W, 24V/5A 120W or 24V/9.2A 220W | |
| Physical | Dimension (WxHxD) | 420 x 254 x 98.5 mm |
| Weight Information | 6.75 Kg | |
| Mechanical Construction | Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis | |
| Mounting | Panel / VESA / *Rack Mounting (*with optional mounting kit) | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Surge Protection | 2 kV | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| ESD Protection | +/-8kV (air), +/-4kV (contact) | |
| Operating System | Windows | • Windows® 10 |
| Linux | Support by Project | |
| Environment | Operating Temperature | -10°C to 70°C (with Extended Temperature Peripherals; Ambient with Air Flow) |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 95% RH @ 39°C (Non-Condensing) | |
| Shock | Operating, 15 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 1.5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | CE, FCC, ICES-003 Class A | |
| IP Level | IP65 Compliant Front Panel | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W115FHC-R10/P2102E-i5-R10 | 15.6” TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
| CS-W115FHC-R10/P2102E-i3-R10 | 15.6” TFT-LCD Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch |
| √ CS-W115FHC/P2102E Panel PC x 1 | √ DIO Terminal Block Connector x 2 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Utility Driver DVD x 1 |
| √ Power Terminal Block Connector x 1 | √ Screws Pack x 5 |
| √ Remote Power On/Off Terminal Block Connector x 1 | √ Panel Mounting Kit x 1 |
| √ PCI / PCIe Card Installation Kit x 1 |
| Model No. | Description |
|---|---|
| RC-E4-02 | Riser Card with 1x PCIe x4 Slot for P2102E |
| RC-PI-02 | Riser Card with 1x PCI Slot for P2102E |
| MEC-COM-M212-TDB9/UB1203 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-COM-M334-TDB9/2xUB1203 | Mini-PCIe Module with 2x RS-232 Serial Ports, 2x Thin DB9 Cable |
| MEC-USB-M102-30/UB1214 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 15cm cable / 1x Universal Bracket with 2x USB Cutout |
| MEC-LAN-M102-30/UB1211 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable |
| CFM-PoE05 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
