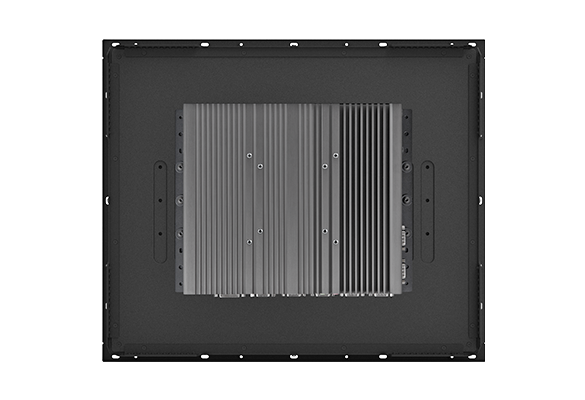

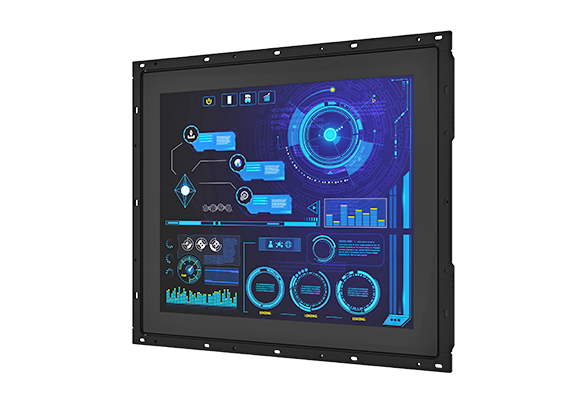

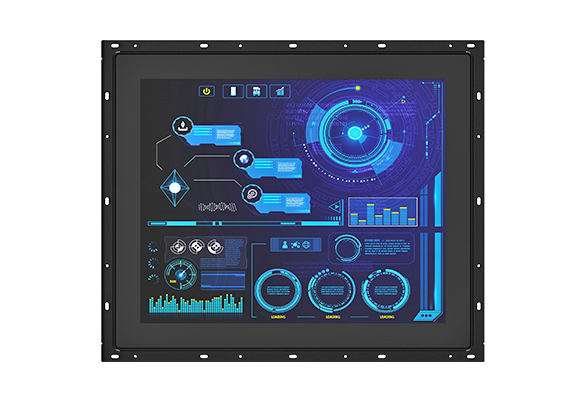

CO-119C / P2002 Series

19" TFT-LCD 开放式架构平板电脑，搭载第 6 代 Intel® Core™ U 系列处理器，配备 CFM 和 CDS 技术

产品特点

19" TFT-LCD 投射电容式触控
Intel® 第6代 Core™ 处理器 U 系列（15W）
2 个 DDR4 SO-DIMM 插槽，支持最高 32 GB
可调整安装支架设计
支持平板 / 标准 / VESA / 机架式安装
前面板符合 IP65 标准
宽工作温度范围
Cincoze 专利 CDS 技术支持

产品介绍
详细规格
订购信息
相关下载

产品介绍

All new open frame panel pc - CO-100/P2002 Series Fits Any Machine Perfectly

德承高效能开放式架构平板电脑，采用 Intel® Core U 系列处理器，除了拥有高效能的数据处理与图形运算能力外，仅 15 W 低功耗也是特色亮点。全系列支持 CFM 技术，能依据需求扩展所需功能，如智能点火控制 (IGN) 及以太网供电功能 (PoE)。其一体式设计、专属可调式安装支架及支持多款安装模式，能结合于不同材质、厚度的机柜外壳，其强固设计也兼顾工业严苛环境现场端的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor

高效能低功耗

——

Intel® Core U 系列处理器，除了拥有高效能的数据处理与图形运算能力外，仅 15 W 低功耗也是特色亮点 ; 支持高达 64G 内存与 2 x 2.5 寸 HDD/SSD。

CDS
专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换面板尺寸或是系统效能提升，只需换置单一模块即可达成，大幅节省升级成本。

Patent No. M482908

灵活弹性应用更广

——

提供 Mini-PCIe 及 PCI/PCIe 扩展插槽，满足用户安装数据采集卡、运动控制卡及 I/O 扩展等各种应用。

[ PCI/PCIe 扩展插槽适用机型 : CO-119C/P2002E ]

可调式设计
安装简易

——

专属可调式安装支架，拥有厚度调整的选择及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427

一体式设计

——

弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。

强固可靠兼具
耐用度提升

——

前框 IP65 防水防尘、无风扇、9-48V 宽压电源输入及 0℃~60℃ 宽温设计，在严峻的工业环境中，均能稳定持续运作，高度满足工业现场端 HMI 的应用需求。

wide temperature support (0-60°C) front IP65 dustproof and waterproof protection

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CO-119C

Model Name		CO-119C
Display	LCD Size	• 19” (5:4)
	Max. Resolution	• 1280 x 1024
	Brightness (cd/m2)	• 350
	Contrast Ratio	• 1000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	• 170 / 160
	Backlight MTBF	• 50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	• Projected Capacitive Touch
Physical	Dimension (W x D x H)	• 472.8 x 397.5 x 63mm
	Weight	• 6.91kg
	Construction	• One-piece and Slim Bezel Design
	Mounting Type	• Flat / Standard / VESA / Rack Mount
	Mounting Bracket	• Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Power	Power Consumption	• 21W (Max.)
Protection	Ingress Protection	• Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	• -20°C - 60°C
	Humidity	• 80% RH @ 50°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P2002 Series

Model Name		P2002	P2002E
System	Processor	Onboard 6th Intel® Core™ U processors (Skylake) • Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz) • Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz) • TDP: 15 W
	Memory	2x DDR4 2133 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 32 GB
	BIOS	AMI 64Mbit SPI BIOS
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 520
	Maximum Display Output	Supports Triple Independent Display
	CDS	1x CDS Connector for Cincoze Display Module
	VGA	1x VGA Connector(1920 x 1080 @60Hz), DB-15
	DVI-D	1x DVI-D Connector (1920 x 1080 @ 60Hz)
Audio	Audio Codec	Realtek® ALC888, High-Definition Audio
	Speaker-out	1x Speaker-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210
	USB	4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)
	Serial Port	6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
Storage	SSD/HDD	2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
	mSATA	2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
	CFast	1x CFast Socket (Gen3)
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	PCI Express		• 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) • maximum dimension of add-on card: 100mm x 200mm (H x L)
	SIM Socket	1 x Front Accessible SIM Socket
	Universal Bracket	1x Universal I/O Bracket
	CFM (Control Function Module) Interface	2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other Function	Instant Reboot	Support 0.2sec Instant Reboot technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Reset Button	1x Reset Button
	External Fan Connector	1x External Fan Connector, 4-pin Terminal Block
Power	Power Button	1x ATX Power On/Off Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A 60W or 24V/5A 120W 1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	254.5 x 220 x 54mm	254.5 x 220 x 72 mm
	Weight Information	2.92 kg	3.18 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating Stystem	Microsoft® Windows®	Windows®10, Windows® 8.1, Windows® 7
Operating Stystem	Linux	Linux® Kernel 4.4
Environment	Operating Temperature	Ambient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 85C
	Relative Humidity	95% RH @ 40˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

订购信息

Available Models
Model No.	Product Description
CO-119C-R10/P2002-i5-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i5-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i5-E4-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CO-119C-R10/P2002E-i5-PI-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion
CO-119C-R10/P2002-i3-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer
CO-119C-R10/P2002E-i3-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface
CO-119C-R10/P2002E-i3-E4-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface, 1x PCIex4 Expansion
CO-119C-R10/P2002E-i3-PI-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Module with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Expandable Fanless Computer, CFM Interface, CDS Interface, 1x PCI Expansion

Model Configuration
	CO-119C	P2002 (i3/i5)	P2002E (i3/i5/E4/PI)
CO-119C/P2002	V	V	--
CO-119C/P2002E	V	--	V

Package Checklist
• CO-119C/P2002 Series Panel PC x 1	• DIO Terminal Block Connector x 2
• Wall / CDS Mounting Kit x 1	• Remote Power On/Off Terminal Block Connector x 1
• Power Terminal Block Connector x 1	• Screw Pack x 1
• Fan Terminal Block Connector x 1

Optional Modules and Accessories
Model No.	Description
CFM-IGN100	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100	CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 15 mm)(For P2002 only)
CFM-PoE101	CFM Module with PoE Control Function, Individual Port 25.5W (50 x 44 x 33 mm) (For P2002E only)
RC-E4-01	Riser Card with 1x PCIex4 Slot (For P2002E only)
RC-PI-01	Riser Card with 1x PCI Slot (For P2002E only)
MEC-COM-M212	Mini-PCIe Module with 2x COM Ports
MEC-COM-M334	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable
UB0503	1x Universal Bracket with 2x DB9 Cutout (154 x 17 mm)
UB0504	1x Universal Bracket with 4x DB9 Cutout (154 x 17 mm)
UB0511	1x Universal Bracket with 2x RJ45 Cutout (154 x 17 mm)
UB0514	1x Universal Bracket with 2x USB Cutout (154 x 17 mm)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN (For P2002E only)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
