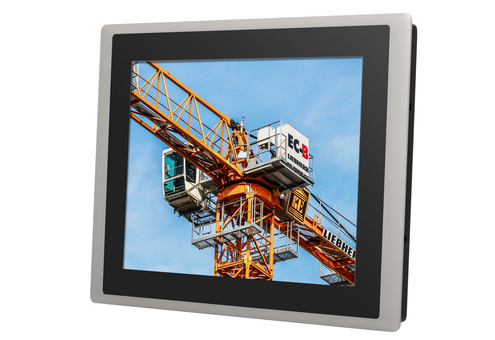

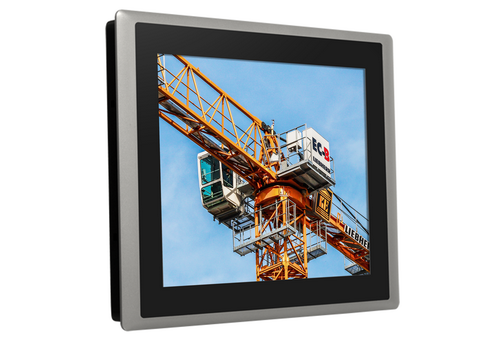

CS-112H / P2102 Series
12.1" 第8代Intel® Core™ U系列处理器，阳光下可视的高性能无风扇工业平板电脑，支持CFM和CDS技术
产品特点
- 12.1" TFT-LCD，具有高达 1,500 尼特的超高亮度和 1024 x 768 (XGA) 分辨率
- 板载第 8 代 Intel® Core™ U 系列处理器
- 2x DDR4 SO-DIMM 插槽，最高支持 2400MHz，64GB
- 支持三重独立显示
- 集成 USB 3.2 Gen 2 支持高达 10Gbps
- 用于无线模块或 Intel CRF 模块的 M.2 E 密钥插座
- 支持点火感应功能 (IGN)（带有可选的 CFM 模块）
- 支持 2x PoE+ 功能（可选 CFM 模块）
- 宽范围工作温度 -20°C 至 70°C
- 采用坚固的铝压铸前挡板设计
- True Flat IP65 兼容前面板保护
- 支持面板/VESA/机架安装
- 2x 通用支架（仅适用于 P2102E）
产品介绍
CS-112H/P2102 系列是一款 12.1吋 TFT-LCD 阳光下可视工业平板电脑，拥有充足的屏幕亮度，可提供户外使用时更好的观看图像质量。平板电脑搭载Intel® 第八代Core™ U 系列处理器，出色的运算能力与第 6 代 Intel® Core™ U 系列相比，15W TDP提高了 84%。为了拥有更快的响应速度与同时处理多项任务，CS-112H/P2102 系列配备了两个 DDR4 2400 SODIMM插槽，内存最高可支持 64 GB。
CS-112H/P2102 系列拥有轻巧的体积，可安装在空间有限的环境中，且提供了丰富的 I/O以实现不同的连接。针对无线传输，CS-112H/P2102 系列具有 1x M.2 2230 E key 和 2 x全尺寸 Mini-PCIe 插槽，可安装各种附加卡以实现 Wi-Fi、3G 和 LTE 通信。此外，CS-112H/P2102 系列也支持 CFM 模块，可根据用户需求增加网口供电(PoE)和智能点火控制(IGN)功能。 CS-112H/P2102 系列具有严格的工业级保护、如宽范围工作温度（-20°C 至 70°C）、IP65 前面板防尘/防水和宽范围直流电源输入（9 – 48VDC），适用于恶劣环境在阳光直射下的户外应用。
此外，CS-112H/P2102系列透过德承专利的CDS (Convertible Display System)技术，可轻松更换显示模块或系统模块，不仅易于维护也保留未来快速升级的弹性。
Product Category >>>> Modular Panel PC & Industrial Monitor
CS-112H/P2102 系列拥有轻巧的体积，可安装在空间有限的环境中，且提供了丰富的 I/O以实现不同的连接。针对无线传输，CS-112H/P2102 系列具有 1x M.2 2230 E key 和 2 x全尺寸 Mini-PCIe 插槽，可安装各种附加卡以实现 Wi-Fi、3G 和 LTE 通信。此外，CS-112H/P2102 系列也支持 CFM 模块，可根据用户需求增加网口供电(PoE)和智能点火控制(IGN)功能。 CS-112H/P2102 系列具有严格的工业级保护、如宽范围工作温度（-20°C 至 70°C）、IP65 前面板防尘/防水和宽范围直流电源输入（9 – 48VDC），适用于恶劣环境在阳光直射下的户外应用。
此外，CS-112H/P2102系列透过德承专利的CDS (Convertible Display System)技术，可轻松更换显示模块或系统模块，不仅易于维护也保留未来快速升级的弹性。
Product Category >>>> Modular Panel PC & Industrial Monitor
相关报导
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CS-112H
| Model Name | CS-112HC | |
|---|---|---|
| Display | LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 (XGA) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 700 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.24 (H) x 0.24 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 345 x 265.3 x 57 mm |
| Weight Information | 3.16 kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Power | Power Consumption | 16.22W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | |
| Relative Humidity | 90% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P2102 Series
| Model Name | P2102 | P2102E | |
|---|---|---|---|
| System | Processor | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) • TDP: 15 W | |
| Memory | 2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 64 GB | ||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 | |
| Maximum Display Output | Supports Triple Independent Display | ||
| CDS | 1x CDS Connector for Cincoze Display Module | ||
| VGA | 1x VGA Connector(1920 x 1200 @60Hz) | ||
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz | ||
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio | |
| Line-out | 1x Line-out, Phone Jack 3.5mm | ||
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | ||
| I/O | LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210 | |
| USB | 3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A) | ||
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | ||
| DIO | 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block | ||
| Storage | SSD/HDD | 2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1 | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Sockets | |
| PCI Express | 1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm | ||
| M.2 E Key Socket | 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module | ||
| SIM Socket | 1 x Front Accessible SIM Socket | ||
| Universal Bracket | 2x Universal I/O Bracket | ||
| CFM (Control Function Module) Interface | 2x CFM Interface for optional IGN or PoE Module Expansion | ||
| CDS (Convertible Display System) Technology | 1x Convertible Display System (CDS) Interface | ||
| Other Function | Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Instant Reboot | Support 0.2sec Instant Reboot technology | ||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | ||
| Internal Speaker | AMP 2W + 2W | ||
| OSD Function | LCD On/Off, Brightness Up, Brightness Down | ||
| Reset Button | 1x Reset Button | ||
| Power | Power Button | 1x ATX Power On/Off Switch | |
| Power Mode Switch | 1x AT/ATX Mode Switch | ||
| Power Input | 1x 3-pin Terminal Block Connector with Power Input 9~48VDC | ||
| Power Adapter (Optional) | 1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W | ||
| Remote Power On/Off | 1x Remote Power On/Off Connector, 2-pin Terminal Block | ||
| Physical | Dimension ( W x D x H ) | 254.5 x 190 x 41.5 mm | 254.5 x 190 x 61 mm |
| Weight Information | 2.2 kg | 2.7 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | ||
| Mounting | Wall / VESA / CDS / DIN Rail | ||
| Physical Design | Fanless Design Jumper-less Design | ||
| Reliability & Protection | Reverse Power Input | Yes | |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover | ||
| Over Current Protection | 15A | ||
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | ||
| MTBF | 231,243 hours | ||
| Operating Stystem | Microsoft® Windows® | Windows®10 | |
| Linux | Supports by project | ||
| Environment | Operating Temperature | Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals) | |
| Storage Temperature | -40°C to 70°C | ||
| Relative humidity | 95% RH @ 70˚C (Non-condensing) | ||
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN62368-1 | ||
| Fire Protection | EN 45545-2 | ||
订购信息
| Model No. | Product Description |
|---|---|
| CS-112HC-R11/P2102-i5-R10 | 12.1" 1500nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
| CS-112HC-R11/P2102E-i5-R10 | 12.1" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch |
| CS-112HC-R11/P2102-i3-R10 | 12.1" 1500nits TFT-LCD Sunlight Readable and Modular Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch |
| CS-112HC-R11/P2102E-i3-R10 | 12.1" 1500nits TFT-LCD Sunlight Readable, Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Quad Core Processor and P-Cap. Touch |
| CS-112HC | P2102 (i3/i5) | P2102E (i3/i5) | |
|---|---|---|---|
| CS-112HC/P2102 | V | V | -- |
| CS-112HC/P2102E | V | -- | V |
| √ CS-112H/P2102 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Panel Mounting Kit x 1 | √ Screw Pack x 5 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ DIO Terminal Block Connector (Female) x 2 |
| Model No. | Description |
|---|---|
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only) |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm (For P2102E Only) |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports (For P2102E Only) |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-PoE04 | PoE Control Function Module, Individual Port 25.5W (For P2102 only) |
| CFM-PoE05 | PoE Control Function Module, Individual Port 25.5W (For P2102E only) |
| RC-E4-02 | Riser Card with 1x PCIex4 Slot (For P2102E only) |
| RC-PI-02 | Riser Card with 1x PCI Slot (For P2102E only) |
| UB1203 | Universal Bracket with 2x DB9 Cutout (For P2102E only) |
| UB1211 | Universal Bracket with 2x RJ45 Cutout (For P2102E only) |
| UB1214 | Universal Bracket with 2x USB Cutout (For P2102E only) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M |
