产品介绍

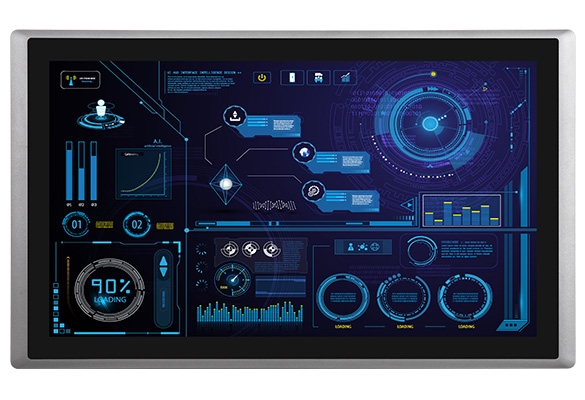

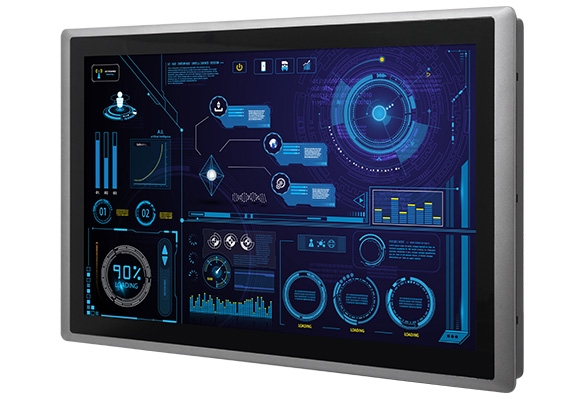

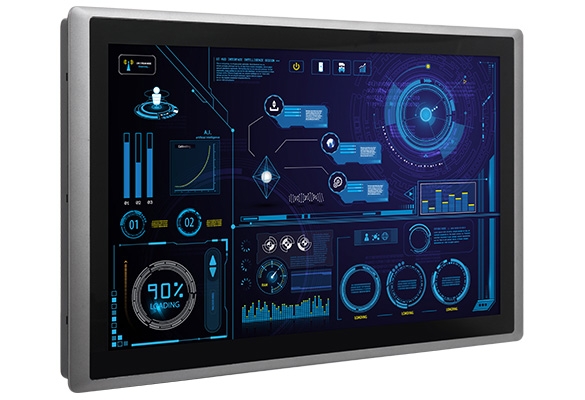

CV-W124是24寸的液晶显示屏模块，带投射电容式或5线电阻式触摸屏、无触摸功能显示屏。提供分辨率高达1920 x 1080 (Full HD) 和300 nits的亮度。CV-W124具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。在CDS模块化技术的支持下，CV-W124可透过免维护的操作，自行配置与升级您的转换型显示系统。
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CV-W124 Series
| Model Name | CV-W124R | CV-W124C | CV-W124G | |
|---|---|---|---|---|
| Display | LCD Size | 24” (16:9) | ||
| Max. Resolution | 1920 x 1080 | |||
| Brightness (cd/m2) | 300 | |||
| Contrast Ratio | 5000 : 1 | |||
| LCD Color | 16.7M | |||
| Pixel Pitch (mm) | 0.27675 (H) x 0.27675 (V) | |||
| Viewing Angle (H-V) | 178 / 178 | |||
| Backlight MTBF | 50,000 hrs (LED Backlight) | |||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive | Glass Screen |
| Physical | Dimension (W x D x H) | 605 x 373 x 63.2 mm | ||
| Weight Information | 6.92 kg | 6.64 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | |||
| Power | Power Consumption | 23.8W (Max.) | 23.75W (Max.) | 23.3W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant | ||
| Operating Temperature | Ambient with Air flow: -20°C to 70°C (with Industrial Grade Peripherals) | |||
| Storage Temperature | -30°C to 80°C | |||
| Relative Humidity | 80% RH @ 50°C (non-Condensing) | |||
| Vibration | Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ P2102E only, according to IEC60068-2-6) | |||
| EMC | CE, UKCA, FCC, ICES-003 Class A | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |||
订购信息
| Model No. | Product Description |
|---|---|
| CV-W124R-R10 | 24" TFT Full HD 16:9 Display Module with Resistive 5-wire Touch |
| CV-W124C-R11 | 24" TFT Full HD 16:9 Display Module with Projected Capacitive Touch |
| CV-W124G-R10 | 24" TFT Full HD 16:9 Display Module without Touch |
| √ CV-W124 Series Display Module x 1 | √ Panel Mounting Kit x 1 |
