产品介绍

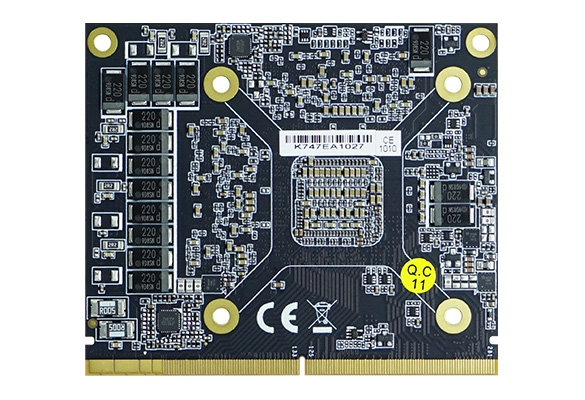

MXM-T1000 是一款嵌入式 MXM GPU 模块，采用先进的 NVIDIA Quadro GPU 和 NVIDIA® Turing™ GPU 技术，标准 MXM 3.1规范 Type A 。 MXM-T1000 拥有 896 个 CUDA® 核心、2.6 TFLOPS Peak FP32 和 4GB GDDR6 内存，可为边缘应用提供高性能的图像处理和分析。
详细规格
| GPU | NVIDIA® Quadro® T1000 | |
|---|---|---|
| Memory | 4GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s) | |
| CUDA Cores | 896 CUDA® cores, 2.6TFLOPS peak FP32 performance | |
| Compute API | CUDA Toolkit 8.0 and above, CUDA Compute version 6.1 and above, OpenCL™ 1.2 | |
| Graphics API | DirectX® 12, OpenGL 4.6, Vulkan 1.0 API | |
| Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz | |
| Interface | MXM 3.1, PCI Express Gen3 x16 support | |
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm | |
| Interface | PCI Express Gen3 x8 support | |
| Dimensions | 82 (W) x 70 (D) mm | |
| Form Factor | Standard MXM 3.1 Type A | |
| Power Consumption | 50W | |
| OS Support | Windows 10, Linux support by project | |
订购信息
| Model No. | Product Description |
|---|---|
| MXM-T1000-R10 | Nvidia Quadro Embedded T1000 MXM Kit with Heatsink and Thermal Pad |
| √ NVIDIA® Quadro® Embedded T1000 GPU card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
