产品介绍

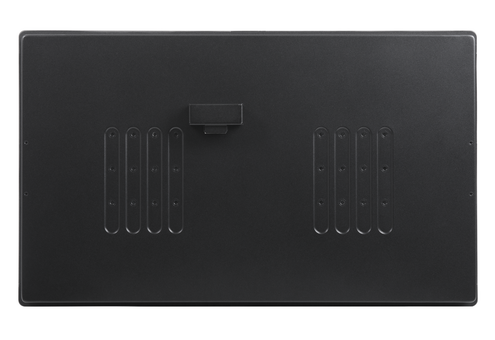

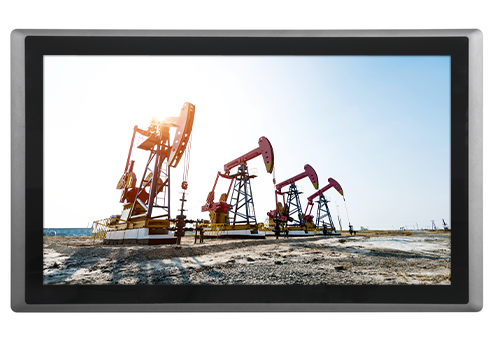

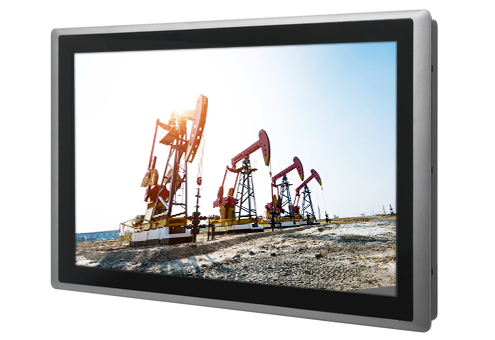

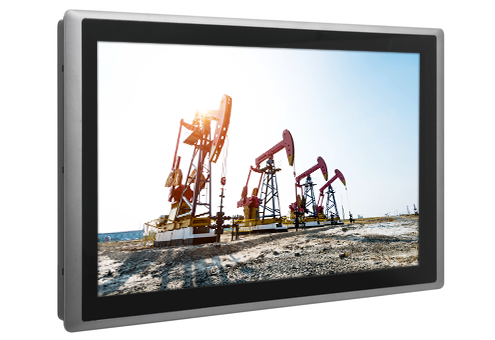

CS-W124C是24寸TFT-LCD的投射式电容触摸显示屏模块，1,500 nits高亮度和1920 x 1080分辨率，即使在任何明亮的环境光或阳光直射的环境下，都能够看到清晰的显示图像。 CS-W124C是一款坚固可靠具有全平面和IP65防尘/防水的前面板。其前框架采用铝压铸制造，适用于工业应用和恶劣环境。在CDS模块化技术的支持下，CS-W124C可自行配置、升级和维护您的转换型显示系统。
相关报导
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CS-W124
| Model Name | CS-W124 | |
|---|---|---|
| Display | LCD Size | 24” (16:9) |
| Max. Resolution | 1920 x 1080 (Full HD) | |
| Brightness (cd/m2) | 1500 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch (mm) | 0.27675 (H) x 0.27675 (V) | |
| Viewing Angle (H-V) | 178 / 178 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 605 x 373 x 63.2 mm |
| Weight Information | 6.64 kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Front Bezel | |
| Power | Power Consumption | 48.51W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -30°C to 80°C | |
| Relative Humidity | 80% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-W124C-R10 | 24" TFT-LCD 1500 nits Full HD 16:9 Display Module with Projected Capacitive Touch |
| √ CS-W124C Display Module x 1 | √ Panel Mounting Kit x 1 |
