产品介绍

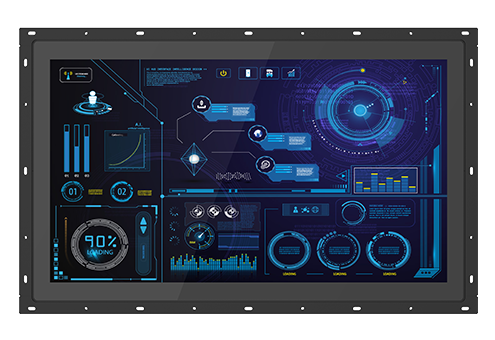

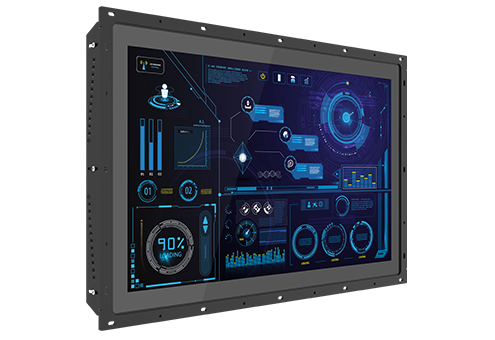

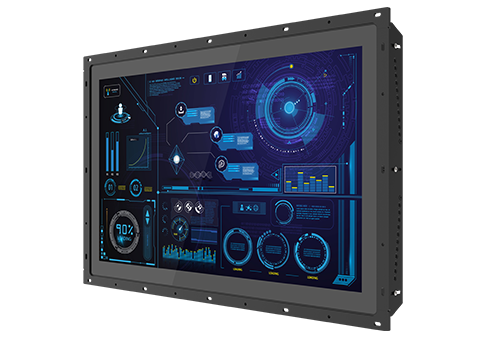

德承开放式架构工业平板电脑系列 (CO-100/P1201)，搭载 Intel® Elkhart Lake Atom® 处理器，除了丰富 I/O 接口 (GbE LAN、USB3.2、COM、DIO 等)，与灵活的扩展性 (Mini PCIe、M.2 Key E Type 2230、CFM PoE/IGN) 外，亮点来自其可调式设计 (Patent No.: D224544, D224545, I802427)，透过多段刻度的调整与锁固方式，能大幅提升安装的便利度，有效降低与设备整合时的客制幅度，是专为设备制造商所开发而成的产品。不但能结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端 HMI 的应用需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
CPU 处理性能大幅提升
——
CO-100/P1201 系列可搭载 Intel® Elkhart Lake 平台 Atom® x6425E 四核处理器，Elkhart Lake 与上一代 Apollo Lake 相比，CPU Single - Thread 效能提升 1.7 倍，Multi-thread 效能提升 1.5 倍。图形效能也提升了 2 倍。且支持高达 3200 MHz 的 DDR4 32GB 内存。
CDS 专利技术
——
透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需换置单一组件即可达成，大幅节省升级成本。
Patent No. M482908安装简易
——
德承专属的可调式安装支架，拥有厚度调整的选择以及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。
Patent No.: D224544, D224545, I802427
一体式设计
——
弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。
强固、安全、更可靠
——
CO-100/P1201 系列具备一系列工业级防护，如无风扇设计、宽工作温度范围（0°C 至 60°C）、宽范围直流电源输入（9 至 48VDC）、IP65 前面板防尘/防水等，能在严峻的工业环境中，执行现场端 HMI 的应用。
视频
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight MTBF | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Power | Power Consumption | 24.8W (Max.) |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1201
| Model Name | P1201 | |
|---|---|---|
| System | Processor | • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| Memory | • 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| COM | 3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A | |
| DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| Expansion | Mini PCI Express | 1x Full-size Mini-PCIe Socket |
| SIM Socket | 1 x SIM Socket | |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Wireless Module | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| CDS (Convertible Display System) Interface | 1x CDS Interface for Convertible Display Module | |
| Other Function | Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Button | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, HDD LED, Temperature LED | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.54 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P1201-X6425E-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Panel PC with Intel Atom x6425E Quad Core Processor |
| CO-W121C-R10/P1201-X6211E-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Panel PC with Intel Atom x6211E Dual Core Processor |
| CO-W121C | P1201-X6425E | P1201-X6211E | |
|---|---|---|---|
| CO-W121C/P1201-X6425E | V | V | -- |
| CO-W121C/P1201-X6211E | V | -- | V |
| √ CO-W121C/P1201 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
