产品介绍
CS-100/P1201 系列是一款阳光下可视工业平板电脑，提供高达 1,800 nits 超高亮度，搭载 Intel® Elkhart Lake Atom® 处理器，除了效能较前一代平台大幅提升外，在屏幕尺寸、比例、亮度上则是提供非常完整的选择。丰富 I/O、弹性扩展 (Mini PCIe、M.2 Key E Type 2230、CFM PoE/IGN) 、强固、易于现场维护等特性都适切的使 CS-100/P1201 成为户外 Kiosk 或是 HMI 应用的优选机型。
Product Category >>>> Modular Panel PC & Industrial Monitor
CPU 处理性能大幅提升
——
CS-100/P1201 系列可搭载 Intel® Elkhart Lake 平台 Atom® x6425E 四核处理器，Elkhart Lake 与上一代 Apollo Lake 相比，CPU Single - Thread 效能提升 1.7 倍，Multi-thread 效能提升 1.5 倍。图形效能也提升了 2 倍。且支持高达 3200 MHz 的 DDR4 32GB 内存。
CDS 专利技术
——
透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换屏幕或是系统效能提升，只需换置单一组件即可达成，大幅节省升级成本。
Patent No. M482908尺寸齐全完整
——
CS-100/P1201 提供多种屏幕尺寸，包含 8.4 至 24 吋，支持 Full HD 分辨率，拥有高达 1,800 nits 高亮度背光显示，并具备多点投射式电容触控功能，可针对应用需求进行选择。
宽温、安全、更可靠
——
为克服严苛的户外环境与不可控的气候因素，CS-100/P1201 系列必须具备一系列的工业级防护，除了提供优于业界的宽工作温度范围（-20°C 至 70°C）外、IP65 前面板防尘/防水等。CS-100/P1201 均通过了 产品安全认证（UL 认证），确保产品的高度安全性。
视频
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格

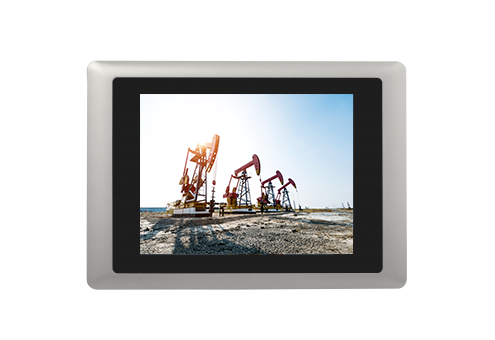

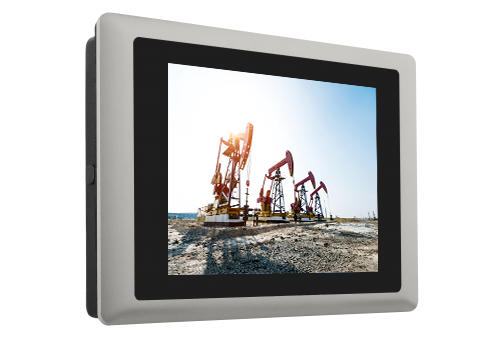

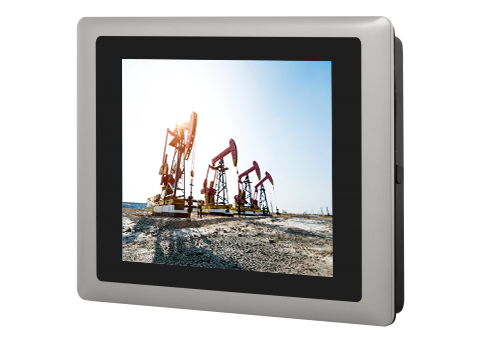

CS-108
| Model Name | CS-108 | |
|---|---|---|
| Display | LCD Size | 8.4" (4:3) |
| Max. Resolution | 800 x 600 (SVGA) | |
| Brightness (cd/m2) | 1600 | |
| Contrast Ratio | 600 : 1 | |
| LCD Color | 16.2M | |
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | |
| Viewing Angle (H-V) | 160 / 140 | |
| Backlight MTBF | 50,000 hrs (LED Backlight) | |
| Touch Screen | Touchscreen Type | Projected Capacitive |
| Physical | Dimension (W x D x H) | 262 x 186.2 x 56.2 mm |
| Weight Information | 1.58kg | |
| Mechanical Construction | Flat Rugged Aluminum Die-casting Bezel | |
| Power | Power Consumption | 9.48W (Max.) |
| Environment | Front Panel Protection | IP 65 Compliant |
| Operating Temperature | -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow) | |
| Storage Temperature | -20°C to 70°C | |
| Relative Humidity | 85% RH @ 40°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |

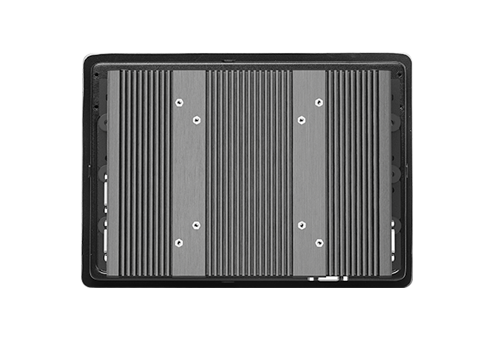

P1201
| Model Name | P1201 | |
|---|---|---|
| System | Processor | • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| Memory | • 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |
| COM | 3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A | |
| DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| Expansion | Mini PCI Express | 1x Full-size Mini-PCIe Socket |
| SIM Socket | 1 x SIM Socket | |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Wireless Module | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| CDS (Convertible Display System) Interface | 1x CDS Interface for Convertible Display Module | |
| Other Function | Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Button | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, HDD LED, Temperature LED | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.54 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CS-108C-R10/P1201-X6425E-R10 | 8.4“ TFT-LCD 1600nits Sunlight Readable Touch Panel PC with Intel Atom x6425E Quad Core Processor |
| CS-108C-R10/P1201-X6211E-R10 | 8.4“ TFT-LCD 1600nits Sunlight Readable Touch Panel PC with Intel Atom x6211E Dual Core Processor |
| CS-108C | P1201-X6425E | P1201-X6211E | |
|---|---|---|---|
| CS-108C/P1201-X6425E | V | V | -- |
| CS-108C/P1201-X6211E | V | -- | V |
| √ CS-108/P1201 Series Panel PC x 1 | √ Power Terminal Block Connector (Female) x 1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Screw Pack x 1 |
| √ DIO Terminal Block Connector (Female) x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Panel Mounting Kit x 4 |
| Model No. | Description |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
