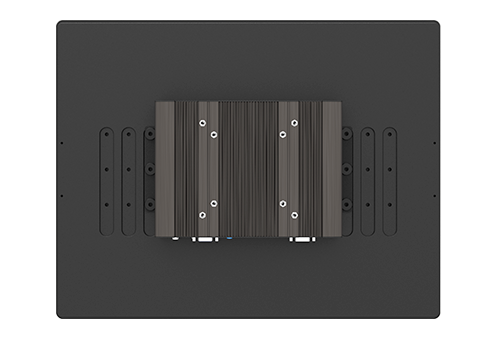

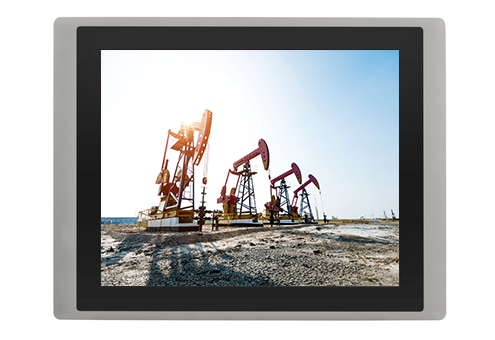

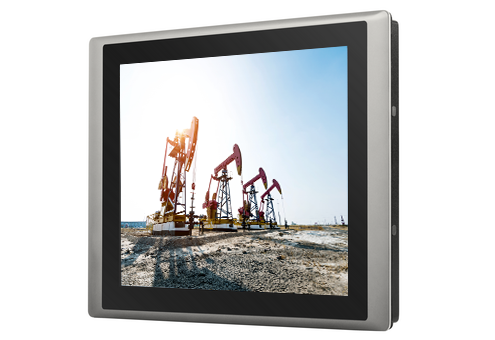

CS-117 / M1101 Series

17“ TFT-LCD 阳光下可读触控显示器，投射电容式触控，1x DisplayPort，1x HDMI，1x VGA

产品特点

17 英寸 TFT-LCD，超高亮度高达 1,500 尼特，分辨率为 1280 x 1024 (SXGA)
采用铝压铸前框设计
多种视频输入接口：1x VGA、1x HDMI、1x DisplayPort
支持 USB 和 RS-232 接口实现触控功能
用于亮度调节的 OSD 控制键
支持可转换显示系统 (CDS)
真正的扁平 IP65 前面板保护
支持面板 / VESA / 机架安装

产品介绍
详细规格
订购信息
相关下载

产品介绍

Meeting All Your Industrial Monitor Needs, CS-100 / M1000 Series Sunlight Readable Monitor

CS-100/M1101 系列是专为户外应用打造的阳光下可视工业触控显示器，除了提供高达 1,800 nits 超高亮度，在屏幕尺寸、比例、亮度上也提供非常完整的选择。作为户外 Kiosk 显示与 HMI 应用的绝佳选择，CS-100/M1101 系列不但拥有强固、易于现场维护等特性，还支持数字信号和模拟信号输入接口，包括 HDMI、DisplayPort 和 VGA，多语言 OSD 屏幕调节功能以及多种安装方式 (Panel、VESA、Rack Mount 安装)，能够适应各式户外应用场景的部署。

Product Category >>>> Modular Panel PC & Industrial Monitor

尺寸齐全完整

——

CS-100/M1101 系列提供多种屏幕尺寸，包含 8.4 至 24 吋，支持 Full HD 分辨率，拥有高达 1,800 nits 高亮度背光显示，并具备多点投射式电容触控功能，可针对应用需求进行选择。

CDS 专利技术

——

通过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，还保留了未来升级需求，只需换置单一模块即可，大幅节省升级成本。

Patent No. M482908

多种显示输入

——

CS-100/M1101 系列具备了三种显示输入选择，包含数字信号的 HDMI 与 Display Port 以及模拟信号输入的 VGA，可满足工业现场端显示需求。

宽温、安全、更可靠

——

面对严苛的应用环境，CS-100/M1101 系列备有一系列的工业级防护，包括宽温（-20°C 至 70°C）、IP65 前面板防尘/防水等。为追求更高的产品安全性，CS-100/M1101 系列还各自通过美国产品安全标准 UL 认证。

需要协助？

联系我们

info@cincoze.com

详细规格

CS-117

Model Name		CS-117
Display	LCD Size	17" (5:4)
	Max. Resolution	1280 x 1024 (SXGA)
	Brightness (cd/m2)	1500
	Contrast Ratio	800 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.264 (H) x 0.264 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Projected Capacitive
Physical	Dimension (W x D x H)	450 x 350 x 63.2mm
	Weight Information	5.64 kg
	Mechanical Construction	Flat Rugged Aluminum Die-casting Bezel
Power	Power Consumption	30.65W (Typ.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	-20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

M1101

Model Name		M1101
Graphics	HDMI-in	1x HDMI Connector (1920 x 1080 @60Hz)
	DP-in	1x DisplayPort Connector (1920 x 1080 @60Hz)
	VGA-in	1x VGA Connector (1920 x 1080 @60Hz)
Audio	Audio input	1x Audio Line in, Phone Jack 3.5mm
I/O	COM	1x RS-232, DB9
I/O	USB	1x 480Mbps USB 2.0, Type A
Other Function	OSD Button	Menu, Auto, LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	AMP 2W + 2W
	Status LED Indicator	Power LED, Standby LED
Power	Power Input	9 - 48VDC, 3-pin Terminal Block
Physical	Dimension ( W x D x H )	204.5 x 149 x 38.5 mm
	Weight Information	1.2 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	VESA / CDS Mounting
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	MTBF	1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Environment	Operating Temperature	-20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-20°C to 75°C
	Relative Humidity	95%RH @ 70°C (non-Condensing)
	Shock	Operating, 15 Grms (according to IEC60068-2-27)
	Vibration	• Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

订购信息

Available Models
Model No.	Product Description
CS-117C-R11/M1101-R10	17“ TFT-LCD 1500nits Sunlight Readable Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA

Package Checklist
√ CS-117/M1101 Touch Monitor x 1	√ Panel Mounting Kit x 1
√ USB Cable x 1	√ Power Terminal Block Connector x 1
√ VGA Cable x 1	√ Screw Pack x 1

Optional Modules and Accessories
Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
