产品介绍

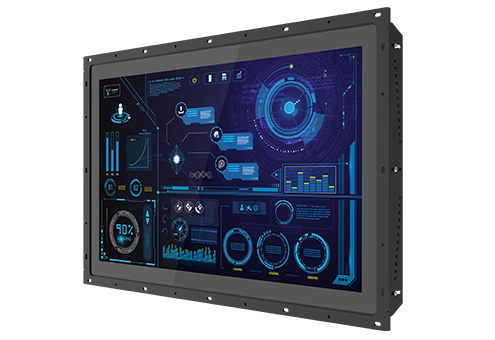

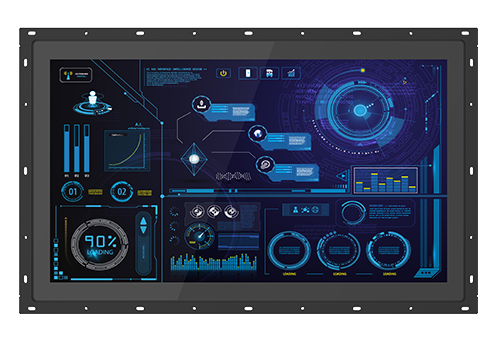

德承开放式架构工业触控显示器系列 (CO-100/M1101)，提供多种显示输入选择，包括数字信号的 HDMI 与 Display Port 以及模拟信号输入的 VGA。亮点来自其专利的可调式设计，透过多段刻度的调整与锁固方式，能大幅提升安装的便利度，是专为设备制造商所开发而成的产品。不但能装载于不同材质、厚度的机柜外壳，展现整体一致性外，其强固设计也兼顾工业严苛环境现场端 HMI 的应用需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
CDS 专利技术
——
透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，还保留了未来升级需求，只需换置单一模块即可，大幅节省升级成本。
Patent No. M482908
安装方式 便利
——
专属可调式安装支架，拥有厚度调整的选择以及支持多种锁固方式 (Panel Type / Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的安装。
Patent: I802427, D224544, D224545一体式 设计
——

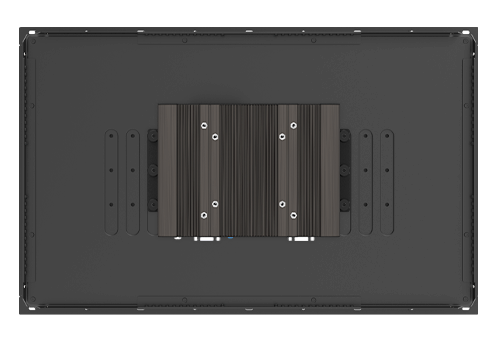

便捷与可靠兼具，除了是开放式架构的触控显示器，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19”机架中提供显示功能。
强固、安全、更可靠
——
宽工作温度范围（0°C 至 60°C）、IP65 前面板防尘/防水等，有利于现场端 HMI 或生产流程可视化等应用。此外， CO-100/M1101 系列还各自通过美国产品安全标准 UL 认证，高度确保产品的安全性。
详细规格
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contrast Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight MTBF | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Power | Power Consumption | 24.8W (Max.) |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
M1101
| Model Name | M1101 | |
|---|---|---|
| Graphics | HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) | |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) | |
| Audio | Audio input | 1x Audio Line in, Phone Jack 3.5mm |
| I/O | COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A | |
| Other Function | OSD Button | Menu, Auto, LCD On/Off, Brightness Up, Brightness Down |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, Standby LED | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | VESA / CDS Mounting | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| MTBF | 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | Operating Temperature | -20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) | |
| Vibration | • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/M1101-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA |
| √ CO-W121C/M1101 Touch Monitor x 1 | √ Power Terminal Block Connector x 1 |
| √ USB Cable x 1 | √ Screw Pack x 1 |
| √ VGA Cable x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
