产品介绍

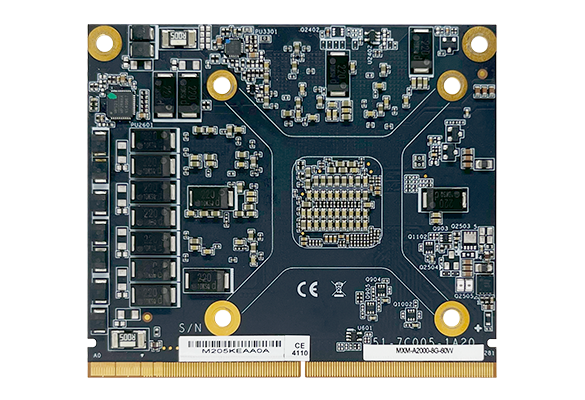

MXM-A2000 是一款采用 NVIDIA RTX™ GPU 的高性能嵌入式 MXM 模块，基于先进的 Ampere 架构并采用 MXM 3.1 Type A 的规格。拥有 2056 个 CUDA® 运算核心、20 个 RT 核心、80 个 Tensor 核心以及 8GB GDDR6 的内存。支持高达 8.25 TFLOPS 的 FP32，特别适合边缘运算和机器视觉相关应用。
Product Category >>>> Embedded GPU Computer
Product Category >>>> Embedded GPU Computer
详细规格
| GPU | NVIDIA RTX™ A2000 GA107-980 GPU |
|---|---|
| Memory | 8GB GDDR6 memory, 128-bit (Bandwidth: 192 GB/s) |
| CUDA Cores | 2560 CUDA cores, 8.25 TFLOPS peak FP32 performance |
| Tensor Cores | 80 Tensor Cores |
| RT Cores | 20 RT Cores |
| Compute API | CUDA Compute 8.0 and above, OpenCL™ 1.2 |
| Graphics API | DirectX® 12, OpenGL 4.6 |
| Display Outputs | 4x DisplayPort 1.4 digital video outputs, 4K at 120Hz or 8K at 60Hz |
| Interface | MXM 3.1, PCI Express Gen4 x8 support |
| Dimensions | 82 (W) x 70 (D) x 4.8 (H) mm |
| Form Factor | Standard MXM 3.1 Type A |
| Power Consumption | 60W |
| OS Support | Windows 10 & Linux support by project |
订购信息
| Model No. | Product Description |
|---|---|
| MXM-A2000-R10 | NVIDIA Embedded RTX A2000 MXM Type A, 8G, 60W Kit with Heatsink and Thermal Pad |
| √ NVIDIA RTX™ Embedded A2000 GPU Card x 1 |
| √ GPU Heatsink x 1 |
| √ GPU Thermal Pad Kit x1 |
| √ Screw Pack x 1 |
