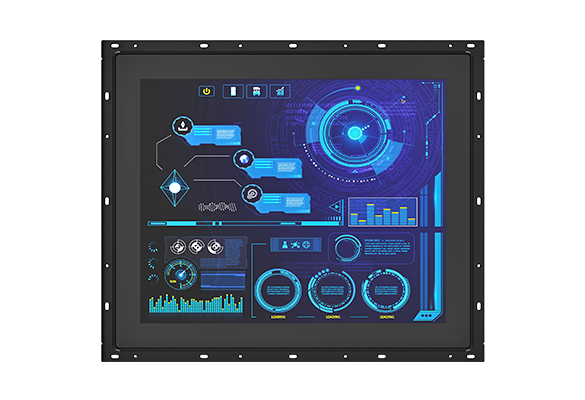

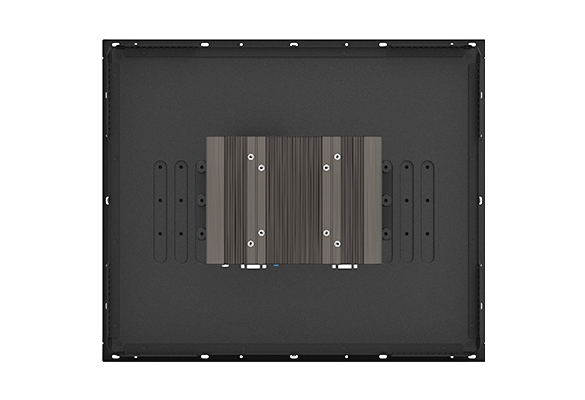

CO-119C / M1101 Series

19 英寸 TFT-LCD 高清开放式架构触控显示器，投射电容式触控、1x DisplayPort、1x HDMI、1x VGA

产品特点

19" TFT-LCD，投射电容式触控
可调式安装支架设计
多种视频输入接口：1x VGA、1x HDMI、1x DisplayPort
支持 USB 和 RS-232 接口实现触控功能
用于亮度调节的 OSD 控制键
德承专利 CDS 技术支持
前面板符合 IP65 标准
支持平面 / 标准 / VESA / 机架安装

产品介绍
详细规格
订购信息
相关下载

产品介绍

ALL-NEW Open Frame Touch Monitor, CO-100/M1000 Series Fits Any Machine Perfectly

德承开放式架构工业触控显示器系列 (CO-100/M1101)，提供多种显示输入选择，包括数字信号的 HDMI 与 Display Port 以及模拟信号输入的 VGA。亮点来自其专利的可调式设计，透过多段刻度的调整与锁固方式，能大幅提升安装的便利度，是专为设备制造商所开发而成的产品。不但能装载于不同材质、厚度的机柜外壳，展现整体一致性外，其强固设计也兼顾工业严苛环境现场端 HMI 的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor

CDS 专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，还保留了未来升级需求，只需换置单一模块即可，大幅节省升级成本。

Patent No. M482908

安装方式便利

——

专属可调式安装支架，拥有厚度调整的选择以及支持多种锁固方式 (Panel Type / Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的安装。

Patent: I802427, D224544, D224545

一体式设计

——

便捷与可靠兼具，除了是开放式架构的触控显示器，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19”机架中提供显示功能。

强固、安全、更可靠

——

宽工作温度范围（0°C 至 60°C）、IP65 前面板防尘/防水等，有利于现场端 HMI 或生产流程可视化等应用。此外， CO-100/M1101 系列还各自通过美国产品安全标准 UL 认证，高度确保产品的安全性。

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CO-119C

Model Name		CO-119C
Display	LCD Size	• 19” (5:4)
	Max. Resolution	• 1280 x 1024
	Brightness (cd/m2)	• 350
	Contrast Ratio	• 1000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	• 170 / 160
	Backlight MTBF	• 50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	• Projected Capacitive Touch
Physical	Dimension (W x D x H)	• 472.8 x 397.5 x 63mm
	Weight	• 6.91kg
	Construction	• One-piece and Slim Bezel Design
	Mounting Type	• Flat / Standard / VESA / Rack Mount
	Mounting Bracket	• Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Power	Power Consumption	• 21W (Max.)
Protection	Ingress Protection	• Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	• -20°C - 60°C
	Humidity	• 80% RH @ 50°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

M1101

Model Name		M1101
Graphics	HDMI-in	1x HDMI Connector (1920 x 1080 @60Hz)
	DP-in	1x DisplayPort Connector (1920 x 1080 @60Hz)
	VGA-in	1x VGA Connector (1920 x 1080 @60Hz)
Audio	Audio input	1x Audio Line in, Phone Jack 3.5mm
I/O	COM	1x RS-232, DB9
I/O	USB	1x 480Mbps USB 2.0, Type A
Other Function	OSD Button	Menu, Auto, LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	AMP 2W + 2W
	Status LED Indicator	Power LED, Standby LED
Power	Power Input	9 - 48VDC, 3-pin Terminal Block
Physical	Dimension ( W x D x H )	204.5 x 149 x 38.5 mm
	Weight Information	1.2 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	VESA / CDS Mounting
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	MTBF	1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Environment	Operating Temperature	-20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-20°C to 75°C
	Relative Humidity	95%RH @ 70°C (non-Condensing)
	Shock	Operating, 15 Grms (according to IEC60068-2-27)
	Vibration	• Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

订购信息

Available Models
Model No.	Product Description
CO-119C-R10/M1101-R10	19" TFT-LCD SXGA 5:4 Open Frame Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA

Package Checklist
• CO-119C/M1101 Touch Monitor x 1	• Power Terminal Block Connector x 1
• USB Cable x 1	• Screw Pack x 1
• VGA Cable x 1

Optional Modules and Accessories
Model No.	Description
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
