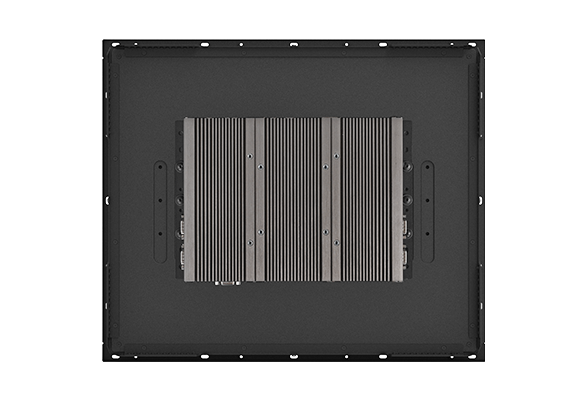

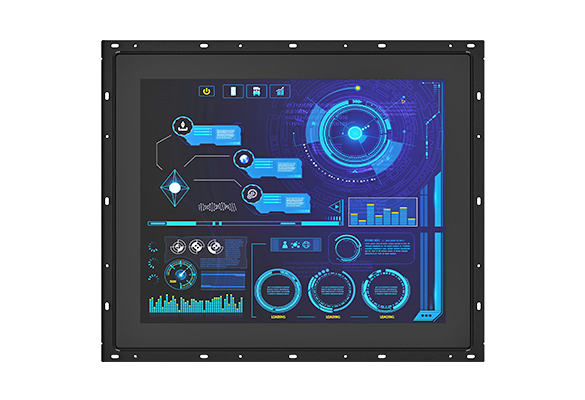

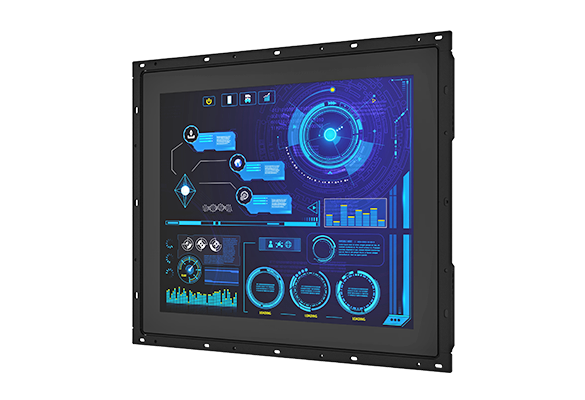

CO-119C / P2102 Series

19" TFT-LCD 开放式架构平板电脑，搭载第 8 代 Intel® Core™ U 系列处理器

产品特点

19" TFT-LCD 投射电容式触控
第 8 代 Intel® Core™ U 系列处理器
2 个 DDR4 SO-DIMM 插槽，支持最高 2400MHz，64GB 内存
可调整安装支架设计
支持平板 / 标准 / VESA / 机架式安装
前面板符合 IP65 标准
宽工作温度范围
Cincoze 专利 CDS 技术支持

产品介绍
详细规格
订购信息
相关下载

产品介绍

All new open frame panel pc - CO-100/P2102 Series Fits Any Machine Perfectly

德承高效能开放式架构平板电脑，采用 Intel® Core U 系列处理器，除了拥有高效能的数据处理与图形运算能力外，仅 15 W 低功耗也是特色亮点。全系列支持 CFM 技术，能依据需求扩展所需功能，如智能点火控制 (IGN) 及以太网供电功能 (PoE)。其一体式设计、专属可调式安装支架及支持多款安装模式，能结合于不同材质、厚度的机柜外壳，其强固设计也兼顾工业严苛环境现场端的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor

高效能低功耗

——

Intel® Core U 系列处理器，除了拥有高效能的数据处理与图形运算能力外，仅 15 W 低功耗也是特色亮点 ; 支持高达 64G 内存与 2 x 2.5 寸 HDD/SSD。

CDS
专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换面板尺寸或是系统效能提升，只需换置单一模块即可达成，大幅节省升级成本。

Patent No. M482908

灵活弹性应用更广

——

提供 Mini-PCIe 及 PCI/PCIe 扩展插槽，满足用户安装数据采集卡、运动控制卡及 I/O 扩展等各种应用。

[ PCI/PCIe 扩展插槽适用机型 : CO-119C/P2102E ]

可调式设计
安装简易

——

专属可调式安装支架，拥有厚度调整的选择及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427

一体式设计

——

弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。

强固可靠兼具
耐用度提升

——

前框 IP65 防水防尘、无风扇、9-48V 宽压电源输入及 0℃~60℃ 宽温设计，在严峻的工业环境中，均能稳定持续运作，高度满足工业现场端 HMI 的应用需求。

wide temperature support (0-60°C) front IP65 dustproof and waterproof protection

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CO-119C

Model Name		CO-119C
Display	LCD Size	• 19” (5:4)
	Max. Resolution	• 1280 x 1024
	Brightness (cd/m2)	• 350
	Contrast Ratio	• 1000 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.294 (H) x 0.294 (V)
	Viewing Angle (H-V)	• 170 / 160
	Backlight MTBF	• 50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	• Projected Capacitive Touch
Physical	Dimension (W x D x H)	• 472.8 x 397.5 x 63mm
	Weight	• 6.91kg
	Construction	• One-piece and Slim Bezel Design
	Mounting Type	• Flat / Standard / VESA / Rack Mount
	Mounting Bracket	• Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Power	Power Consumption	• 21W (Max.)
Protection	Ingress Protection	• Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	• 0°C - 50°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	• -20°C - 60°C
	Humidity	• 80% RH @ 50°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P2102 Series

Model Name		P2102	P2102E
System	Processor	Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz) • TDP: 15 W
System	Memory	2x DDR4 2400 MHz 260-Pin SO-DIMM Socket Support Un-buffered and Non-ECC Type up to 64 GB
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 620
	Maximum Display Output	Supports Triple Independent Display
	CDS	1x CDS Connector for Cincoze Display Module
	VGA	1x VGA Connector(1920 x 1200 @60Hz)
	DP	1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840 x2160 @ 60Hz
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219LM - GbE2: Intel® I210
	USB	3x USB 3.2 Gen2 (Type A), 2x USB 2.0 (Type A)
	Serial Port	4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
Storage	SSD/HDD	2x 2.5” HDD/SSD Drive Bay (SATA 3.0), Supports RAID 0/1
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	PCI Express		1x PCI or 1x PCIe x4 Expansion slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
	M.2 E Key Socket	1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
	SIM Socket	1 x Front Accessible SIM Socket
	Universal Bracket		2x Universal I/O Bracket
	CFM (Control Function Module) Interface	2x CFM Interface for optional IGN or PoE Module Expansion
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
Other Function	Clear CMOS Switch	1 x Clear CMOS Switch
	Instant Reboot	Support 0.2sec Instant Reboot technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Reset Button	1x Reset Button
Power	Power Button	1x ATX Power On/Off Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A, 60W or 24V/5A 120W
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	254.5 x 190 x 41.5 mm	254.5 x 190 x 61 mm
	Weight Information	2.2 kg	2.7 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS / DIN Rail
	Physical Design	Fanless Design Jumper-less Design
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	231,243 hours
Operating Stystem	Microsoft® Windows®	Windows®10
Operating Stystem	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 70°C
	Relative humidity	95% RH @ 70˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)	• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ CV-W124 only, according to IEC60068-2-6)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN62368-1
	Fire Protection	EN 45545-2

订购信息

Available Models
Model No.	Product Description
CO-119C-R10/P2102-i5-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CO-119C-R10/P2102E-i5-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Modular and Expandable Panel PC with 8th Gen. Intel Core i5-8365UE Quad Core Processor and P-Cap. Touch
CO-119C-R10/P2102-i3-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Modular Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch
CO-119C-R10/P2102E-i3-R10	19“ TFT-LCD SXGA 5:4 Open Frame Display Modular and Expandable Panel PC with 8th Gen. Intel Core i3-8145UE Dual Core Processor and P-Cap. Touch

Model Configuration
	CO-119C	P2102 (i3/i5)	P2102E (i3/i5)
CO-119C/P2102	V	V	--
CO-119C/P2102E	V	--	V

Package Checklist
• CO-119C/P2102 Series Panel PC x 1	• Thermal Pad (for CPU Thermal Block) x 1
• Power Terminal Block Connector x 1	• Screw Pack x 5
• PCI / PCIe Card Installation Kit x 1	• Remote Power On/O Terminal Block Connector x 1
• DIO Terminal Block Connector x 2

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-PoE04	PoE Control Function Module, Individual Port 25.5W (For P2102 only)
CFM-PoE05	PoE Control Function Module, Individual Port 25.5W (For P2102E only)
RC-E4-02	Riser Card with 1x PCIex4 Slot (For P2102E only)
RC-PI-02	Riser Card with 1x PCI Slot (For P2102E only)
MEC-COM-M212-DB9	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable (For P2102E Only)
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable (For P2102E Only)
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm (For P2102E Only)
MEC-USB-M102-30	Mini-PCIe Module with 2x USB 3.2 Gen1 Ports (For P2102E Only)
UB1203	Universal Bracket with 2x DB9 Cutout (For P2102E only)
UB1211	Universal Bracket with 2x RJ45 Cutout (For P2102E only)
UB1214	Universal Bracket with 2x USB Cutout (For P2102E only)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
