CO-W124C / P1101 Series

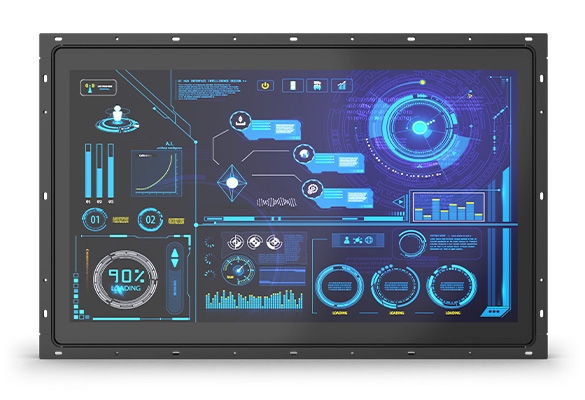

24" TFT-LCD 开放式架构平板电脑，搭载 Intel® Atom® / Pentium® 处理器

产品特点

24" 投射式电容触控 TFT-LCD
内建 Intel® Atom® / Pentium® 处理器
1x DDR3L SO-DIMM，最大支持 8GB
设计有可调式安装支架
支持平面 / 标准 / VESA / 机架式安装
前面板符合 IP65 防护等级
宽温操作范围
支持 Cincoze 专利 CDS 技术

产品介绍
详细规格
订购信息
相关下载

产品介绍

All new open frame panel pc - CO-100/P1101 Series Fits Any Machine Perfectly

德承节能开放式架构平板电脑，采用 Intel® Atom® / Pentium® 系列处理器，支持多显功能。除具备丰富的原生 I/O 如 LAN, USB, COM, DIO 外，全系列支持专属 CFM 技术，能依据需求扩展应用功能，如智能点火控制 (IGN) 及以太网供电功能 (PoE)。此外，一体式设计、专属可调式安装支架及支持多款安装模式，除了能结合于不同材质、厚度的机柜外壳，呈现整体一致性外，其强固设计也兼顾工业严苛环境现场端的应用需求。

Product Category >>>> Modular Panel PC & Industrial Monitor

节能与多显

——

Intel® Atom®/ Pentium® 系列处理器，支持多显功能。

丰富 I/O 灵活扩展

——

除原生 I/O 包含 LAN、USB、 COM、DIO 与 Mini-PCIe、SIM 插槽外，还可透过专属的 CFM 技术，扩展应用功能，如智能点火控制 (IGN) 及以太网供电功能 (PoE)。

CDS
专利技术

——

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易于维护优势外，也可保留未来升级需求，无论是更换面板尺寸或是系统效能提升，只需换置单一模块即可达成，大幅节省升级成本。

Patent No. M482908

可调式设计
安装简易

——

专属可调式安装支架，拥有厚度调整的选择及支持多款锁固方式 (Panel Type/Boss Type)，对于使用全平面安装与标准安装的工业机台，提供更简易、便捷的整合关键。

Patent No.: D224544, D224545, I802427

一体式设计

——

弹性与可靠兼具，除了是开放式架构的平板电脑，可布署于设备机台中。其一体式的设计，在卸除安装支架后，可直接透过 VESA 安装作为单机使用，或是安装于 19 寸机架中提供显示功能。

强固可靠兼具耐用度提升

——

前框 IP65 防水防尘、无风扇、9-48V 宽压电源输入及宽温设计，在严峻的工业环境中，均能稳定持续运作，高度满足工业现场端HMI的应用需求。

wide temperature support front IP65 dustproof and waterproof protection

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CO-W124C

Model Name		CO-W124C
Display	LCD Size	• 24" (16:9)
	Resolution	• 1920 x 1080
	Brightness (cd/m2)	• 300
	Contrast Ratio	• 5000:1
	LCD Color	• 16.7M
	Pixel Pitch	• 0.27675(H) x 0.27675(V)
	Viewing Angle (H-V)	• 178 / 178
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	• Projected Capacitive Touch
Physical	Dimension (W x D x H)	• 604 x 387.2 x 63.3mm
	Weight	• 8.3 KG
	Construction	• One-piece and Slim Bezel Design
	Mounting Type	• Flat / Standard / VESA / Rack Mount
	Mounting Bracket	• Pre-installed Mounting Bracket with Adjustable Design (Support 11 different stages of adjustment)
Power	Power Consumption	• 23.75W (Max.)
Protection	Ingress Protection	• Front Panel IP65 Compliant * According to IEC60529
Environment	Operating Temperature	• -20°C - 70°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	• -30°C - 80°C
	Humidity	• 80% RH @ 50°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz

P1101

Model Name		P1101
System	Processor	Onboard Intel® Atom® x7-E3950 Quad Core Processor, up to 2.00 GHz Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz
System	Memory	• 1x DDR3L 1333/1600/1866 MHz SO-DIMM Socket, with up to 1600 MHz operation • Supports Un-buffered and Non-ECC Type, Up to 8GB
Graphics	Graphics Engine	Integrated Intel® HD Graphics 505
	Maximum Display Output	Supports Triple Independent Display
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	VGA	1x VGA (1920 x 1200 @60Hz)
	DP	1x DisplayPort (4K x 2K @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
	USB	4x USB 3.2 Gen1 (Type A)
	Serial Port	4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	DIO	8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Storage	SSD/HDD	1x 2.5” HDD Drive Bay (SATA 3.0)
	SIM Socket	1 x SIM Socket
	mSATA	1x mSATA Socket (SATA 3.0, Shared by Mini-PCIe Socket)
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Sockets
	CFM (Control Function Module) Interface	Optional CFM IGN Module for Power Ignition Function Optional CFM PoE Module for Power over Ethernet Function
	CDS (Convertible Display System) Technology	1x Convertible Display System (CDS) Interface
	Antenna Holes	4x Antenna Holes
Other Function	Instant Reboot	Support 0.2sec
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	Internal Speaker	AMP 2W + 2W
	OSD Function	LCD On/Off, Brightness Up, Brightness Down
	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
Power	Power Switch	1x Power Switch
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	1x 3-pin Terminal Block Connector with Power Input 9~48VDC
	Power Adapter (Optional)	1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
	Remote Power On/Off	1x Remote Power On/Off Connector, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	204.5 x 149 x 41.5 mm
	Weight Information	1.49kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Physical Design	Fanless Design Jumper-less Design
	Mounting	Wall / VESA / CDS / DIN Mounting
Reliability & Protection	Reverse Power Input	Yes
	Over Voltage Protection	Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	Time: 294,617 hours
Operating Stystem	Microsoft® Windows®	Windows®10
Operating Stystem	Linux	Supports by project
Environment	Operating Temperature	Ambient with Air Flow: -40°C to 70°C (with Extended Temperature Peripherals)
	Storage Temperature	-40°C to 85°C
	Relative humidity	95% RH @ 75˚C (Non-condensing)
	Shock	Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	LVD IEC/EN 62368-1

订购信息

Available Models
Model No.	Product Description
CO-W124C-R10/P1101-E50-R10	24" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with Intel Atom E3950 Quad Core Processor and P-Cap. Touch
CO-W124C-R10/P1101-N42-R10	24" TFT-LCD Full HD 16:9 Open Frame Display Modular Panel PC with Intel Pentium N4200 Quad Core Processor and P-Cap. Touch

Model Configuration
	CO-W124C	P1101-E50	P1101-N42
CO-W124C/P1101-E50	V	V	--
CO-W124C/P1101-N42	V	--	V

Package Checklist
• CO-W124C/P1101 Series Panel PC x 1	• Power Terminal Block Connector (Female) x 1
• DIO Terminal Block Connector (Female) x 1	• Screw Pack x 1
• Thermal Pad (for CPU Thermal Block) x 1	• Remote Power On/Off Terminal Block Connector x 1

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3	US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3	EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3	UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
