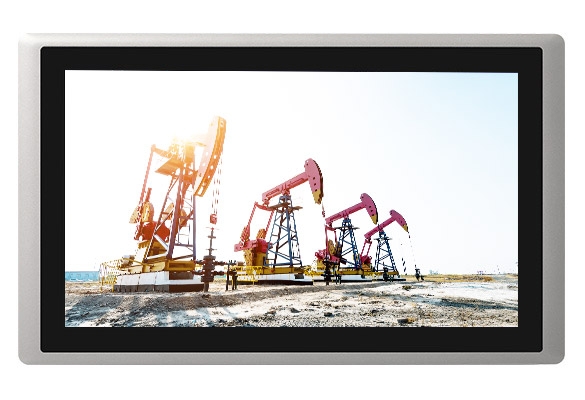

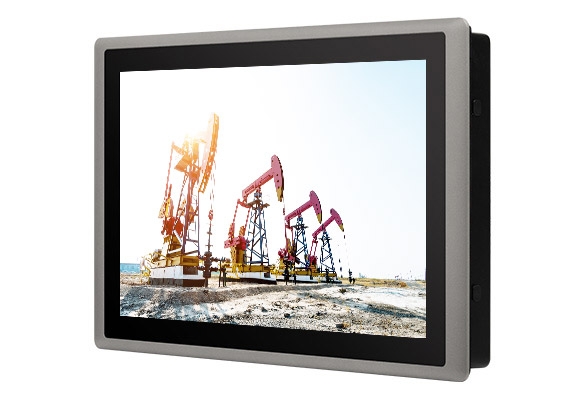

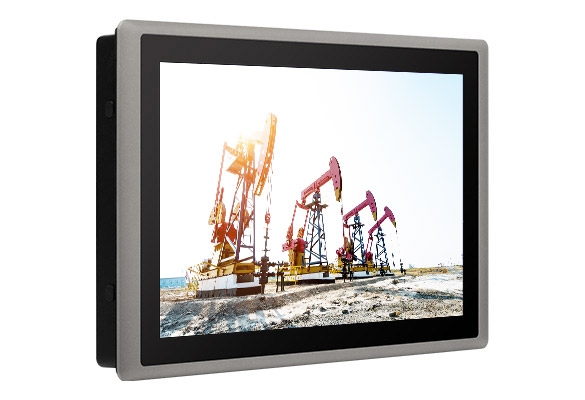

CS-W115FH / P1301 Series

15.6“ TFT-LCD 1200nits Sunlight Readable Touch Panel PC with Intel® Alder Lake-N Platform, Slim Embedded Computer & P-Cap. Touch

产品特点

15.6" TFT-LCD with Ultra High Brightness up to 1,200 nits and 1920x1080 (Full HD) Resolution
Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
1x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
1x M.2 Key B Type 3042/3052 Socket for 5G/Storage/Add-on Card Expansion
Front Panel IP65 Compliant
Designed with Rugged Aluminum Die-casting Front Bezel
Supports Panel / VESA / Rack Mount
Supports Cincoze Patent CDS Technology (Patent No. M482908)

加入咨询清单规格表

产品介绍

产品介绍
详细规格
订购信息
相关下载

产品介绍

Cincoze Power Efficient Sunlight Readable Panel PC - CS-100/P1000 Series

CS-100/P1301 系列是一款阳光下可视工业平板电脑，提供最高 1,800 nits 超高亮度，搭载 Intel® Alder Lake-N 处理器，在荧幕尺寸、比例、高亮度则是提供非常完整的选择。丰富 I/O、弹性扩充、强固、易于现场维护等特性都适切的使 CS-100/P1301 系列成为户外 Kiosk 或是 HMI 应用的最佳选择。

Product Category >>>> Modular Panel PC & Industrial Monitor

AI 与多工运行的强悍效能

——

CS-100/P1301 系列搭载 Intel® 7 制程的 Alder Lake-N 四核心处理器，与前一代 Elkhart Lake 平台相比，CPU Single – Thread 效能提升高达 130%, Multi-thread 效能提升 109%。而处理器内建的 UHD Graphics 显示晶片，其 AI 推论的物价辨识效能更是提升了 6.85 倍。

升级、维修超方便

——

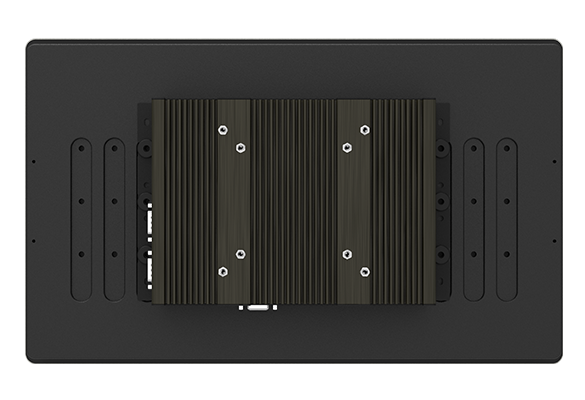

透过 CDS (Convertible Display System) 专利技术，不仅在现场端具有易维护优势，还可满足未来升级需求，无论是更换荧幕或是系统效能提升，只需换置单一组件即可达成，大幅节省升级成本。

Patent No. M482908

齐全完整的产品组合

——

CS-100/P1301 系列提供多种荧幕尺寸，包含 8.4 至 24 寸，支援最高 Full HD 解析度，拥有最高 1,800 nits 高亮度背光显示，并具备多点投射式电容触控功能，可针对应用需求进行选择。

宽温、安全、更可靠

——

为克服严苛的户外环境与不可控的气候因素，CS-100/P1301 系列必须具备一系列的工业防护，除了提供优于产业的宽工作温度范围外、IP65 前面板防尘/防水等，以确保产品的高度安全性。

视频

需要协助？

联系我们

info@cincoze.com

详细规格

CS-W115FH

Model Name		CS-W115FH
Display	LCD Size	• 15.6" (16:9)
	Max. Resolution	• 1920 x 1080 (Full HD)
	Brightness (cd/m2)	• 1,200
	Contrast Ratio	• 800 : 1
	LCD Color	• 16.7M
	Pixel Pitch (mm)	• 0.17925 (H) x 0.17925 (V)
	Viewing Angle (H-V)	• 178 / 178
	Backlight LED Life Time	• 50,000 hrs (LED Backlight)
Touch Screen	Touch Type	• Projected Capacitive
Physical	Dimension (W x D x H)	• 420 x 254 x 66.2 mm
	Weight Information	• 3.58 kg
	Mechanical Construction	• Flat Rugged Aluminum Die-casting Bezel
Power	Power Consumption	• 25W (Max.)
Environment	Front Panel Protection	• IP 65 Compliant
	Operating Temperature	• -20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	• -40°C to 80°C
	Relative Humidity	• 90% RH @ 39°C (non-condensing)
	EMC	• CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	• UL, cUL, CB, IEC, EN 62368-1

P1301

Model Name		P1301
System	Processor	• Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W
	Memory	• 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB
	BIOS	• AMI BIOS
Graphics	Graphics Engine	• Integrated Intel® UHD Graphics
	Maximum Display Output	• Supports Triple Independent Display
	CDS	• 1x CDS Connector (1920 x 1080 @60Hz)
	DP	• 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz
	VGA	• 1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	• Realtek® ALC888, High Definition Audio
	Line-out	• 1x Line-out, Phone Jack 3.5mm
	Mic-in	• 1x Mic-in, Phone Jack 3.5mm
I/O	LAN	• 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225
	COM	• 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
	USB	• 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A
	DIO	• 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block
Storage	SSD/HDD	• 1x 2.5" Front Accessible SATA HDD/SSD Bay
Storage	M.2 SSD	• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0)
Expansion	M.2 Key E Socket	• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion
	M.2 Key B Socket	• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion
	SIM Socket	• 1x Front Accessible SIM Socket
	CFM (Control Function Module) Interface	• 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion
Other Function	Clear CMOS Switch	• 1 x Clear CMOS Switch
	Reset Button	• 1x Reset Button
	Instant Reboot	• Support 0.2sec Instant Reboot Technology
	Watchdog Timer	• Software Programmable Supports 256 Levels System Reset
	OSD Function	• LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	• AMP 2W + 2W
	Status LED Indicator	• Power LED, HDD LED
Power	Power Button	• 1x ATX Power On/Off Button
	Power Mode Switch	• 1x AT/ATX Mode Switch
	Power Input	• 9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	• 1x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	• 1x Remote Power LED, 2-pin Terminal Block
	Max. Power Consumption	• i3-N305 CPU: 48.59W • N97 CPU: 34.04W - Test conducted with CPU, 1x RAM, and 1x storage - 100% load during burn-in testing
	Inrush Current (Peak)	• i3-N305 CPU: 5.538 A@12V • N97 CPU: 5.242 A@12V
Operating Stystem	Microsoft® Windows®	• Windows®11, Windows®10
Operating Stystem	Linux	• Ubuntu Desktop 22.04 LTS
Physical	Dimension ( W x D x H )	• 204.5 x 149 x 46.5mm
	Weight	• 1.57 kg
	Mechanical Construction	• Extruded Aluminum with Heavy Duty Metal
	Mounting	• Wall / VESA / CDS / DIN Rail
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input	• Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover
	Over Current Protection	• 15A
	CMOS Battery Backup	• SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	• 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	• Intel® Processor N97 / Atom® x7425E: -40°C to 70°C • Intel® Core™ i3-N305: -40°C to 60°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	• -40°C to 70°C
	Relative Humidity	• Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing) • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing)
	Shock	• Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

Available Models
Model No.	Description
CS-W115FHC-R20/P1301-N97-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch
CS-W115FHC-R20/P1301-X7425E-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch
CS-W115FHC-R20/P1301-i3-R10	15.6" TFT-LCD 1200 nits Full HD Sunlight Readable Display Modular Panel PC with Intel® Core i3-N305 Octa Core Slim Embedded Computer and P-Cap. Touch

Model Configuration
	CS-W115FHC	P1301-N97	P1301-X7425E	P1301-i3
CS-W115FHC/P1301-N97	V	V	--	--
CS-W115FHC/P1301-X7425E	V	--	V	--
CS-W115FHC/P1301-i3	V	--	--	V

Package Checklist
CS-W115FH/P1301 Series Panel PC x 1	Power Terminal Block Connector x 1
Thermal Pad (for CPU Thermal Block) x 1	Remote Function Terminal Block Connector x 1
Screw Pack x 2	DIO Terminal Block Connector x 1
Panel Mounting Kit x 10	M.2 Key B Type 3052 to 3042 Adapter Bracket x 1

Optional Modules and Accessories
Model No.	Description
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
