P2302 Series

Intel Meteor Lake-PS Core 系列（LGA 插座）超薄嵌入式计算机，搭载 CDS 技术
产品特点
  • 搭载 Intel® Meteor Lake-PS Core™ Ultra 7/5/3 处理器
  • 2 个 DDR5 SO-DIMM 插槽，支持最高 5600MHz 64GB 内存
  • 1 个 M.2 Key E Type 2230 插槽，可扩展无线 / 蓝牙模块
  • 1 个 M.2 Key B Type 3052/3042 插槽，可扩展 5G / 存储 / 扩展卡
  • 1 个 M.2 Key B Type 3042 插槽，可扩展存储 / 扩展卡
  • 支持 Cincoze 专利 CDS 技术（专利号 M482908）
  • 可选配 CFM 模块，提供电源点火感应 & PoE 功能
  • 宽温工作范围：-40°C 至 65°C
产品认证
  • EN 61000-6-2
  • EN 61000-6-4
加入咨询清单 规格表
产品介绍

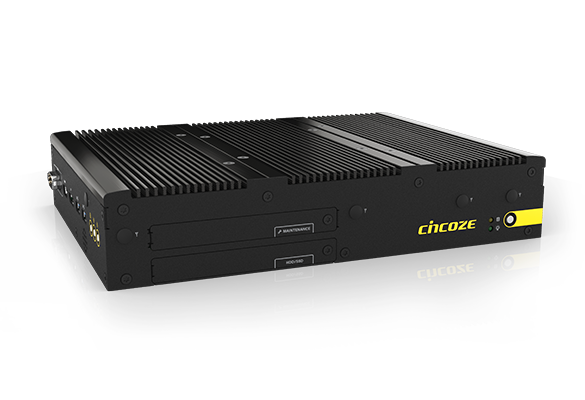

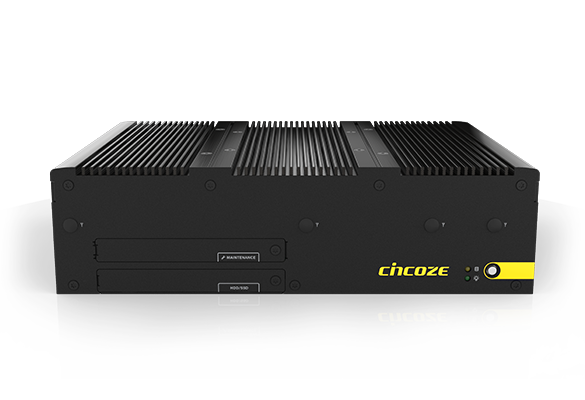

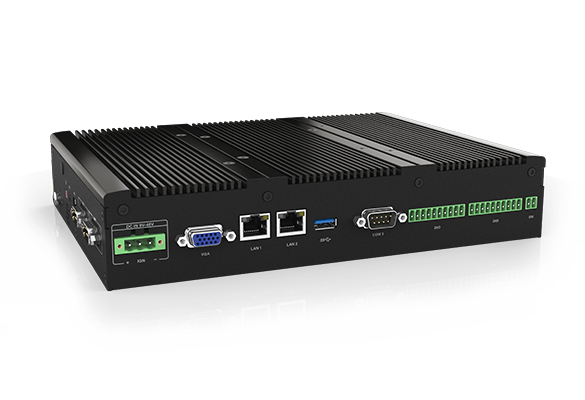

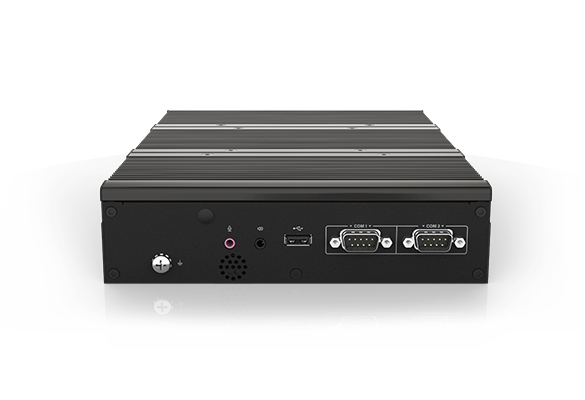

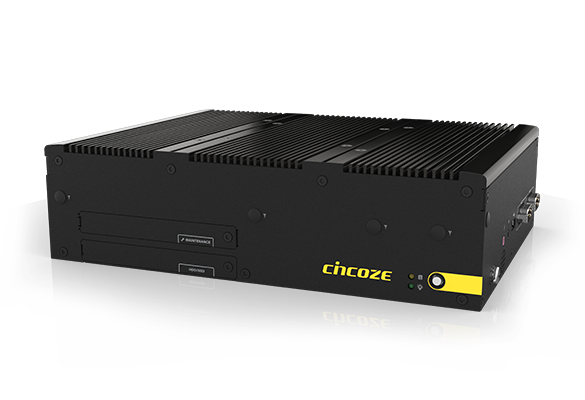

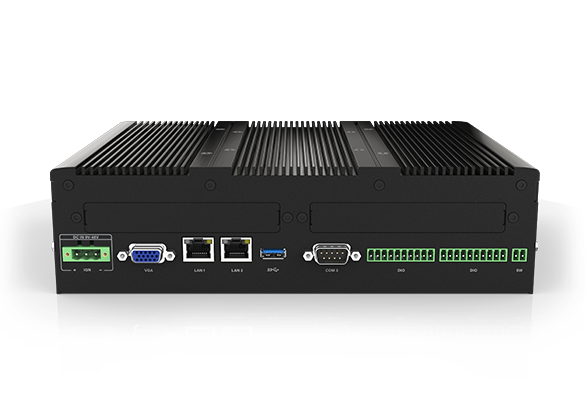

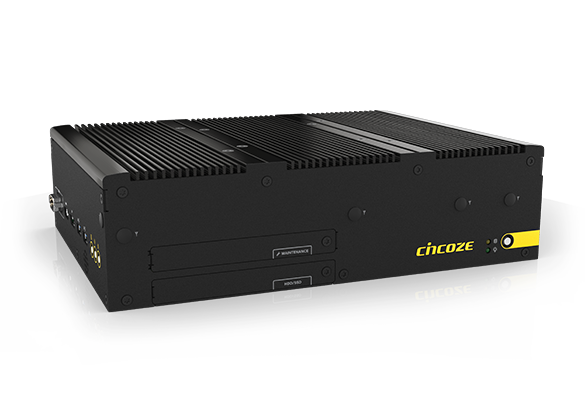

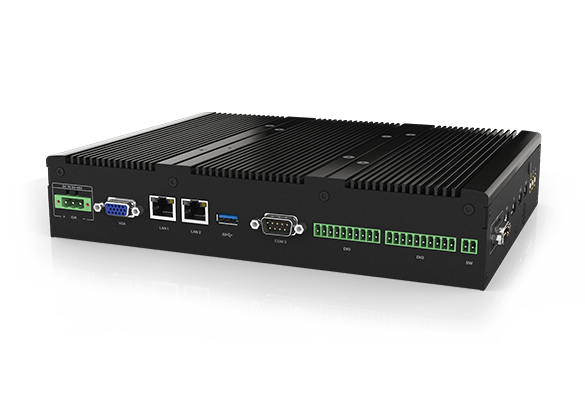

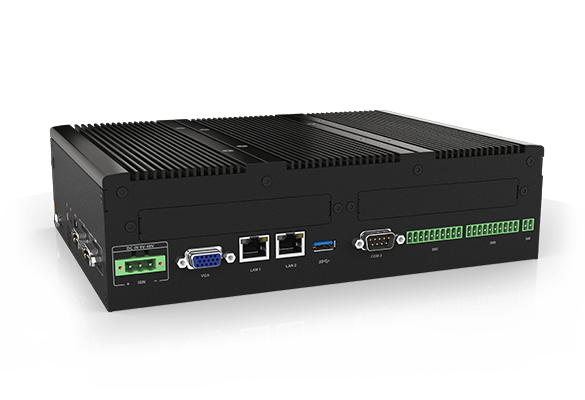

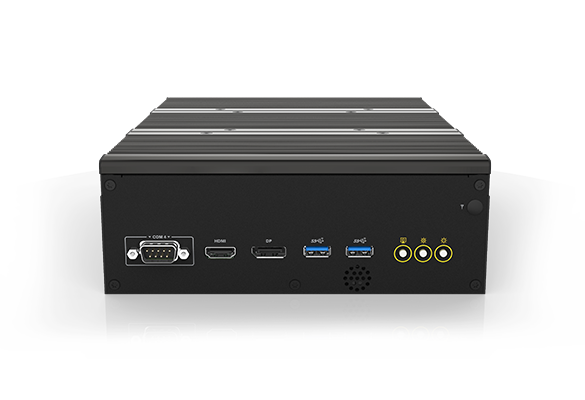

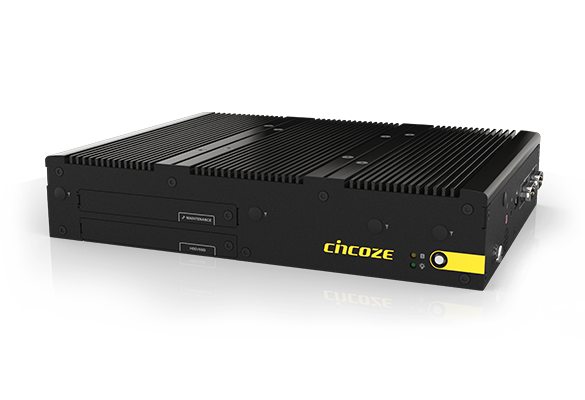

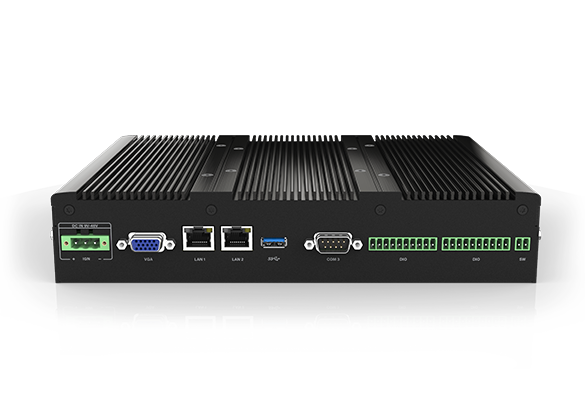

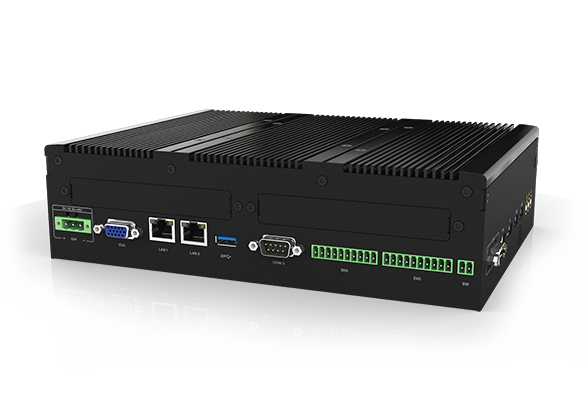

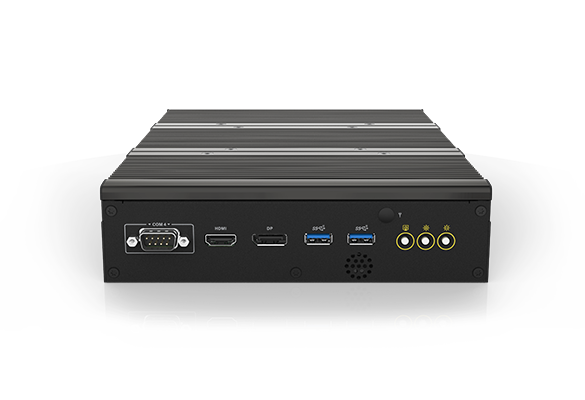

Cincoze P2302

P2302 系列是一款针对边缘运算而设计的薄型、高性能嵌入式电脑。可搭载 Intel 新一代 Meteor Lake-PS 平台，CPU 与灵活的扩展性是主要特点，除原生丰富的 I/O 接口外，还支持多种扩展插槽，包括 M.2 Key E、Key B 以及 PCI/PCIe 扩展槽 （P2302E 限定）等，满足各种应用需求。

除了可单机使用外，P2302 系列通过专属的 CDS 技术，自由搭配不同特性的屏幕模块 （Display Module）组成工业平板电脑 （Industrial Panel PC）、阳光下可视平板电脑（Sunlight Readable Panel PC）或是开放式架构平板电脑（Open Frame Panel PC），满足多元化的显示运算需求。

Product Category >>>> Modular Panel PC & Industrial Monitor



效能提升 x 低功耗 x AI加速

——

P2302 系列可搭载 Intel® 4 制程 Core Ultra 7/5/3 U 系列（Meteor Lake-PS）CPU，拥有高达 12 核心与 15W 低功耗的出色效能，相比前一代机种，效能大幅提升 1.8 倍。全新內建的 Intel NPU，为大量图像运算与 AI 辨识，提供更快、更高性能的 AI 加速能力。

效能提升 x 低功耗 x AI加速
特殊关键散热技术


特殊关键散热技术

——

P2302 系列采用特殊的动态散热机构设计，可自动调整前后左右的结构性公差，确保上盖与 CPU 散热块的紧密贴合，成功解決因高能运算所带来的散热挑战，让 CPU 效能全面发挥。



一机双用

——

P2302 系列不但是一台薄型嵌入式电脑，还能通过 CDS（Convertible Display System）专属技术，搭配显示屏模块 （CV 系列）、阳光下可视模块 （CS 系列）、开放式架构显示屏模块（CO 系列）组成各式应用环境所需要的工业平板电脑。

一机双用
高度弹性，应用无限


高度弹性 应用无限

——

P2302 系列具备高度弹性，效能上可自由搭载 Core Ultra U 系列 LGA CPU，功能上透过 M.2 Key B/E 扩充 5G、Wi-Fi、蓝牙、NVMe SSD 与 I/O。P2302E 更具备 PCI/PCIe 插槽，可安装最高 75W（111 x 169 mm）扩充卡，灵活满足多元应用。

高规格的 工业级保护

——

具备强固设计与多项工业级防护，包括宽温设计（-40°C - 65°C）、耐冲击震动测试（随机振动 5G、正弦振动 1G、冲击 50G），并符合工业环境 EMC 检测标准（EN61000-6-2/4）。

高规格的工业级保护
视频
相关报导
德承工业平板电脑 HMI 应用的全方位解决方案
2024-10-24
德承工业平板电脑 HMI 应用的全方位解决方案
工控机：发展历程、特性与解决方案
2024-09-10
工控机：发展历程、特性与解决方案
详细规格

P2302 Series

Model NameP2302P2302E
SystemProcessor• Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
  - Intel® Core™ Ultra 7 Processor 165UL 12 Cores Up to 4.9 GHz, TDP 15W
  - Intel® Core™ Ultra 7 Processor 155UL 12 Cores Up to 4.8 GHz, TDP 15W
  - Intel® Core™ Ultra 5 Processor 135UL 12 Cores Up to 4.4 GHz, TDP 15W
  - Intel® Core™ Ultra 5 Processor 125UL 12 Cores Up to 4.3 GHz, TDP 15W
  - Intel® Core™ Ultra 3 Processor 105UL 8 Cores Up to 4.2 GHz, TDP 15W
Memory• 2x DDR5 5600 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Intel® Graphics
Maximum Display Output• Supports Quad Independent Display
CDS• 1x CDS Connector (1920 x 1080 @60Hz)
DP• 1x DisplayPort Connector (4096 x 2304@60Hz)
  * Verified maximum resolution: 3840x2160@ 60Hz
HDMI• 1x HDMI Connector (3840 x 2160 @30Hz)
VGA• 1x VGA Connector (1920 x 1080 @60Hz)
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1x Line-out, Phone Jack 3.5mm
Mic-in• 1x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5GbE LAN, RJ45
 - GbE1: Intel® I225
 - GbE2: Intel® I225
COM• 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 2 x USB 3.2 Gen2x1 (10Gbps), Type A
• 1 x USB 3.2 Gen1x1 (5Gbps), Type A
• 1 x USB 2.0 (480Mbps), Type A
DIO• 16x Isolated Digital I/O (8in/8out), 20-Pin Terminal Block
StorageSSD/HDD• 2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD• 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 4x2 NVMe SSD
• 1x M.2 SSD Shared by M.2 Key B Type 2242 Socket, Support PCIe Gen 3x2 NVMe SSD
RAID• RAID 0/1
ExpansionM.2 Key E Socket• 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Bluetooth Module Expansion
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4x2 / USB3.2 Gen2 x1 / USB2.0), Support 5G/Storage/Add-on Card Expansion
• 1x M.2 Key B Type 2242 (PCIe Gen 3x2), Support Storage/Add-on Card Expansion
PCI Express--• 1x PCI or 1x PCIe Gen3 x4 Expansion slot (with Optional Riser Card)
• Supports maximum dimensions of add-on card (H x L) : 111 x 169mm
SIM Socket• 1 x Front Accessible SIM Socket
CFM (Control Function Module) Interface• 1x CFM Interface for optional IGN Module Expansion
• 1x CFM Interface for optional PoE Module Expansion
Other FunctionClear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
OSD Button• LCD On/Off, Brightness Up, Brightness Down
Internal Speaker• AMP 2W + 2W
Status LED Indicator• Power LED, Storage LED
Antenna Holes• 6x Antenna Holes
PowerPower Button• 1x ATX Power On/Off Button
Power Mode Switch• 1x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Max. Power Consumption• Intel Core™ Ultra 7 Processor 165UL: 79.7W
- Test conducted with CPU, 1x RAM, and 1x storage
- 100% load during burn-in testing
Inrush Current (Peak)• Intel Core™ Ultra 7 Processor 165UL: 5.010 A@24V
Operating StystemWindows• Windows®11, Windows®10
Linux• Ubuntu Desktop 22.04 LTS
PhysicalDimension ( W x D x H )• 254 x 190 x 49.5 mm• 254 x 190 x 69 mm
Weight Information• 2.16kg• 2.26kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / VESA / CDS / DIN Rail
Physical Design• Fanless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• TBC Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EnvironmentOperating Temperature• -40°C to 65°C
  * PassMark BurnIn Test: 100% CPU, 2D/3D Graphics (withoutthermal throttling)
  * With extended temperature peripherals; Ambient with air flow
  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 65°C
Relative Humidity• 95%RH @ 65°C (non-Condensing)
Shock• Operating, 50 Grms
  (w/ SSD, according to IEC60068-2-27)
Vibration• Operating, 1 Grms, 10-500 Hz, 3 Axes
  (w/ SSD, according to IEC60068-2-6)
• Operating, 5 Grms, 5-500 Hz, 3 Axes
  (w/ SSD, according to IEC60068-2-64)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment• EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
订购信息
Available Models
Model No.Description
P2302-R10Intel Meteor Lake-PS Core Series (LGA Socket) Slim Embedded Computer
P2302E-R10Intel Meteor Lake-PS Core Series (LGA Socket) Expandable Embedded Computer, Supporting 1x PCI/PCIe Expansion Card

Package Checklist
P2302 Series Embedded Computer x1PCI / PCIe Card Installation Kit x 1 (For P2302E Only)
Power Terminal Block x1Heatsink x1
Remote Power On/Off Terminal Block Connector x1Thermal Pad x1
DIO Terminal Block Connector x2Wall Mounting Kit x1
Screws Pack x4　

Optional Modules & Accessories
Model No.Description
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Voltage Detection Selectable
CFM-PoE04CFM Module with PoE Control Function, Individual Port 25.5W (For P2302 Only)
CFM-PoE05CFM Module with PoE Control Function, Individual Port 25.5W (For P2302E Only)
MEC-LAN-2002iM.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-40°C~+85°C), 2x RJ45 Connector
MEC-LAN-2002i-SM.2 2242/2260/2280 2-port 10/100/1000 Isolated Ethernet Board(-0°C~+70°C),  2x RJ45 Connector
MEC-USB-2002-SPM.2 2242/2260/2280 2 port USB 3.2 board(-0°C~+70°C),  w/ IDE 20P 90° Cable, 2x USB Type A Connector
MEC-USB-2002CM.2 2242/2260/2280 2-port USB 3.2 Board(-0°C~+70°C),  2x USB Type C Connector
MEC-CAN-2812iM.2 2242/2260/2280 (B+M Key) 2x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 2x DB9 Connector
MEC-CAN-2814iM.2 2242/2260/2280 (B+M Key) 4x Isolated CAN Bus 2.0B Board (-40°C~+85°C), 4x DB9 Connector
MEC-COM-2012M.2 2242/2260/2280 (B+M Key) 2-port RS-232 Serial Board (-40°C~+85°C), 2x DB9 Connector
MEC-COM-2032iM.2 2242/2260/2280 (B+M key) 2-port RS-232/422/485 isolated serial board (-40°C~+85°C), 2x DB9 Connector
RC-E4-02Riser Card with 1x PCIe x4 Slot (For P2302E Only)
RC-PI-02Riser Card with 1x PCI Slot (For P2302E Only)
UB1203Universal Bracket with 2x DB9 Cutout for MEC-COM & MEC-CAN Expansion
UB1211Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1233-R10Universal Bracket with 2x USB Type C Cutout for MEC-USB Expansion
UB1234-R10Universal Bracket with 2x USB Type A Cutout for MEC-USB Expansion
DIN01DIN-RAIL Mount Kit, KMRH-K175
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI
GST360A24-CINAdapter AC/DC 24V 15A 360W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES,GST360A24-CIN
