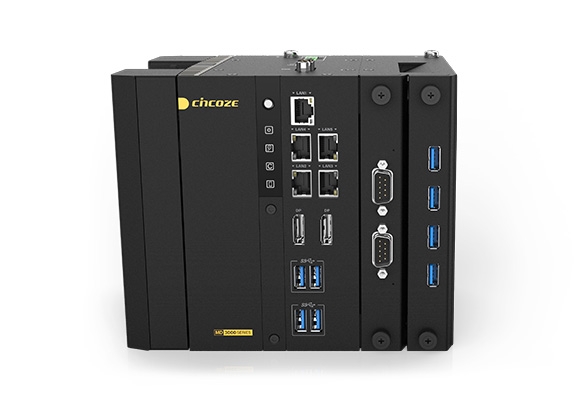

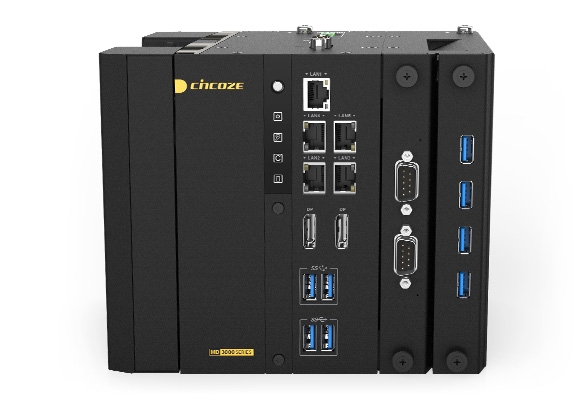

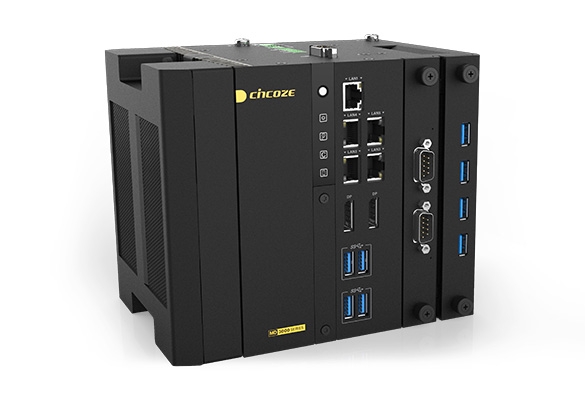

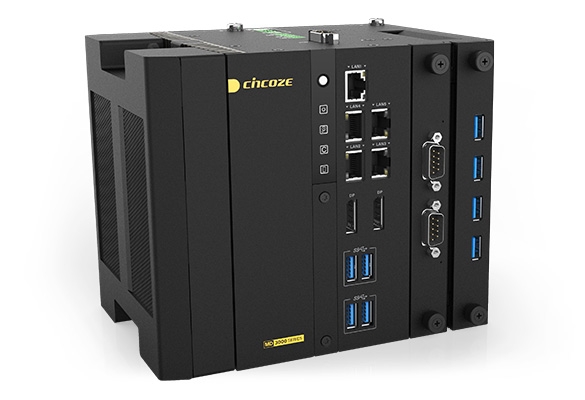

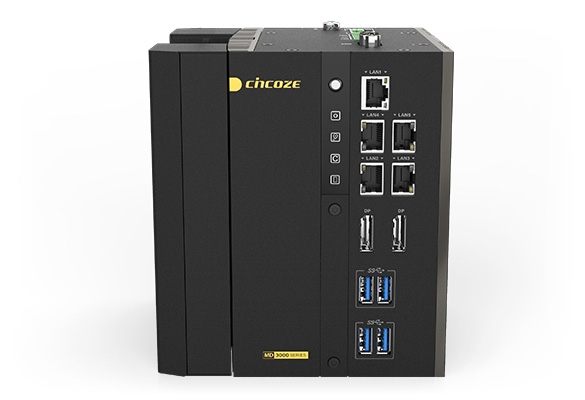

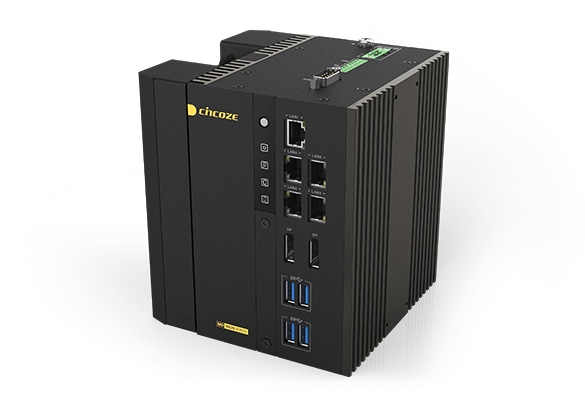

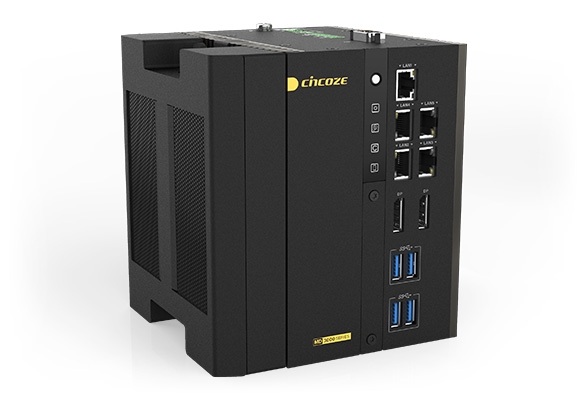

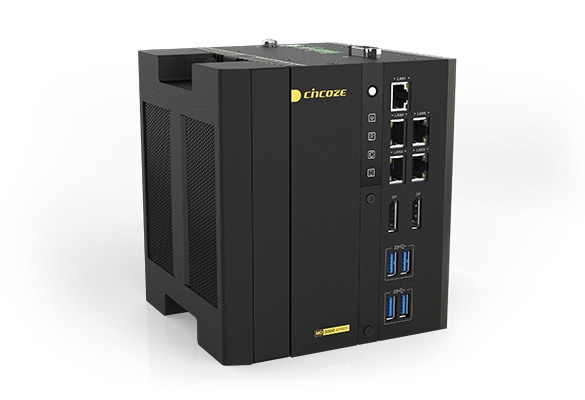

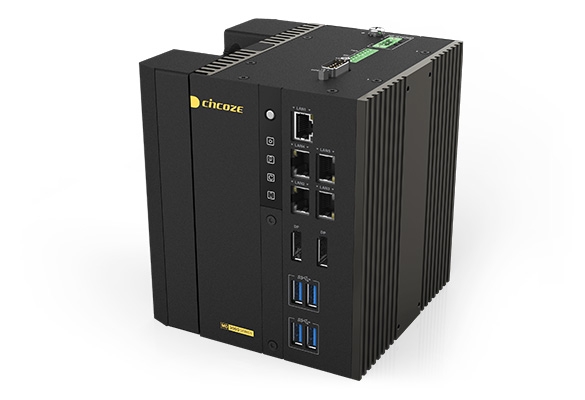

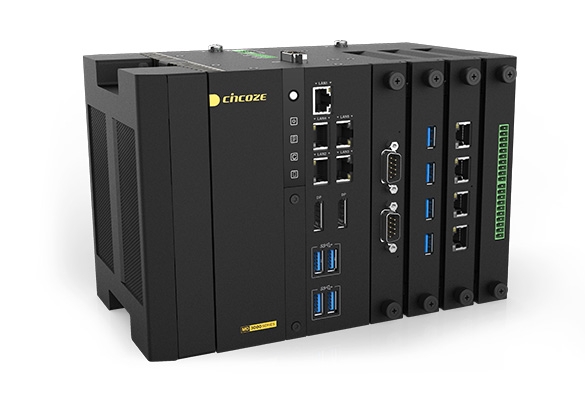

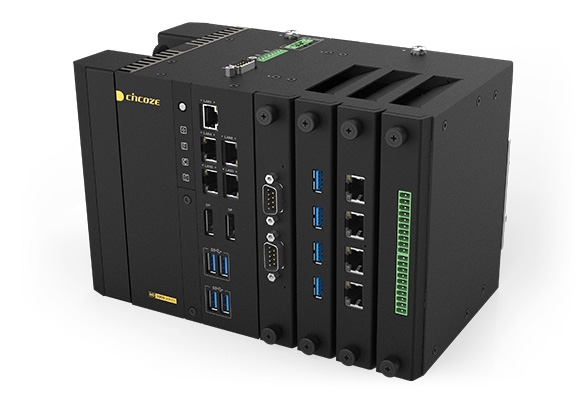

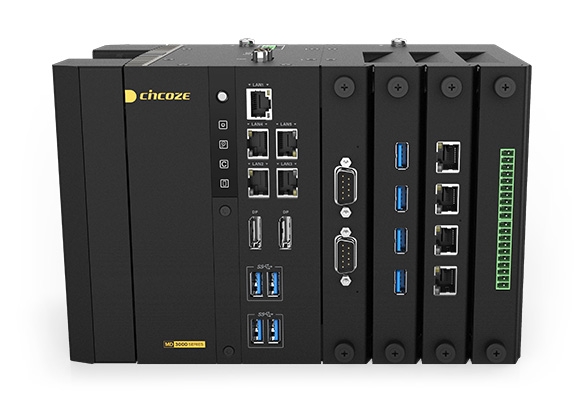

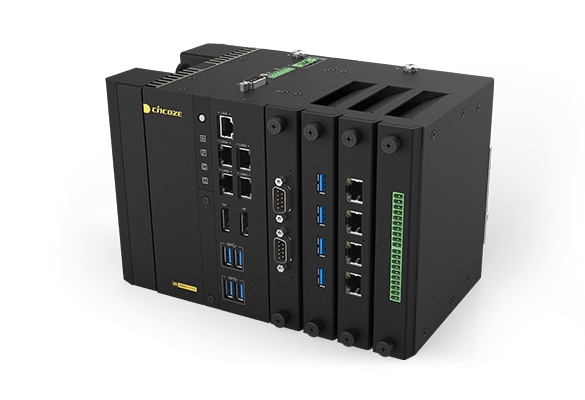

MD-3000

英特尔第 14/13/12 代酷睿系列处理器，高性能、可扩展 DIN 导轨电脑
产品特点
  • Intel® 第 14/13/12 代 Raptor Lake-S Refresh / Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 处理器
  • 可扩展设计，可选配可扩展延伸模块，用于 I/O 模块扩展
  • 紧凑尺寸，支持 DIN 导轨安装
  • 支持带 RAID 功能的双 PCIex4 NVMe 固态硬盘 (SSD)
产品认证
  • EN 61000-6-2
  • EN 61000-6-4
加入咨询清单 规格表
产品介绍

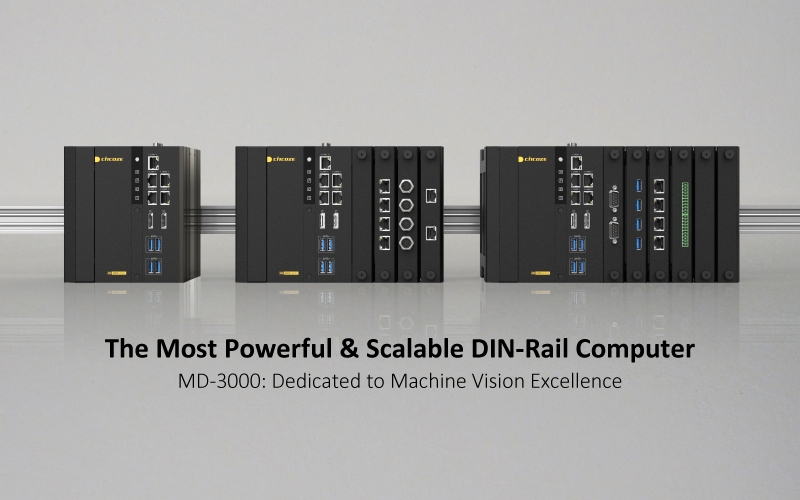

The Most Powerful & Scalable DIN-Rail Computer, MD-3000: Dedicated to Machine Vision Excellence

专为机器视觉与智能制造的工作站及设备机台应用而设计的 Cincoze MD-3000 系列，是市面上少见同时兼具精巧体积、强大效能、全面扩充性与高可靠性的 DIN-Rail 嵌入式电脑。小而强悍：仅 150 mm 高的机身却可搭载 Intel® Core™ Desktop 等级 CPU，能轻松应对高速图像处理与 AI 应用需求；小而全面：除原生高速及工业用 I/O 与 M.2 扩展槽外，可搭配 6-Slot SED 扩展槽（Scalable Expansion Deck），依应用需求灵活增添 I/O 接口、储存与无线传输等功能；小而可靠：延续 Cincoze 一贯的强固设计，亦通过多项工业标准（耐震动、抗冲击、EMC、安全性等），确保在严苛环境中能长时间稳定运行，成为智能制造现场端机器视觉应用的优选运算平台。



强大的 运算效能

——

可搭载 Intel® 第 14/13/12 代 Core™ CPU（35–65W），支持 96GB 5600MHz DDR5 内存与 2x NVMe SSD，提供强大的运算效能能满足多样的机器视觉应用，如视觉引导机器人、检测、量测或可视化等需求。

强大的运算效能
关键的散热技术




关键的 散热技术

——

二大特殊散热设计是维持高运算效能的关键。专利的动态散热机构（Dynamic Thermal Mechanism）设计，密合CPU散热块与上盖，提升导热效率；透过外部风扇迅速带走热能，且无须担心进尘；专利的Smart OTP（Over Temperature Protection）可自主侦测风扇状态进行适当调整，确保CPU能持续不间断运行。

[ 专利号 I893729、I870277 ]




全方位的 扩展选项

——

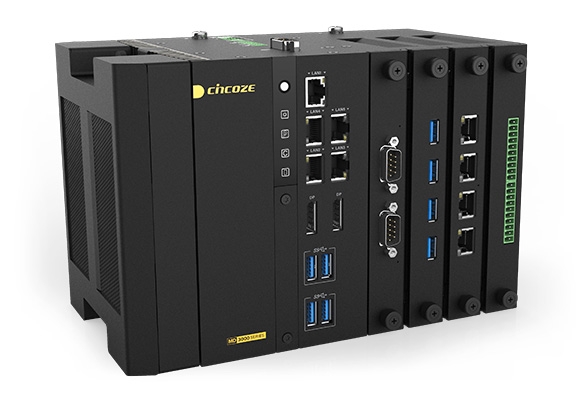

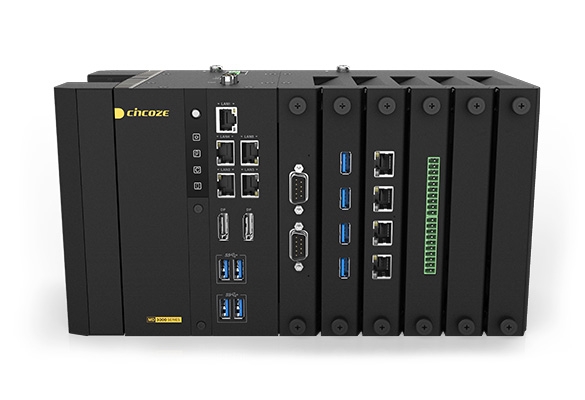

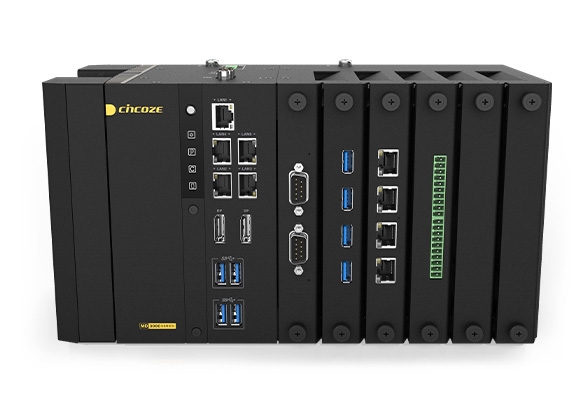

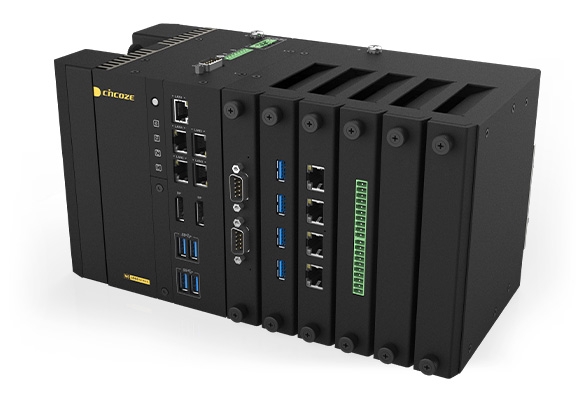

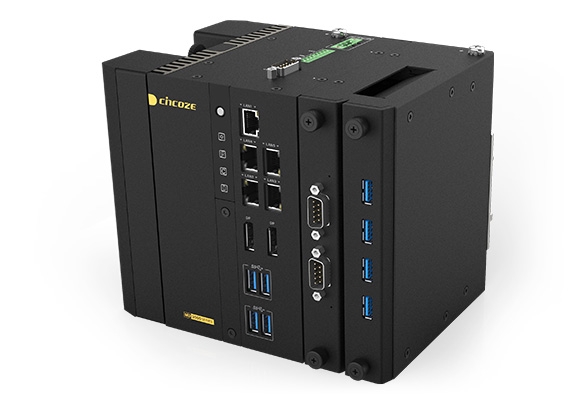

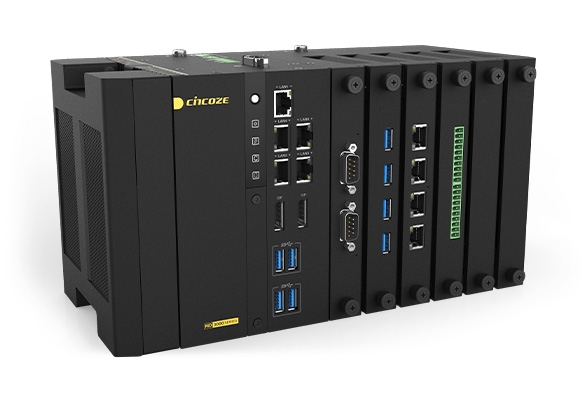

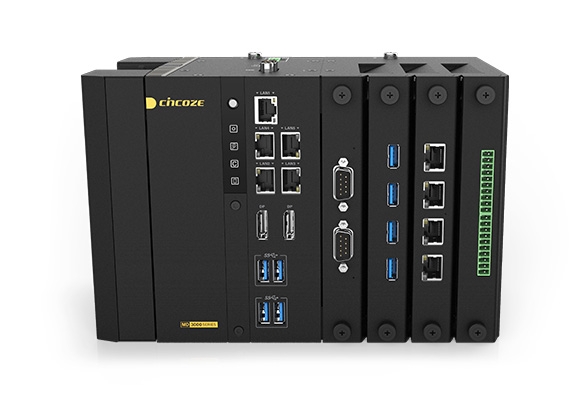

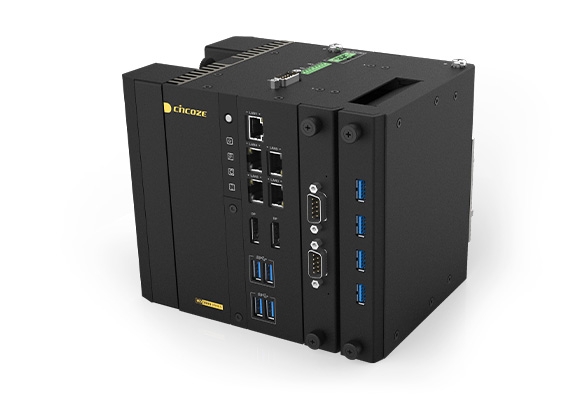

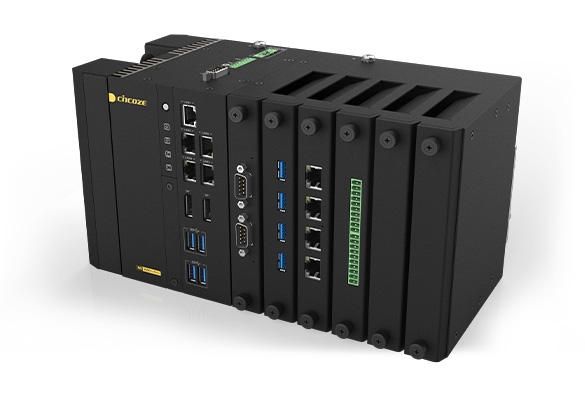

可透过 2x、4x、6-Slot SED 扩展槽，可灵活安装 SEM 模块（如 I/O、PoE、M.2 扩充或 2.5” 储存等），轻松实现接口、功能的增添、无线传输或是大容量储存等多元化应用需求。

全方位的扩展选项
轻松配置 即插即用




轻松配置 即插即用

——

Cincoze 齐全完整的 SEM 模块，除了可灵活增添外，所有模块均具备热插入特性与导轨设计 (Guiding Rail Alignment) 让安装更简单、更快速。




贴心的 安装设计

——

专为机箱、机柜的安装环境量身打造，仅 150 mm 高的机身设计结合 DIN-Rail 安装方式，所有指示灯、维护区与操作区皆集中于前方，让安装布线更便利、操作维护更轻松。

贴心的安装设计
强固与可靠




强固 与可靠

——

支持宽温（-40°C - 65°C）、宽压（9 - 48 VDC）与耐冲击与震动设计外，亦符合工业环境 EMC 标准（EN 61000-6-2/4），为严苛的现场环境提供稳定运行的可靠基础。

视频
相关报导
德承发表全新 MAGNET 产品线，为机器视觉打造高效能 DIN-Rail 嵌入式工控机
2025-10-16
德承发表全新 MAGNET 产品线，为机器视觉打造高效能 DIN-Rail 嵌入式工控机
详细规格
Model NameMD-3000
SystemProcessor

• 14th Generation Intel® Raptor Lake-S Refresh Series CPU:
  - Intel® Core™ i9-14900 24 Cores Up to 5.8 GHz, TDP 65W
  - Intel® Core™ i7-14700 20 Cores Up to 5.4 GHz, TDP 65W
  - Intel® Core™ i5-14500 14 Cores Up to 5.0 GHz, TDP 65W
  - Intel® Core™ i5-14400 10 Cores Up to 4.7 GHz, TDP 65W
  - Intel® Core™ i3-14100 4 Cores Up to 4.7 GHz, TDP 60W
  - Intel® Core™ i9-14901E 8 Cores Up to 5.6 GHz, TDP 65W
  - Intel® Core™ i7-14701E 8 Cores Up to 5.4 GHz, TDP 65W
  - Intel® Core™ i5-14501E 6 Cores Up to 5.2 GHz, TDP 65W
  - Intel® Core™ i5-14401E 6 Cores Up to 4.7 GHz, TDP 65W
  - Intel® Core™ i9-14900T 24 Cores Up to 5.5 GHz, TDP 35W
  - Intel® Core™ i7-14700T 20 Cores Up to 5.2 GHz, TDP 35W
  - Intel® Core™ i5-14500T 14 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i5-14400T 10 Cores Up to 4.5 GHz, TDP 35W
  - Intel® Core™ i3-14100T 4 Cores Up to 4.4 GHz, TDP 35W
  - Intel® Core™ i9-14901TE 8 Cores Up to 5.5 GHz, TDP 45W
  - Intel® Core™ i7-14701TE 8 Cores Up to 5.2 GHz, TDP 45W
  - Intel® Core™ i5-14501TE 6 Cores Up to 5.1 GHz, TDP 45W
  - Intel® Core™ i5-14401TE 6 Cores Up to 4.5 GHz, TDP 45W
  - Intel® Processor 300 2 Cores Up to 3.9 GHz, TDP 46W
  - Intel® Processor 300T 2 Cores Up to 3.4 GHz, TDP 35W
• 13th Generation Intel® Raptor Lake-S Series CPU:
  - Intel® Core™ i9-13900E 24 Cores Up to 5.2 GHz, TDP 65W
  - Intel® Core™ i7-13700E 16 Cores Up to 5.1 GHz, TDP 65W
  - Intel® Core™ i5-13500E 14 Cores Up to 4.6 GHz, TDP 65W
  - Intel® Core™ i5-13400E 10 Cores Up to 4.6 GHz, TDP 65W
  - Intel® Core™ i3-13100E 4 Cores Up to 4.4 GHz, TDP 65W
  - Intel® Core™ i9-13900TE 24 Cores Up to 5.0 GHz, TDP 35W
  - Intel® Core™ i7-13700TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i5-13500TE 14 Cores Up to 4.5 GHz, TDP 35W
  - Intel® Core™ i3-13100TE 4 Cores Up to 4.1 GHz, TDP 35W
• 12th Generation Intel® Alder Lake-S Series CPU:
  - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W
  - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W
  - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W
  - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W
  - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W
  - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W
  - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W
  - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W
  - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W
  - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W
  - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W
  - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W

Chipset• Intel R680E Chipset
Memory• 2x DDR5 SO-DIMM sockets, support Un-buffered and ECC Type memory, up to 96GB
  - Core™ i9/i7: Support 5600/4800 MHz with Single Rank memory and 5200/4800 MHz with Dual Rank memory.
  - Core™ i5/i3/Pentium®/Celeron®/Intel® Processor: Support 4800 MHz.
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
• Integrated Intel® UHD Graphics 730: Core™ i3
• Integrated Intel® UHD Graphics 710: Pentium®/Celeron®/Intel® Processor
Maximum Display Output• Supports Dual Independent Display
Display Port• 2x DisplayPort Connector: 4096 x 2304 @ 60Hz
  * Verified maximum DP resolution: 3840x2160 @ 60Hz
I/OLAN• 5x GbE LAN, RJ45
  - GbE1: Intel® I219
  - GbE2~5: Intel® I210
COM• 1x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 4x USB 3.2 Gen1x1 (5Gbps), Type A
Storage / ExpansionM.2 Key M Socket• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4), Support Storage / Add-on Card Expansion
• 1x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA 3.0), Support Storage / Add-on Card Expansion
Expansion Deck• 1x PCIex16 interface for Optional Scalable Expansion Deck
Other FunctionRAID• Supports RAID 0/1
External FAN Connector• 1x External FAN Connector (Support Smart Fan by BIOS)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Watchdog Timer• Software Programmable, Supports 256 Levels System Reset
Status LED Indicator• Power LED
• Storage LED
• Thermal LED
• GPIO LED
PowerPower Button• 1x ATX Power On/Off Button
Power Mode Switch• 1x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1x Remote Power LED, 2-pin Terminal Block
Max Power Consumption• 35W CPU: 195.2W
• 65W CPU: 279.4W
  - Test conducted with CPU, 1x RAM, and 1x storage
  - 100% load during burn-in testing
Inrush Current (Peak)• 35W CPU: 9.0A@24V
• 65W CPU: 9.026A@24V
PhysicalDimension ( W x D x H )• 135.5 x 132 x 152.2 mm
Weight Information• 3.03 kg
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / DIN-RAIL Mount
Physical Design• Cableless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input Protection• Yes
Over Voltage Protection• Protection Range: 51~58V
• ​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 356,683 Hours
  - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• 35W TDP Processor: -40°C to 65°C (-40℉ to 149℉)
• 45W TDP Processor: -40°C to 55°C (-40℉ to 131℉)
• 65W TDP Processor: -40°C to 45°C (-40℉ to 113℉)
  * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
  * With external fan, extended temperature peripherals; Ambient with air flow
  * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 85°C (-40℉ to 185℉)
Relative Humidity• 95%@65℃
Shock• Operating, 30 Grms, Half-sine 11 ms Duration
  (w/ External Fan & SSD, according to IEC60068-2-27)
Vibration• Random Vibration: Operating, 3 Grms, 5-500 Hz, 3 Axes (w/SSD, according to IEC60068-2-64)
• Sinusoidal Vibration: Operating, 1 Grms, 10-500 Hz, 3 Axes
  (w/ External Fan & SSD, according to IEC60068-2-6)
EMC• CE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Industrial Environment• EMC
  - EN/BS/IEC 61000-6-4: 2019 Class A
  - EN/BS/IEC 61000-6-2: 2019
订购信息
Available Model
Model No.Description
MD-3000-R1014/13/12th Generation Intel Core Series Processors, High Performance and Scalable DIN-Rail Computer

Package Checklist
MD-3000 DIN-Rail Computer x1CPU Heatsink Kit x1
Screw Pack x1Power Terminal Block Connector x1
Remote Function Terminal Block Connector x 1

Optional Scalable Expansion Deck
Model No.Description
SED-201-R102-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules
SED-401-R104-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules
SED-402-R104-Slot Scalable Expansion Deck, Supports up to 2 I/O Modules and 2 Storage Modules
SED-601-R106-Slot Scalable Expansion Deck, Supports up to 4 I/O Modules and 2 Storage Modules

Optional Scalable Expansion Module
Model No.Description
SEM-LAN101-R10Scalable Expansion Module with 4x 1GbE LAN Ports, RJ45 Connector, 1 Deck
SEM-MLAN101-R10Scalable Expansion Module with 4x 1GbE LAN Ports, M12 A-Coded Connector, 1 Deck
SEM-POE201-R10Scalable Expansion Module with 4x 1GbE PoE Ports, RJ45 Connector, 2 Decks
SEM-MPOE201-R10Scalable Expansion Module with 4x 1GbE PoE Ports, M12 A-Coded Connector, 2 Decks
SEM-10GLAN101-R10Scalable Expansion Module with 2x 10GbE LAN Ports, RJ45 Connector, 1 Deck
SEM-10GPOE201-R10Scalable Expansion Module with 2x 10GbE PoE Ports, RJ45 Connector, 2 Decks
SEM-USB101-R10Scalable Expansion Module with 4x USB3.2 Gen1 (5Gbps), Type A, 1 Deck
SEM-COM101-R10Scalable Expansion Module with 2x RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck
SEM-ICOM101-R10Scalable Expansion Module with 2x Isolated RS-232/422/485, (Supports 5V/12V), DB9, 1 Deck
SEM-DIO101-R10Scalable Expansion Module with 16x Isolated DIO (8-in/8-out), 20-pin Terminal Block, 1 Deck
SEM-M2B101-R10Scalable Expansion Module with 1x M.2 Key B Socket Type 2242/3052/2260/2280, 1 Deck
SEM-M2E101-R10Scalable Expansion Module with 1x M.2 Key E Socket Type 2230, 1 Deck
SEM-SAT101-R10Scalable Expansion Module with 1x 2.5” HDD/SSD SATA Drive Bay, 1 Deck

Optional Accessories
Model No.Description
SDR-480-24DIN Rail Power Supplies 480W 24V 20A PFC Function, SDR-480-24
Power Cable1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube
WALL01-R10Wall Mount Kit for DA & MD Series

相关下载
Datasheet
文件名发行日期下载
MD-3000 Datasheet2025/10/16下载
Manual
文件名发行日期下载
MD-3000 User Manual2025/09/26
