产品介绍

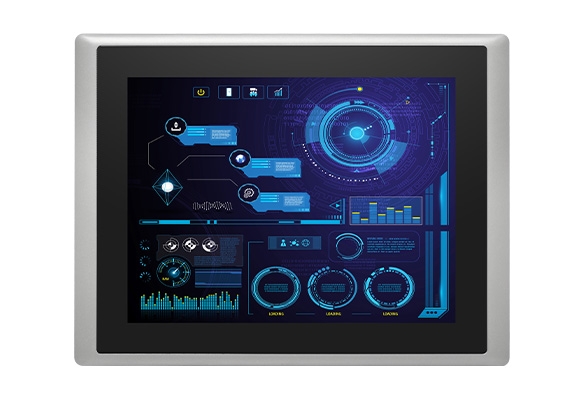

CV-110H是10.4寸的液晶显示屏模块，带投射电容式或5线电阻式触摸屏。提供分辨率高达1024 x 768 (XGA) 和400 nits的亮度。CV-110H具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。在CDS模块化技术的支持下，CV-110H可透过免维护的操作，自行配置与升级您的转换型显示系统。
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
CV-110H Series
| Model Name | CV-110HR | CV-110HC | |
|---|---|---|---|
| Display | LCD Size | 10.4" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 470 cd/m² | ||
| Contrast Ratio | 1000 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.2055 (H) x 0.2055 (V) | ||
| Viewing Angle (H-V) | 178 / 178 | ||
| Backlight MTBF | 70,000 hours (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 295 x 227.3 x 56.2 mm | |
| Weight Information | 2.24 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | ||
| Power | Power Consumption | 4.99W (Typ.) | 4.94W (Typ.) |
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals) | Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
订购信息
| Model No. | Product Description |
|---|---|
| CV-110HR-R11 | 10.4" TFT XGA 4:3 Display Module with Resistive 5-wire Touch |
| CV-110HC-R12 | 10.4" TFT XGA 4:3 Display Module with Projected Capacitive Touch |
| √ CV-110H Series Display Module x 1 | √ Panel Mounting Kit x 1 |
