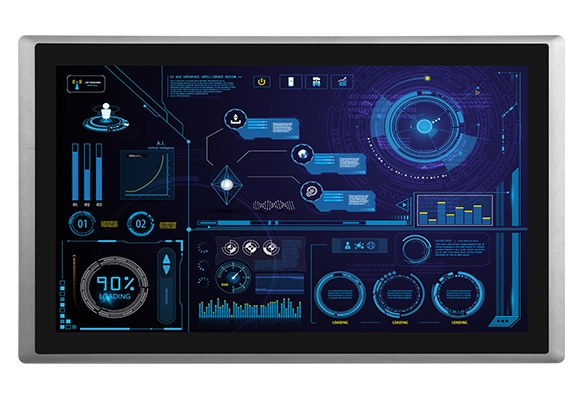

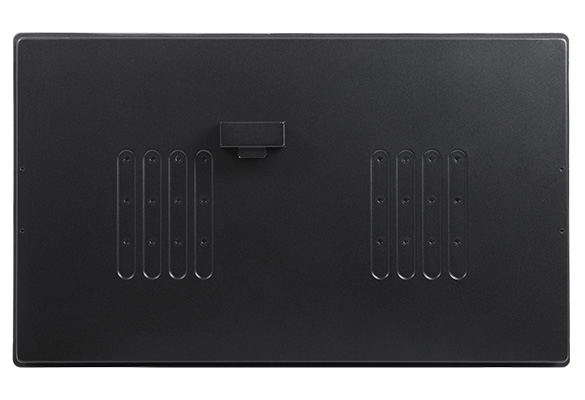

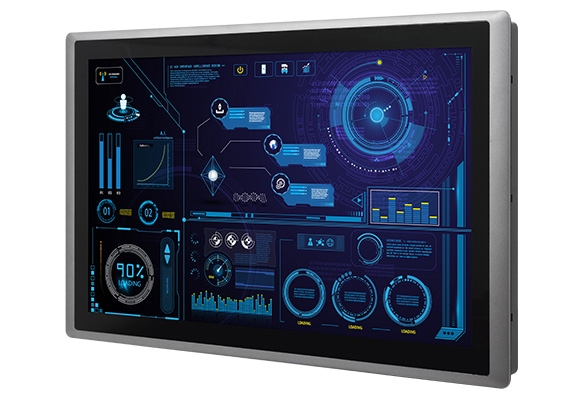

CV-W121 显示屏模块

CV-W121 Series

21.5" TFT Full HD 16:9 转换型显示屏模块，投射电容式或5线电阻式触摸屏、无触摸功能显示屏

产品特点

21.5" TFT Full HD 16:9 LCD 投射电容式或5线电阻式触摸屏、无触摸功能显示屏
LED背光寿命可达50,000小时
分辨率可达1920 x 1080 (Full HD)
300 nits的亮度
采用铝压铸前框设计
IP 65防护等级的前面板
支持CDS技术
安全认证：UL, cUL, CB, IEC, EN 62368-1

产品介绍
详细规格
订购信息
相关下载

产品介绍

CV-W121是21.5寸的液晶显示屏模块，带投射电容式或5线电阻式触摸屏、无触摸功能显示屏。提供分辨率高达1920 x 1080 (Full HD) 和300 nits的亮度。CV-W121具有全平面和IP65防尘/防水的前面板，前框架采用铝压铸制造，十分坚固可靠，适用于工业应用和恶劣环境。在CDS模块化技术的支持下，CV-W121可透过免维护的操作，自行配置与升级您的转换型显示系统。

需要协助？

联系我们

info@cincoze.com

详细规格

CV-W121 Series

Model Name		CV-W121R	CV-W121C	CV-W121G
Display	LCD Size	21.5” (16:9)
	Max. Resolution	1920 x 1080
	Brightness (cd/m2)	300
	Contrast Ratio	5000 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.24825 (H) x 0.24825 (V)
	Viewing Angle (H-V)	178 / 178
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Resistive 5-wire	Projected Capacitive	Glass Screen
Physical	Dimension (W x D x H)	550 x 330.5 x 63.2mm
	Weight Information	5.56 kg
	Mechanical Construction	Die-Casting Flat Surface
Power	Power Consumption	24.85W (Max.)	24.8W (Max.)	24.35W (Max.)
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	0°C to 60°C (with Industrial Grade peripherals; Ambient with air flow)
	Storage Temperature	-20°C to 60°C
	Relative Humidity	80% RH @ 50°C (non-Condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

订购信息

Available Models
Model No.	Product Description
CV-W121R-R10	21.5" TFT Full HD 16:9 Display Module with Resistive 5-wire Touch
CV-W121C-R11	21.5" TFT Full HD 16:9 Display Module with Projected Capacitive Touch
CV-W121G-R10	21.5" TFT Full HD 16:9 Display Module without Touch

Package Checklist
√ CV-W121 Series Display Module x 1	√ Panel Mounting Kit x 1
