产品介绍

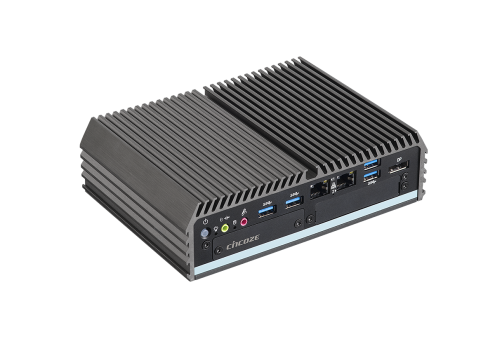

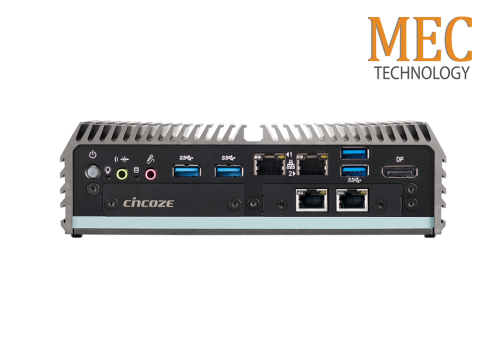

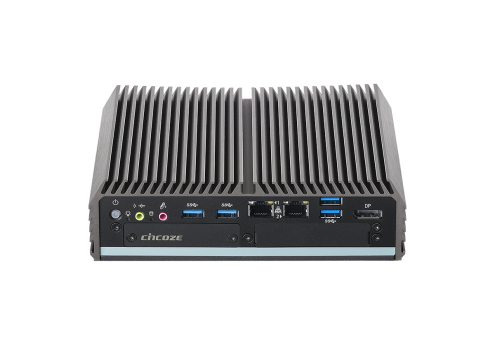

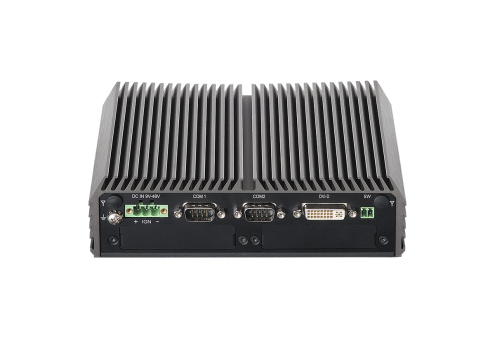

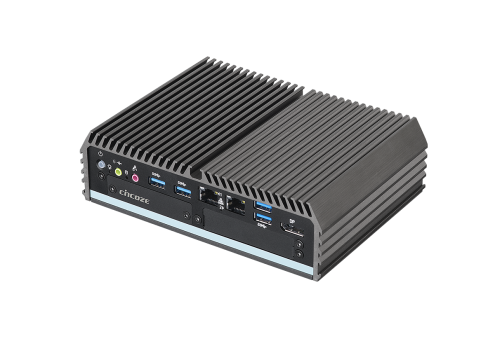

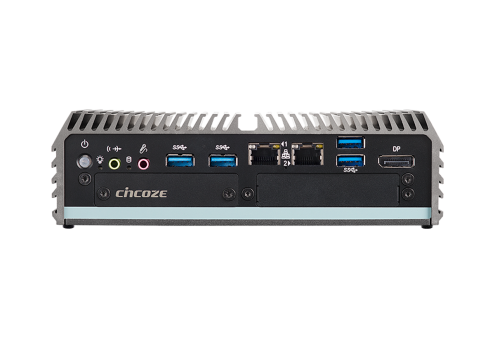

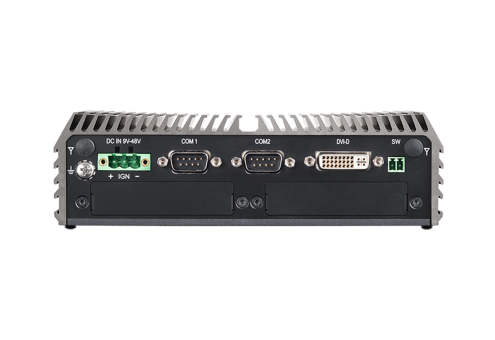

DC-1200是一款紧凑型无风扇嵌入式计算机，采用Intel® Pentium® N4200四核处理器，在具挑战性的环境下提供了令人难以置信的尺寸性能比。尽管尺寸紧凑仍具备丰富的I/O接口，包括：串口、USB 3.0、GbE网口、全尺寸Mini-PCIe插槽、双SIM插槽、DVI-D和显示端口，该系统还提供2.5寸SATA HDD / SSD托盘和mSATA插槽，可满足广泛的存储需求。

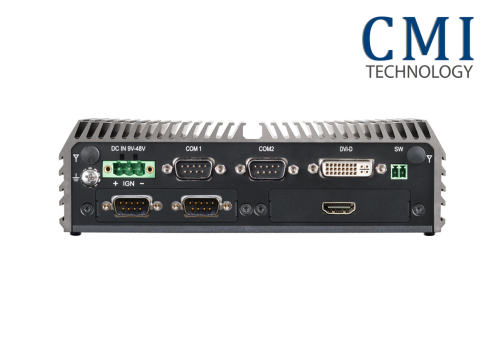

此外，利用德承即插即用的CMI和CFM模块，可扩展数字I/O、串口、智能点火控制、网口供电（POE），甚至是第三个显示输出接口，更容易用于各种工业应用。DC-1200具有严格的工业级保护、宽工作温度范围和宽压直流电源输入，提供了一个强大的、可扩展的计算平台，以确保持久的性能和降低维护成本。
此外，利用德承即插即用的CMI和CFM模块，可扩展数字I/O、串口、智能点火控制、网口供电（POE），甚至是第三个显示输出接口，更容易用于各种工业应用。DC-1200具有严格的工业级保护、宽工作温度范围和宽压直流电源输入，提供了一个强大的、可扩展的计算平台，以确保持久的性能和降低维护成本。

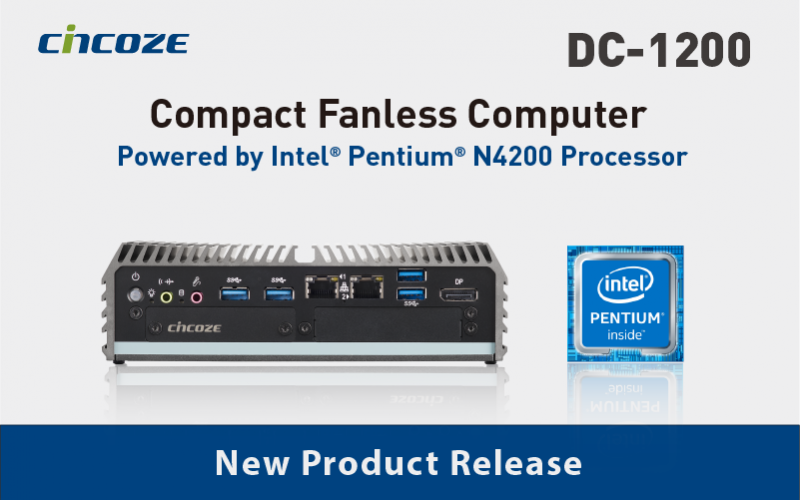

相关报导
详细规格
| Model Name | DC-1200 | |
|---|---|---|
| Processor System | CPU | Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz |
| BIOS | AMI BIOS, 8MB SPI Flash ROM built on board | |
| Memory | Technology | DDR3L 1333/1600/1866 MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Integrated Graphics | Integrated Intel® HD Graphics 505 (Pentium® N4200) |
| Triple Display Supported | Yes (DVI-D, DisplayPort and one output from optional CMI module) | |
| Audio | Codec | Realtek ALC888-GR |
| I/O Ports | DVI-D | 1 (1920 x 1080 @60Hz) |
| DP | 1 (4096 x 2160 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160. | |
| GbE LAN | 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE) | |
| USB 3.2 Gen1 | 4 | |
| COM Port | 2 (DB9, RS-232/422/485 with Auto Flow Control (Supports 5V/12V)) | |
| Line-out | 1 | |
| Mic-in | 1 | |
| ATX Power On/Off Button | 1 | |
| AT/ATX Mode Switch | 1 | |
| Clear CMOS Switch | 1 | |
| Remote Power On/Off Connector | 1 | |
| Ignition DIP Switch | 1 (12V/24V, need to work with CFM module) | |
| Storage | 2.5” HDD/SSD Drive Bay | 1 (SATA 3.0) |
| mSATA | 1 (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini-PCIe Socket | 2 (Full-size) |
| SIM Socket | 2 (for Signal Redundancy) | |
| Control Function Module (CFM) Interface | 2 | |
| Combined Multiple I/O (CMI) Interface | 2 | |
| Antenna Holes | 2 | |
| Other Functions | Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Supports Instant Reboot Technology | 0.2 sec | |
| Power Requirement | Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Power Connector | 1x 3-pin Terminal Block | |
| Power Adaptor | Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional) | |
| Physical | Dimension (WxDxH) | 185 x 131 x 56.5 mm |
| Weight | 1.42kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / Din Rail (Optional: Side + Din Rail Mounting Kit) | |
| Unibody Chassis | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 | |
| MTBF | 479,119Hours | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DC-1200-N42-R10 | Intel® Pentium® Processor N4200 Compact Size Fanless Computer |
| √ DC-1200 Compact Size Fanless Embedded Computer x1 | √ Power Terminal Block Connector x1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Remote Power On/Off Terminal Block Connector x1 |
| √ Screw Pack x1 | √ DIN Rail Mounting Kit x1 |
| √ Wall Mounting Kit x1 |
| Model No. | Description |
|---|---|
| CMI-DVI01/UB1107 | CMI Module with 1x DVI-D Connector for DC-1200,1x Universal Bracket with 1x DVI-D Cutout for DC-1200 |
| CMI-VGA01/UB1116 | CMI Module with 1x VGA Port for DC-1200, 1x Universal Bracket with 1x VGA Cutout for DC-1200 |
| CMI-HD02/UB1108 | CMI Module with 1x HDMI Port for DC-1200,1x Universal Bracket with 1x HDMI Cutout for DC-1200 |
| CMI-COM03/UB1103 | CMI Module with 2x RS232/422/485 (Support 5V/12V) for DC-1200,1x Universal Bracket with 2x DB9 Cutout for DC-1200 |
| CMI-DIO03/UB1115 | CMI Module with 8x Optical Isolated DIO (4 in/4 out) for DC-1200,1x Universal Bracket with DIO Cutout for DC-1200 |
| CFM-IGN02 | CFM Module with Power Ignition Sensing Control Function, Select 12V/24V |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| MEC-COM-M212-TDB9/UB1103 | Mini-PCIe Module with 2x COM Ports,1x Universal Bracket with 2x DB9 Cutout for DC-1200 |
| MEC-LAN-M102-15/UB1111 | Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket with 2x RJ45 Cutout for DC-1200 Front Bezel |
| MEC-LAN-M102-15/UB1129 | Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket with 2x RJ45 Cutout for DC-1200 Rear Bezel |
| SIDE03 | Side Mount Kit for DC-1200 Series, with KMRH-K175 for DIN-Rail option |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C), level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI |
| SL2-SL3 | US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3 |
| SL6-SL3 | EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3 |
| QP026-SL3 | UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3 |
