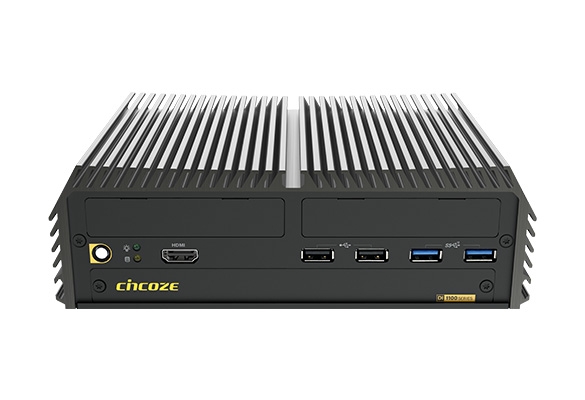

DI-1100
Intel® 第八代 Core™ 系列处理器，高效且节能的强固型电脑
产品特点
- Intel® 第八代 Core™ Ui7/i5/i3 处理器 (TDP 15W)

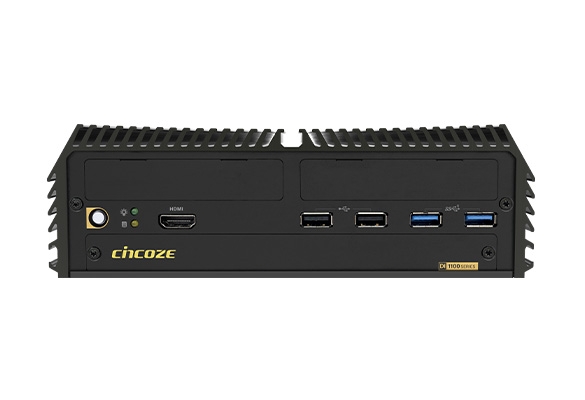

- 前维护区 1x 2.5” HDD / SSD 热插拔抽取式托盘，可快速抽取硬盘。支援 1x mSATA 插槽
- 2 x 全尺寸Mini PCIe 插槽，增添多元扩展性
- 2 x 前置 SIM 卡插槽，确保行动数据传输不间断
- CMI-I/O 扩展模块 (选配) : 支持 2x 10 GbE LAN、M12（A型或 X型接口）
- CFM 功能扩展模块 (选配) : 支持智能点火控制、4x PoE
- 宽工作温度 -40°C 至 70°C
- 通过 MIL-STD-810G、E-mark、EN50155（EN 50121-3-2 only）认证
产品介绍
体积外型紧凑的DI-1100具备了高效能、丰富的 I/O和扩展的灵活性。DI-1100搭载第 8 代Intel® Core™ U系列处理器（Whiskey Lake），在提供性能的同时也拥有 15W TDP 的低功耗优势。在紧凑外型下蕴含丰富 I/O 接口并支持多种功能扩展的选项，可满足狭小空间中对高效能强固嵌入式电脑的需求，适合工业自动化、仓储物流、交通、安全监控以及物联网等应用。
高效能、低功耗
——
DI-1100 采用第 8 代Intel® Core™ U系列 i7/i5/i3处理器，其运算效能能轻松满足对于图形和运算的要求，面对物联网时代各式外围设备数据串联汇整的应用也游刃有余。仅15W TDP的超低功耗，非常适合受限于电池容量的移动式设备。
小而紧凑
——

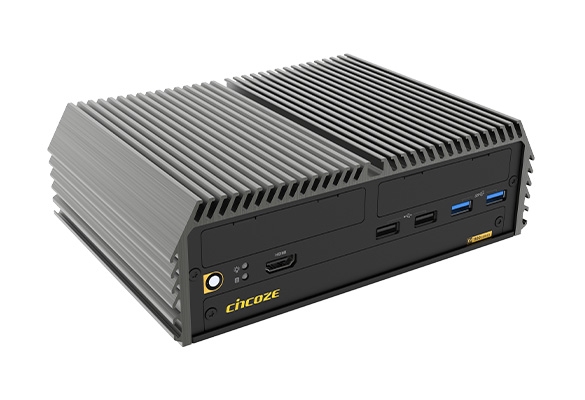

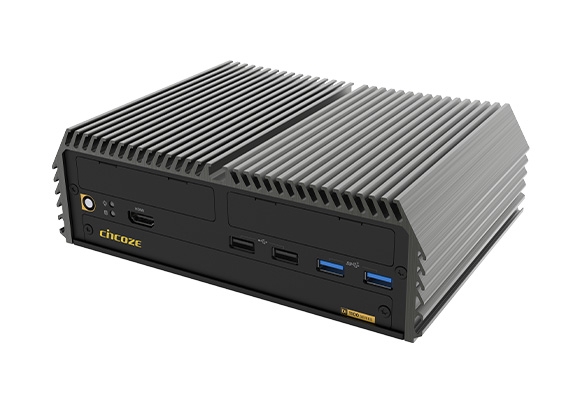

DI-1100 外形紧凑，尺寸仅203 mm (W) x 142 mm (D) x 66.8 mm (H)，无论是安装在移动设备（自动导引车AGV、自主移动机器人AMR）、封闭狭小的车内空间或是工厂端的小型机箱中，都是非常理想的选择。
丰富的工业 I/O和功能
——

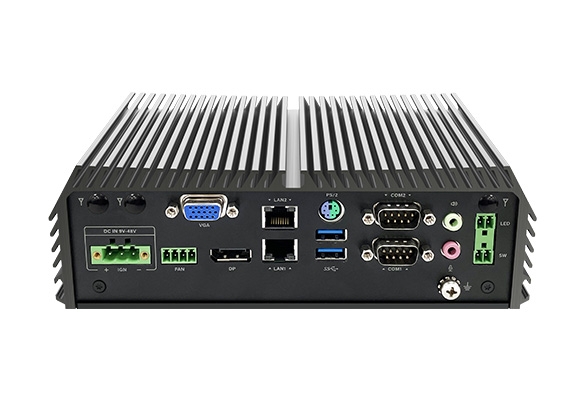

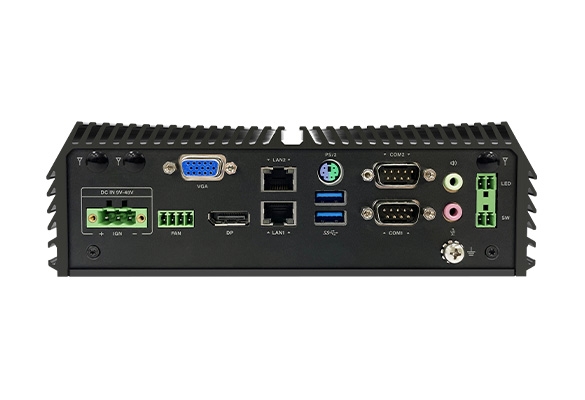

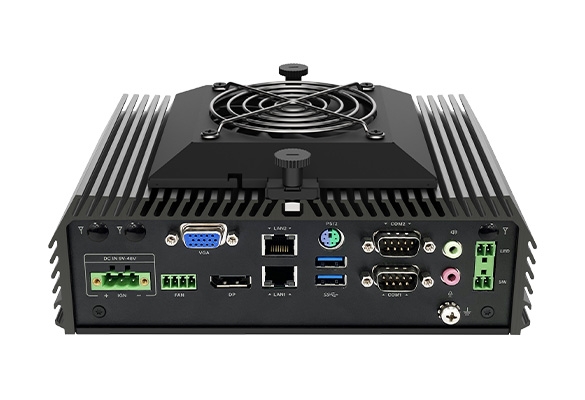

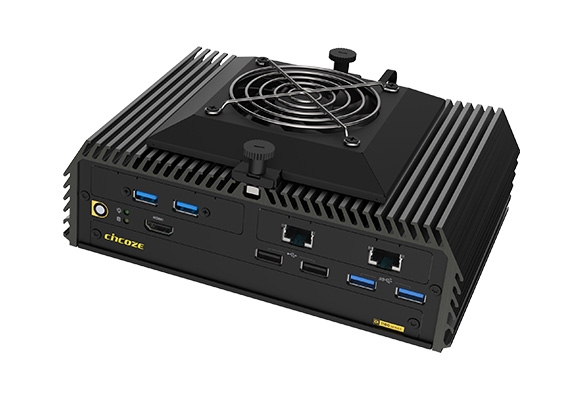

紧凑尺寸下具备丰富 I/O和功能。原生端口包括：2x GbE LAN、4x USB 3.2、2x USB 2.0、2x RS232/422/485 ，能够轻松连接各式传输接口的设备。支持 2x 全尺寸Mini PCIe可扩展无线传输模块， 2x SIM 卡插槽可确保行动数据传输不间断。精心设计的外置风扇，可有效排除由PoE供电的高功率相机所产生的热量，确保效能及稳定性。
特有的扩展能力
——
DI-1100 可藉由德承专属的CMI及CFM模块进行I/O及功能的扩展，系统整合商可灵活配置并快速实现功能部署。CMI 模块可扩展额外的 LAN、10GbLAN、M12（A型或 X型接口）等各种 I/O接口，而 CFM 模块可增添智能点火控制及 PoE 功能。
多元灵活的安装方式
——
DI-1100支持多种安装方式，包括壁挂/ 侧挂/ 导轨(DIN -rail)/ VESA 安装。无论是现场端、机箱中还是设备内部，皆可快速进行安装。
行业认证的强固设计
——
DI-1100 传承一贯专为工业环境打造的强固设计。除宽温（-40至70°C）、宽电压（9 - 48 VDC）以及过电压、过电流和静电保护（ESD）等保护机制外，也符合美军设备检验标准（MIL-STD-810G）并通过轨道交通市场 EN50155（EN 50121-3-2 only）规范、以及车载应用E-mark认证。
视频
相关报导
详细规格
| Model Name | DI-1100 | |
|---|---|---|
| System | Processor | Onboard 8th Intel® Core™ U Processors (Whiskey Lake) • Intel® Core™ i7-8665UE Quad Core Processor (8M Cache, up to 4.4 GHz, 15W) • Intel® Core™ i5-8365UE Quad Core Processor (6M Cache, up to 4.10 GHz, 15W) • Intel® Core™ i3-8145UE Dual Core Processor (4M Cache, up to 3.90 GHz, 15W) |
| Memory | 1x DDR4 SO-DIMM Socket, Support Up to 2400MHz 32 GB ( Un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 620 |
| Maximum Display Output | Supports Triple Independent Display | |
| HDMI | 1x HDMI Connector (4096 x 2304@60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 2x 10 Gbps USB 3.2 Gen2, Type A • 2x 5 Gbps USB 3.2 Gen1, Type A • 2x 480 Mbps USB 2.0, Type A | |
| PS/2 | 1x PS/2, 6 Pin Mini-DIN Female Connector | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA3.0 ) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| RAID | Support RAID 0/1 | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket |
| SIM Socket | 2x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x High Speed CMI Interface for optional CMI Module Expansion • 1x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Reset Button | 1 x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block | |
| Total Power Budget | 120W | |
| Physical | Dimension ( W x D x H ) | 203 x 142 x 66.8 mm |
| Weight Information | 1.74 KG | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 513,628 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 15W CPU: -40°C to 70°C • 15W CPU + 61.6W PoE + FAN: -40°C to 70°C |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DI-1100-i3-R10 | 8th Generation Intel Core i3-8145UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1100-i5-R10 | 8th Generation Intel Core i5-8365UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1100-i7-R10 | 8th Generation Intel Core i7-8665UE High Performance, Compact and Modular Rugged Embedded Computer |
| √ DI-1100 Embedded System x1 | √ Heatsink Pack x1 |
| √ Wall Mount Kit x1 | √ Screw Pack x1 |
| √ Remote Function Terminal Block Connector x 2 | √ Power Terminal Block Connector x1 |
| √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 / UB1512-R11 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12 / UB1510-R11 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout |
| CMI-XM12LAN01-R10 / UB1510-R11 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports/ 1x Universal Bracket with 4x M12 Cutout |
| CMI-10GLAN04-R10 / UB1528-R11 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout |
| CMI-COM05-R10 / UB1503-R11 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout |
| CMI-DIO05-R10 / UB1518-R10 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| MEC-LAN-M102-30 / UB1511-R11 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| MEC-COM-M212-TDB9 / UB1503-R11 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout |
| Model No. | Description |
|---|---|
| CFM-PoE06-R10 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN102 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| Model No. | Description |
|---|---|
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| SIDE01 | SIDE Mount Kit |
| FAN-EX103 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module) |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
