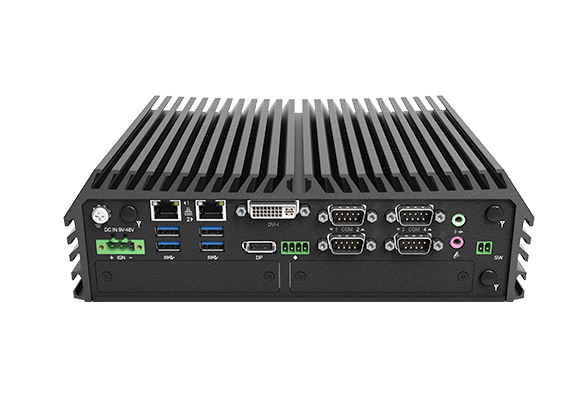

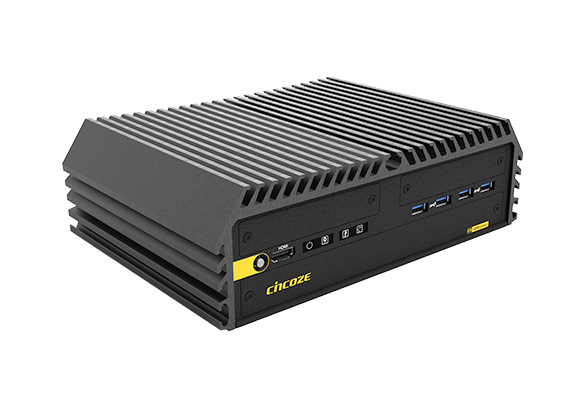

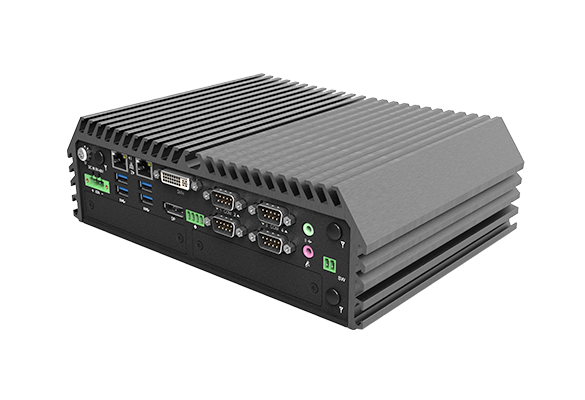

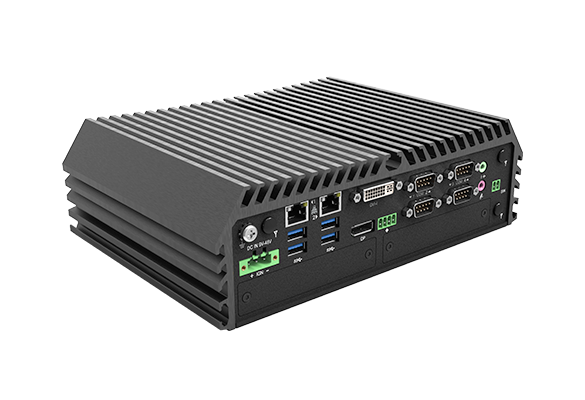

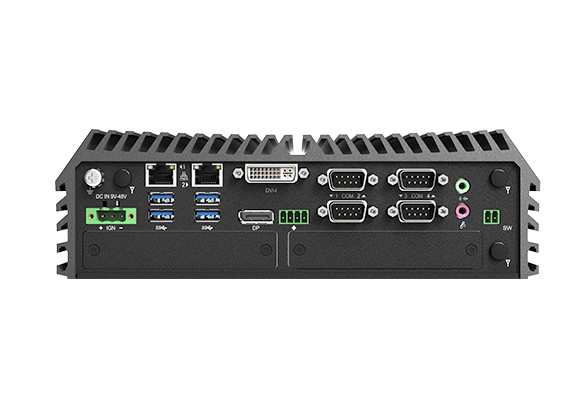

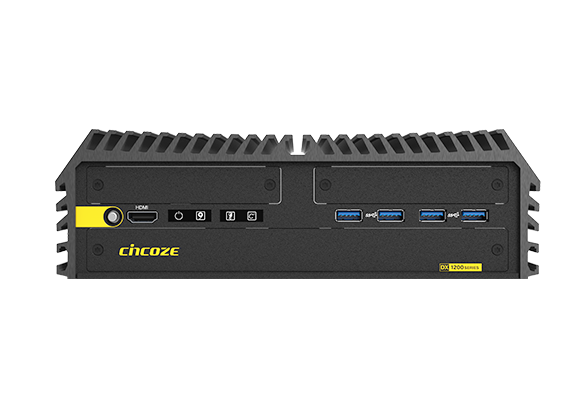

DX-1200
- Intel® 第 13/12 代 Raptor Lake-S / Alder Lake-S Core™ i9/i7/i5/i3 处理器（最大 65 W TDP）
- 2 x DDR5 SO-DIMM 插槽, 支持 ECC/非 ECC 类型内存, 高达 4800MHZ, 64GB
- 4 路独立显示 (HDMI / DP / DVI-I)
- 1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
- 支持 I/O 模块扩展的 CMI 技术
- 支持电源点火感应和 PoE 功能的 CFM 技术
- 宽工作温度 -40°C 至 70°C
- 安全标准：UL、cUL、CB、IEC、EN 62368-1
DX-1200 是款无风扇嵌入式电脑，在其紧凑体积下充分将效能与强固发挥到最大化。由于这些出色的特性，DX-1200 成为了智能制造、机器视觉和边缘 AI 应用的理想选择。DX-1200 在效能上可搭载 Intel® 第 13/12 代 Raptor Lake-S / Alder Lake-S Core™ 处理器（TDP 高达 65 W）及 DDR5 4800 MHz 内存，展现了高速流畅的运算效能。在功能方面，凭借丰富的原生 I/O 及模块化扩展设计，可以有效且实时地满足多元化的应用需求。
Product Category >>>> Rugged Embedded Fanless PC
卓越的 运算效能
——
DX-1200 可搭载 Intel® 7 制程的第 13/12 代 Core™ i9/i7/i5/i3（Raptor Lake-S / Alder Lake-S）处理器，可拥有高达 24 核心（8P + 16E）及 32 线程的配置，处理效能是 Comet Lake-S 的 1.35 倍以上。此外，透过 Intel® Xe 架构的 UHD 770 显示芯片，在 GPU 图像分类推理效能则是 Comet Lake-S 的 2.8 倍，非常适用于 AI 和多种边缘运算应用，展现卓越的处理效能。
高速、安全兼备的 内存
——
两组 DDR5 SO-DIMM 插槽可支持高达 64GB 4800 MHz 内存。此外，还支持内存 ECC 错误修正技术（Error Correction Code），对于稳定性和可靠度要求极高的工控领域至关重要。
丰富、多元的 扩展性
——
因应广泛的工业应用需求，DX-1200 提供了 1x M.2 Key E 插槽和 2x Mini PCIe 插槽，除了支持全方位的无线传输方式，如 WiFi、GNSS、4G 和蓝牙外，还可透过 Mini PCIe 扩展槽安装所需的 I/O 扩展卡、影像撷取卡等，以满足不同的应用需求。
高速、可靠的 数据传输
——
为了有效提高视频或大型档案的传输效率，DX-1200 配备最多 4 个高速 10Gbps LAN。而面对多个网络设备的应用环境需求，则提供最多 8x PoE，可以通过同一线缆提供数据和电力，有效降低了布线的难度。
强固设计 稳健可靠
——
DX-1200 的强固性可从其工业级保护设计及不同领域行业认证中体现。除了宽温（-40 ~ 70°C）、宽电压（9 - 48 VDC）、过电压、过电流和静电保护（ESD）等特点，还符合军规冲击震动标准 MIL-STD-810G。 通过国际认可的 UL 62368-1 安全认证，进一步确保产品的安全性和可靠性。 为提供更安心的轨道交通解决方案，还通过 EN 50155 中的电磁兼容（EMC）EN 50121-3-2 标准以及 EN 45545-2 防火标准。
![[ 产品聚焦 ] Cincoze 边缘计算解決方案](data/images/202405/1715829805029028425.jpg)
| Model Name | DX-1200 | |
|---|---|---|
| System | Processor | 13th Generation Intel® Raptor Lake-S Series CPU: 12th Generation Intel® Alder Lake-S Series CPU: |
| Chipset | Intel R680E Chipset | |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | Supports Quad Independent Display | |
| DVI | 1x DVI-I Connector - VGA: 1920 x 1080 @ 60 Hz - DVI-D: 1920 x 1200 @ 60 Hz | |
| DP | 1x DP Connector: 4096 x 2304 @ 60Hz * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| HDMI | 1 x HDMI Connector (3840x2160@30Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | 2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE) - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | 4 x USB 3.2 Gen2x1 (10Gbps), Type A 4 x USB 3.2 Gen1x1 (5Gbps), Type A | |
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| mSATA | 2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |
| RAID | Support RAID 0/1/5/10 | |
| Expansion | Mini PCI Express | 2x Full-size Mini-PCIe Socket |
| M.2 E Key Socket | 1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module | |
| SIM Socket | 1x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | 2x High Speed CMI Interface for optional CMI Module Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Reset Button | 1x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Max. Power Consumption | • 35W CPU - OS Idle Mode: 86.14 W - Full Loading: 201.17 W • 65W CPU - OS Idle Mode: 99.89 W - Full Loading: 274.80 W | |
| Inrush Current (Peak) | • 35W CPU: 4.151 A@24V • 65W CPU: 4.360 A@24V | |
| Physical | Dimension ( W x D x H ) | 242 x 173 x 75 mm |
| Weight Information | 3.05 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / DIN-RAIL / VESA / Side Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 394,488 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | Windows®11, Windows®10 |
| Linux | Ubuntu 22.04 | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-Mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
| Fire Protection | EN 45545-2 | |
| Model No. | Product Description |
|---|---|
| DX-1200-R10 | 13/12th Gen. Intel® Core Series High Performance and Compact Rugged Embedded Computer |
| √ DX-1200 Rugged Computer x1 | √ Power Terminal Block Connector x1 |
| √ CPU Heatsink Pack x1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Screw Pack x 1 | √ Fan Terminal Block Connector x 1 |
| √ Wall Mounting Kit x1 | √ DVI-I to VGA Adaptor x 1 |
| Model No. | Description |
|---|---|
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports |
| CMI-10GLAN05-R10 | CMI Module with 2x Intel 10GbE LAN, RJ45 Port |
| CMI-M12LAN01-R12 | CMI Module with 4 x M12 Intel I210 1GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports |
| CMI-DIO01 | CMI Module with 16DIO (8in 8out) |
| CMI-COM01 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| MEC-COM-M212-TDB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable |
| MEC-COM-M334-TDB9 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
| UB0930-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB1303 | Universal Bracket with 2x DB9 Cutout |
| UB1311 | Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion |
| UB1318 | Universal Bracket with DIO Cutout |
| UB1710-R10 | Universal Bracket with 4x M12 A-Coded Cutout |
| UB1712-R10 | Universal Bracket with 4x RJ45 Cutout |
| UB1728-R10 | Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion |
| SIDE-DX | DX Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan |
