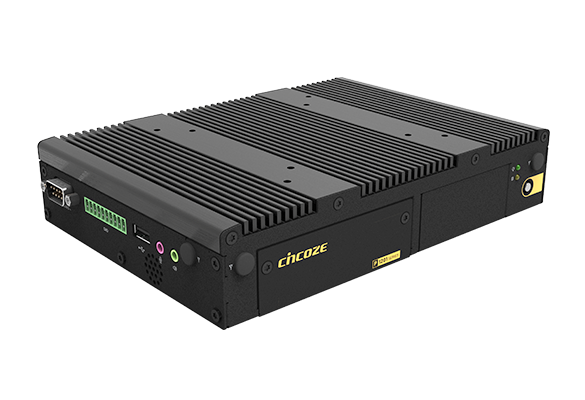

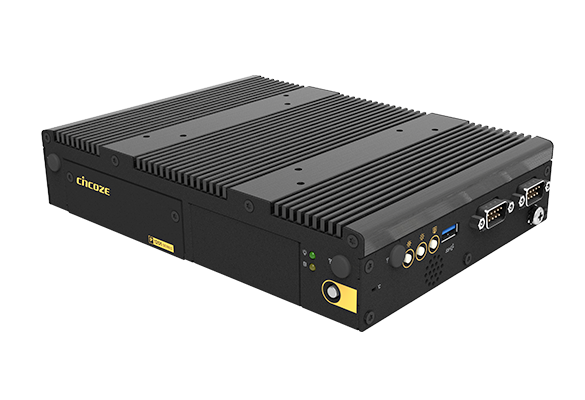

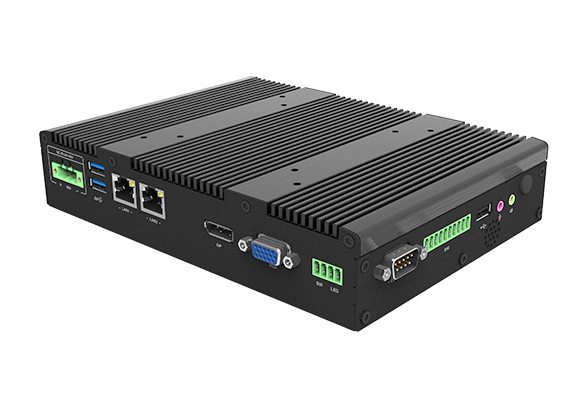

P1201
采用 Intel® Elkhart Lake Atom® x6000E 系列处理器之超薄嵌入式电脑，支持 Convertible Display System（CDS）模块化技术
产品特点
- Intel® Elkhart Lake Atom® x6425E/x6211E 处理器
- 1x DDR4 SO-DIMM
- 1x M.2 Key E Type 2230 Socket for Wireless 模块
- 电源点火感应功能和 PoE 功能的 CFM 技术
- 德承专利 CDS 技术（专利号：M482908）
- 工业环境的 EMC 辐射/抗扰度标准：EN61000-6-4、EN61000-6-2
- 安全认证：UL、cUL、CB 62368-1
产品介绍
P1201 搭载 Intel® Elkhart Lake Atom® 处理器，是一款针对工业物联网边缘运算而设计的无风扇、超薄型嵌入式电脑。灵活的扩展性是特点之一，除原生丰富的 I/O 接口外，也具备 Mini PCIe、M.2 Key E Type 2230 扩展槽，还可利用专属的 CFM 扩展模块增添 PoE/IGN 等功能。机身厚度仅 41.5 mm，适合狭小空间的安装。
一机双用途 (嵌入式电脑 & 平板电脑)，可说是 P1201 的卖点，仅须透过专属的 CDS 专利技术，依据应用需求搭配不同特性的显示屏模块 (display module) 即可成为工业平板电脑 (Industrial Panel PC)、高亮度平板电脑 (Sunlight Readable Panel PC) 或是开放式架构平板电脑 (Open Frame Panel PC)，满足多元化的显示运算需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
CPU 性能大幅提升
——
P1201 可搭载 Intel® Elkhart Lake 平台 Atom® x6425E 四核处理器，Elkhart Lake 与上一代 Apollo Lake 相比，CPU Single - Thread 效能提升 1.7 倍，Multi-thread 效能提升 1.5 倍。图形效能也提升了 2 倍。且支持高达 3200 MHz 的 DDR4 32GB 内存。
超薄机身易安装
——
P1201 具有超薄紧凑的设计，尺寸为 204.5 x 149 x 41.5 (mm)。超薄机身可灵活安装在各式狭小的应用环境，如设备机台、控制机箱或 AGV 等，作为智能工厂搜集数据及移动型边缘运算等应用。
一机双用 (One Computer / Two Purposes)
——
P1201 不但是一台嵌入式电脑，还能透过德承专利 CDS (Convertible Display System) 技术，搭配显示屏模块 (CV-100 系列)、阳光下可视模块 (CS-100 系列)、开放式架构显示屏模块 (CO-100 系列)组成不同特性的平板电脑。
Patent No. M482908
完整的无线传输方案
——
P1201 除了可透过 M.2 key E 插槽支持 WIFI 6，提供更快速的传输外，亦可搭配蓝芽模块。而 Mini PCIe 插槽则可支持 GPS、4G 模块，可说完整覆盖了全方位的无线传输需求。
耐震与工业级 EMC 保护
——
P1201 大多安装在设备、机柜与移动装置中，耐震能力与电磁兼容性 (EMC) 成为稳定持续运作的主要考验。P1201 除通过不同振动与冲击的可靠度测试，如随机振动 (5G)、正弦振动 (1G) 与耐冲击 (50G) 外，并符合严苛的工业环境的 EMC 检测标准 (EN61000-6-4 及 EN61000-6-2)，与产品安全性的 UL 认证，体现高规格的工业等级防护。
视频
相关报导
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
P1201
| Model Name | P1201 | |
|---|---|---|
| System | Processor | • Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W) |
| Memory | • 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC) | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| CDS | 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz | |
| VGA | 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1x Mic-in, Phone Jack 3.5mm | |

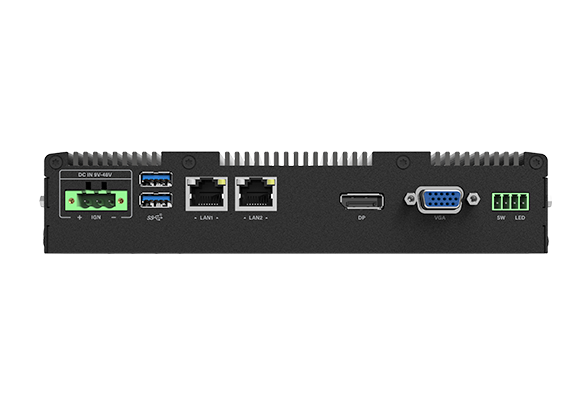

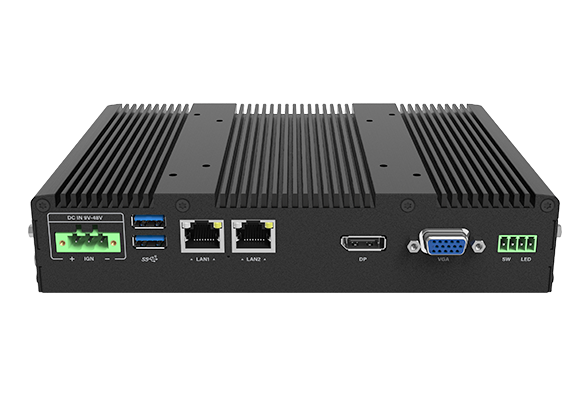

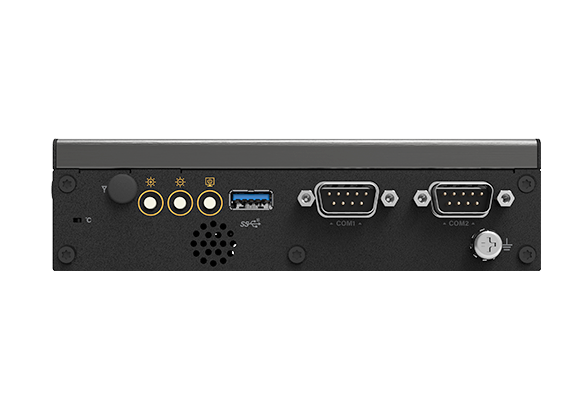

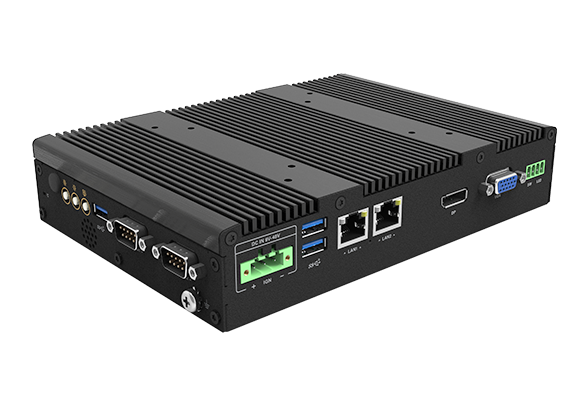

| I/O | LAN | 2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210 |

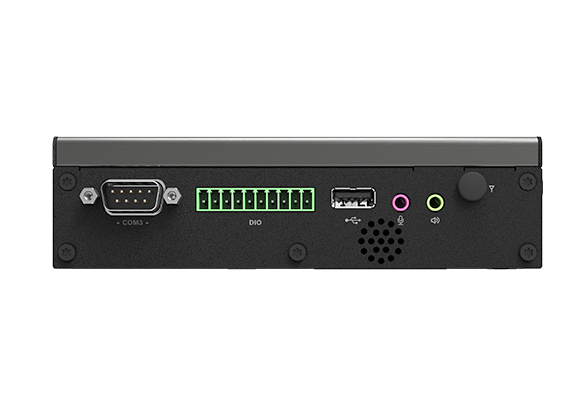

| COM | 3x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A | |
| DIO | 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block | |
| Storage | SSD/HDD | 1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0) |
| mSATA | 1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| Expansion | Mini PCI Express | 1x Full-size Mini-PCIe Socket |
| SIM Socket | 1 x SIM Socket | |
| M.2 | 1x M.2 Key E Type 2230 Socket, Support Wireless Module | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion | |
| CDS (Convertible Display System) Interface | 1x CDS Interface for Convertible Display Module | |
| Other Function | Clear CMOS Switch | 1x Clear CMOS Switch |
| Reset Button | 1x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| OSD Button | LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, HDD LED, Temperature LED | |
| Power | Power Button | 1x ATX Power On/Off Button |
| Power Mode Switch | 1x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | Windows®10 |
| Linux | Supports by project | |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 41.5 mm |
| Weight Information | 1.54 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | 283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| P1201-X6425E-R10 | Intel® Atom® x6425E Quad Core Slim Embedded Computer with CDS Technology |
| P1201-X6211E-R10 | Intel® Atom® x6211E Dual Core Slim Embedded Computer with CDS Technology |
| √ P1201 Slim Embedded Computer x1 | √ Power Terminal Block Connector x1 |
| √ Thermal Pad (for CPU Thermal Block) x 1 | √ Remote Function Terminal Block Connector x1 |
| √ Wall Mounting Kit x1 | √ DIN Rail Mounting Kit x1 |
| √ Screw Pack x1 | √ DIO Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
