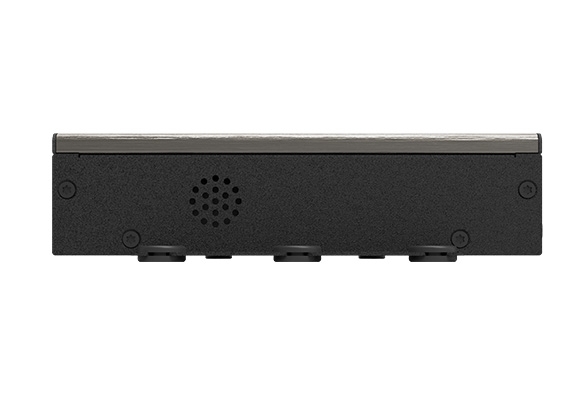

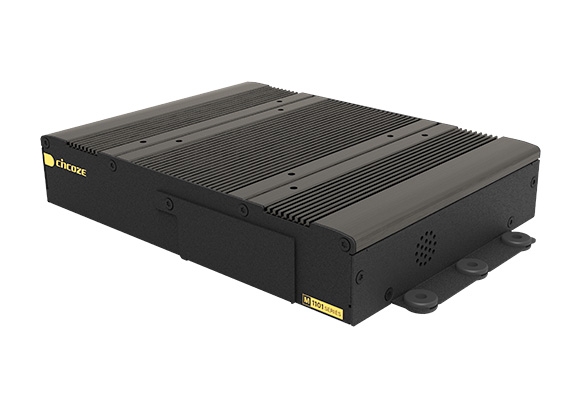

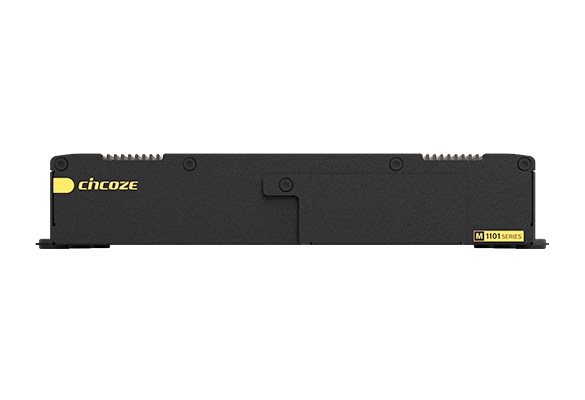

产品介绍
身为支持 CDS (Convertible Display System) 专利技术的显示器模块 (Monitor Module) ，M1101 能够与 CDS 显示屏模块 (Display Module) 搭配组合成不同特性的触控显示器，提供多面向的选择，如严苛环境下适用的工业触控显示器、适合户外高亮度的阳光下可视触控显示器以及能完美整合于设备机台的开放式架构触控显示器等。此外，M1101 除了支持数字信号和模拟信号的输入接口，包括 HDMI、DisplayPort 和 VGA，并具备多语言 OSD 屏幕调节功能，并提供 1 个 USB 和 1 个 COM 的输入接口以支持电阻或电容式的触摸功能。
Product Category >>>> Modular Panel PC & Industrial Monitor
3 款显示屏模块 可随意搭配
——
M1101 支持专属 CDS 专利技术，搭配不同显示屏模块搭配成为三种不同特性显示器 : 工业触控显示器、阳光下可视触控显示器，以及开放式架构的触控显示器
Patent No. M482908
3 种显示输入 可选择
——

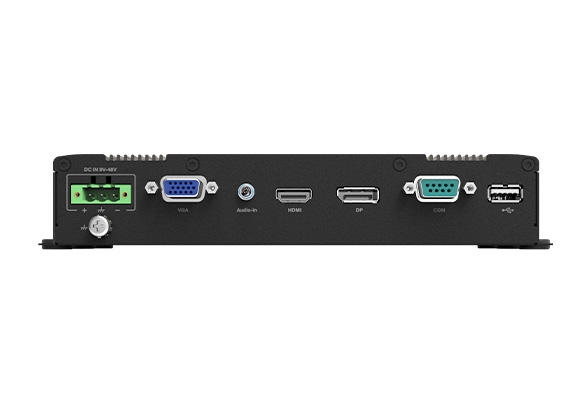

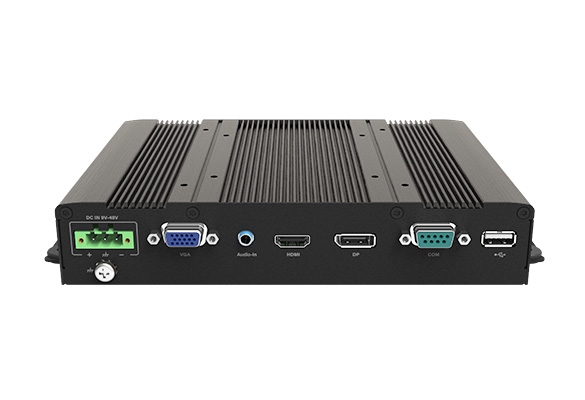

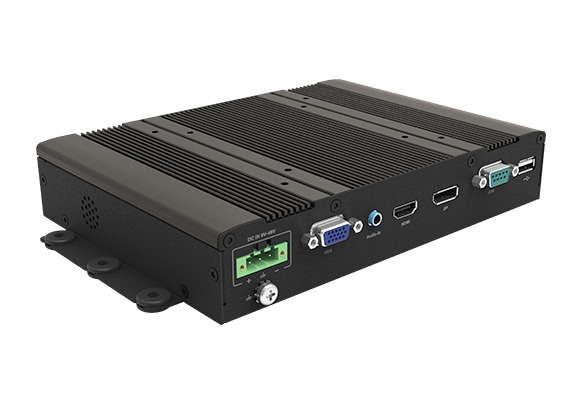

M1101 提供多种显示输入接口，包含数字信号的 HDMI 与 Display Port 以及模拟信号输入的 VGA，以满足工业现场端的不同显示需求
3 大国际标准 行业认证
——
M1101 通过多项高规格的国际认证，如工业级 EMC 保护 (EN 61000-6-2/4)、防震抗冲击保护 (EN 60068-2) 以及高规格安全性 UL / c-UL 62368-1 安全性，为稳定性与安全性做最严格的把关
详细规格
M1101
| Model Name | M1101 | |
|---|---|---|
| Graphics | HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) | |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) | |
| Audio | Audio input | 1x Audio Line in, Phone Jack 3.5mm |
| I/O | COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A | |

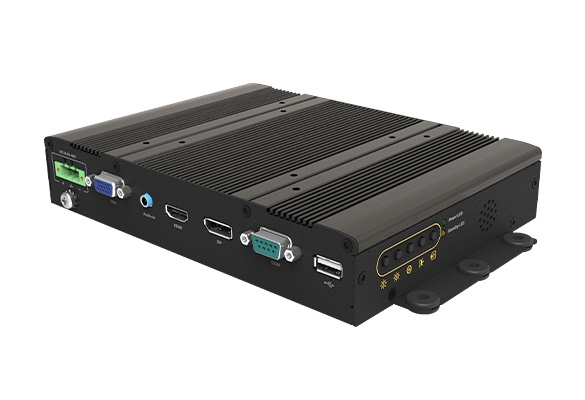

| Other Function | OSD Button | Menu, Auto, LCD On/Off, Brightness Up, Brightness Down |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, Standby LED | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | VESA / CDS Mounting | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| MTBF | 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | Operating Temperature | -20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) | |
| Vibration | • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| M1101-R10 | Monitor Module with 1x DisplayPort, 1x HDMI, 1x VGA |
| √ M1101 Monitor Module x1 | √ Power Terminal Block Connector x1 |
| √ USB cable x1 | √ Screw Pack x1 |
| √ VGA cable x1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
